EAN code8595057620582
Customs code39259020
წონა0,0947 kg/m
Colourwhite
MaterialPVC
Leadless materialyes
Self-extinguishing30 s
Temperature resistance-5 - 60 °C
Flaming loop test850 °C
Mechanical protectionIK06
Impact resistance0,5 J
Antibacterialyes
Width20 mm
Height10 mm
Length2 m
Inside area140 mm2
Allowance
The trunkings are available in lengths with a tolerance of ± 0.5% at 20 ° C.
Use
they are resistant to aggressive and chemical environments. They do not resist UV radiation, they are not suitable for outdoor use.
Area with explosion danger
Electro-installation trunking (insertive, rectangular, halogen-free) and parapet canals with accesories can be installed in zones with explosion hazard of flammable gases (zone 2) and with the risk of explosion of flammable dusts (zone 22), installation must comply with EN 60079-14.
Fire reaction class of underlying materialA1 - F
Protection typesIP 40
StandardsČSN EN 50 085-1
Package descriptionpackage - cardboard
With protective foilyes

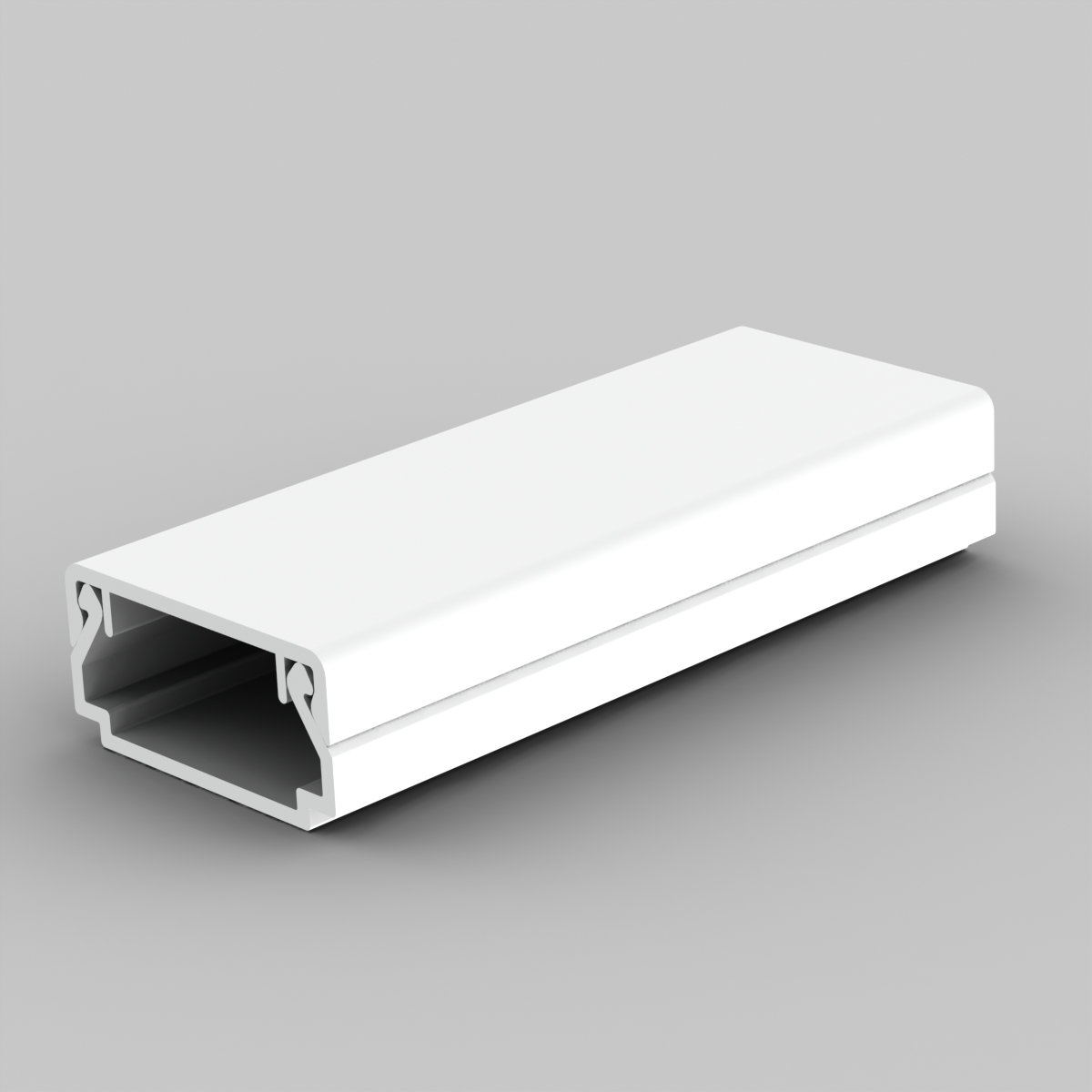

Standard shape. Designed for wall or ceiling mounting. Double lock on lid increasing the trunking’s rigidity and ensuring stronger cover fixation.
