Mounting profile head

მიმაგრებული და სერთიფიკატები

illustrative picture

Datový list
HMP41_EN

Certifikace
Declaration RoHS
Declaration REACH
Certificate ESČ
Conformity declaration

EAN code	8595568932549
Customs code	73269098
წონა	1,0000 kg/pcs
Surface finish	Hot Dip Galvanized
Thickness of metal sheet	5 mm
Dimension A	120 mm

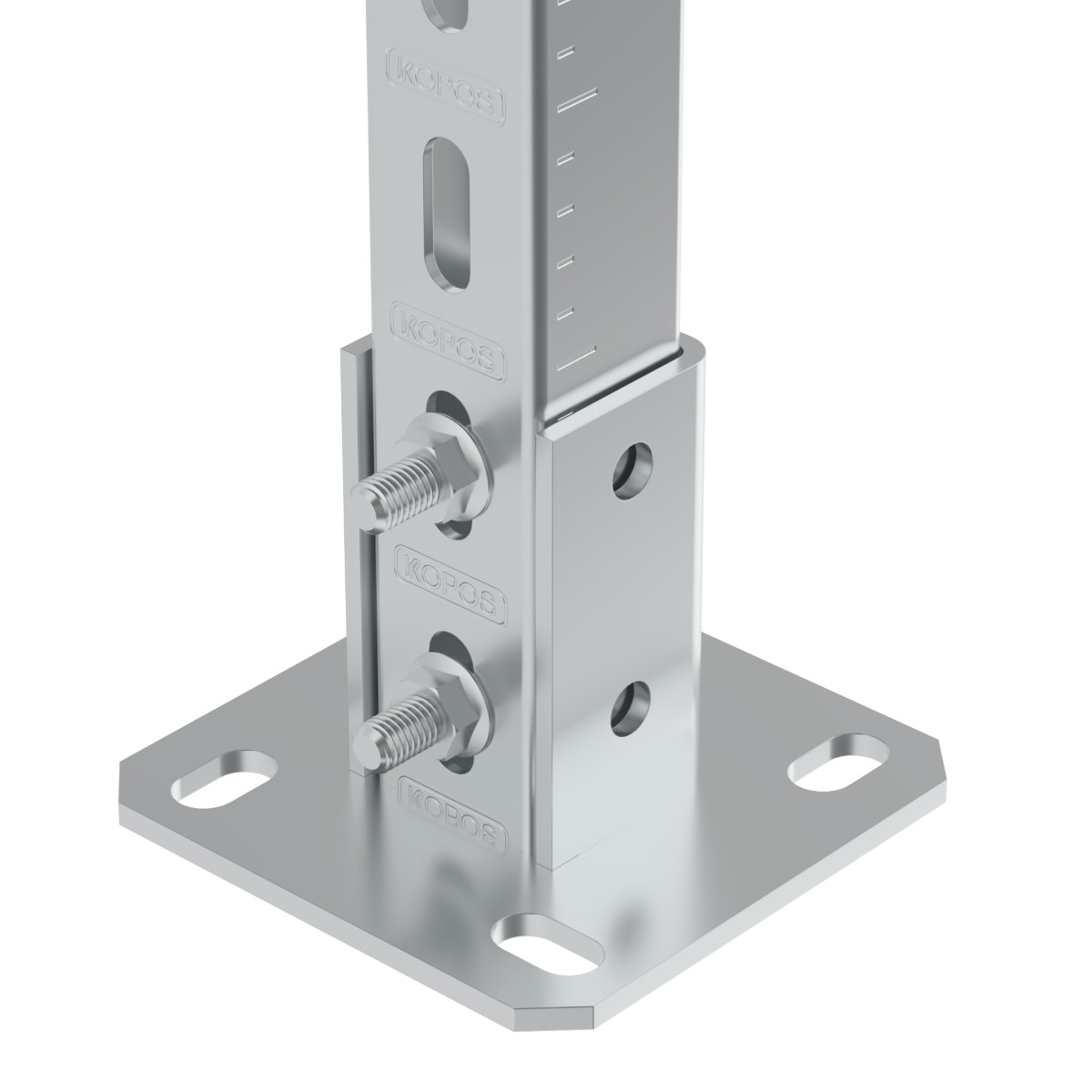

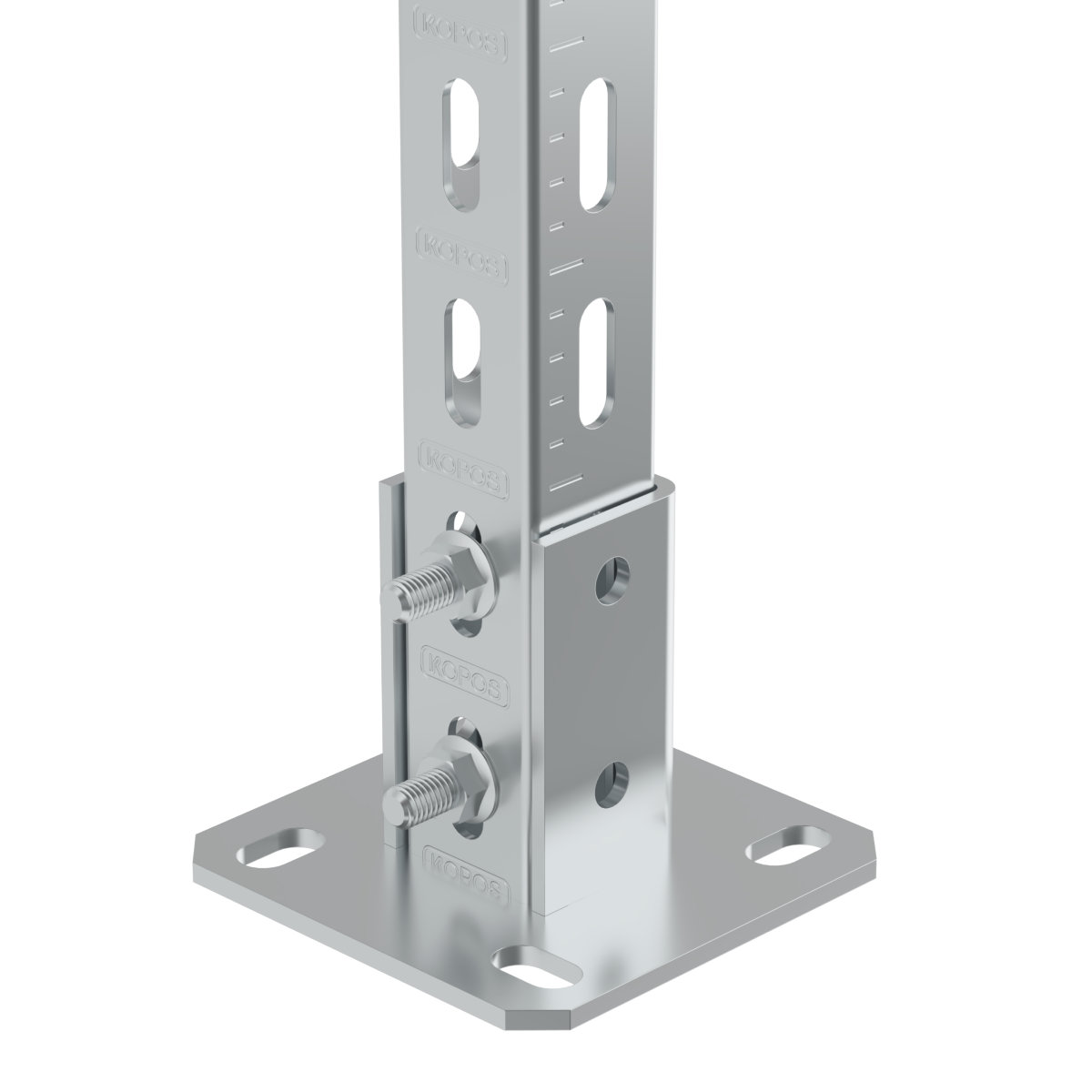

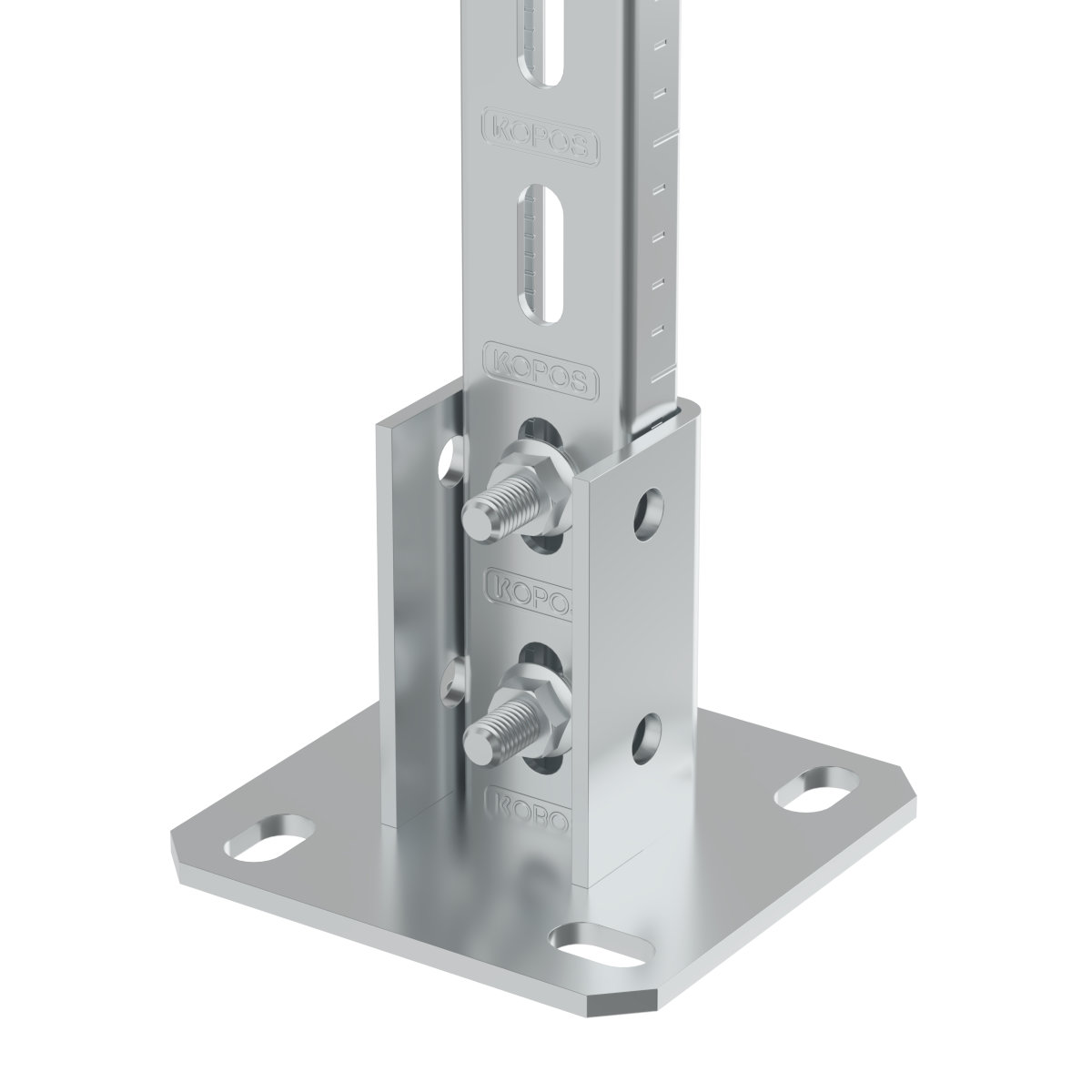

HMP 41_F head is designed for fixing of MP 41X41 or MP 41X21 mounting profiles to the ﬂoor or ceiling. The mounting profile MP 41X41 is fixed to the head with two S 10X70 screws, M 10 nuts and PD 10 washers. The mounting profile MP 41X21 is fixed to the head with two S 10X50 screws, M 10 nuts and PD 10 washers. By combining the head and the mounting profile, it is possible to create the ceiling profile (holder) of any length.
