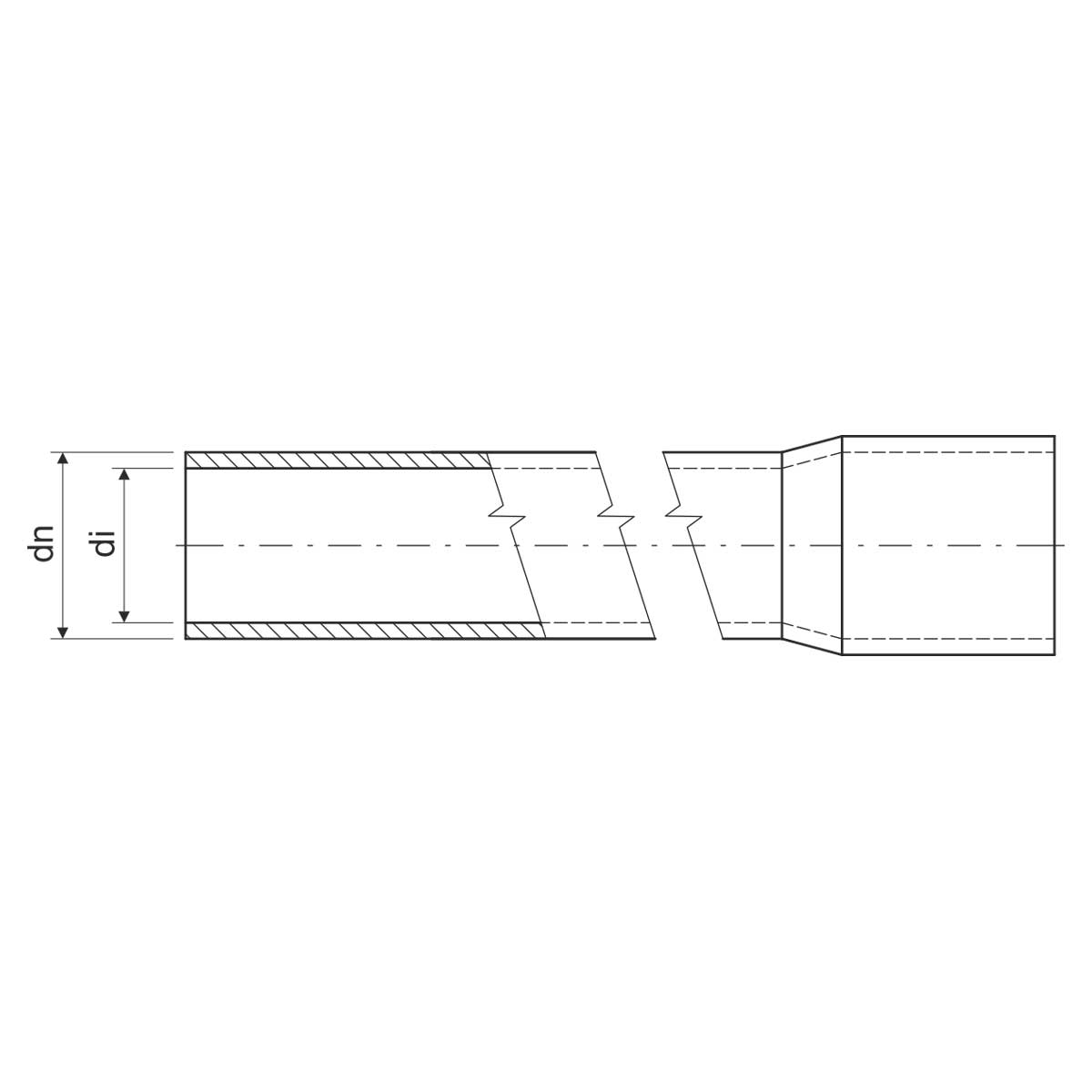

illustrative picture
To download 3D models, please login or create an account and request access.
tuha320_EN
| EAN code | 8595568934314 |
| Customs code | 39172390 |
| წონა | 0,0923 kg/m |
| Colour | black |
| Material | PVC |
| Self-extinguishing | 30 s |
| Temperature resistance | -25 - 60 °C |
| Mechanical resistance | 320 N/5cm |
| Mechanical protection | IK06 |
| Length | 3 m |
| Outside diameter | 20 mm |
| Inner diameter (min.) | 17,4 mm |
| Allowance | length ± 10 mm |
| Manufactures´s recommendations The producer recommends the installation of plastic pipes at temperatures above 0 ° C. | |
| Area with explosion danger Can be installed in a zone with the danger of explosion of flammable gases and vapors of zone 2 and into the zone of danger of explosion of flammable dusts of zone 22. | |
| Fire reaction class of underlying material | A1 - F |
| Sorting code | 22411 |
| Standards | ČSN EN 61386-1 ed.2 |
Rigid socket pipes are fireproof-tested.
