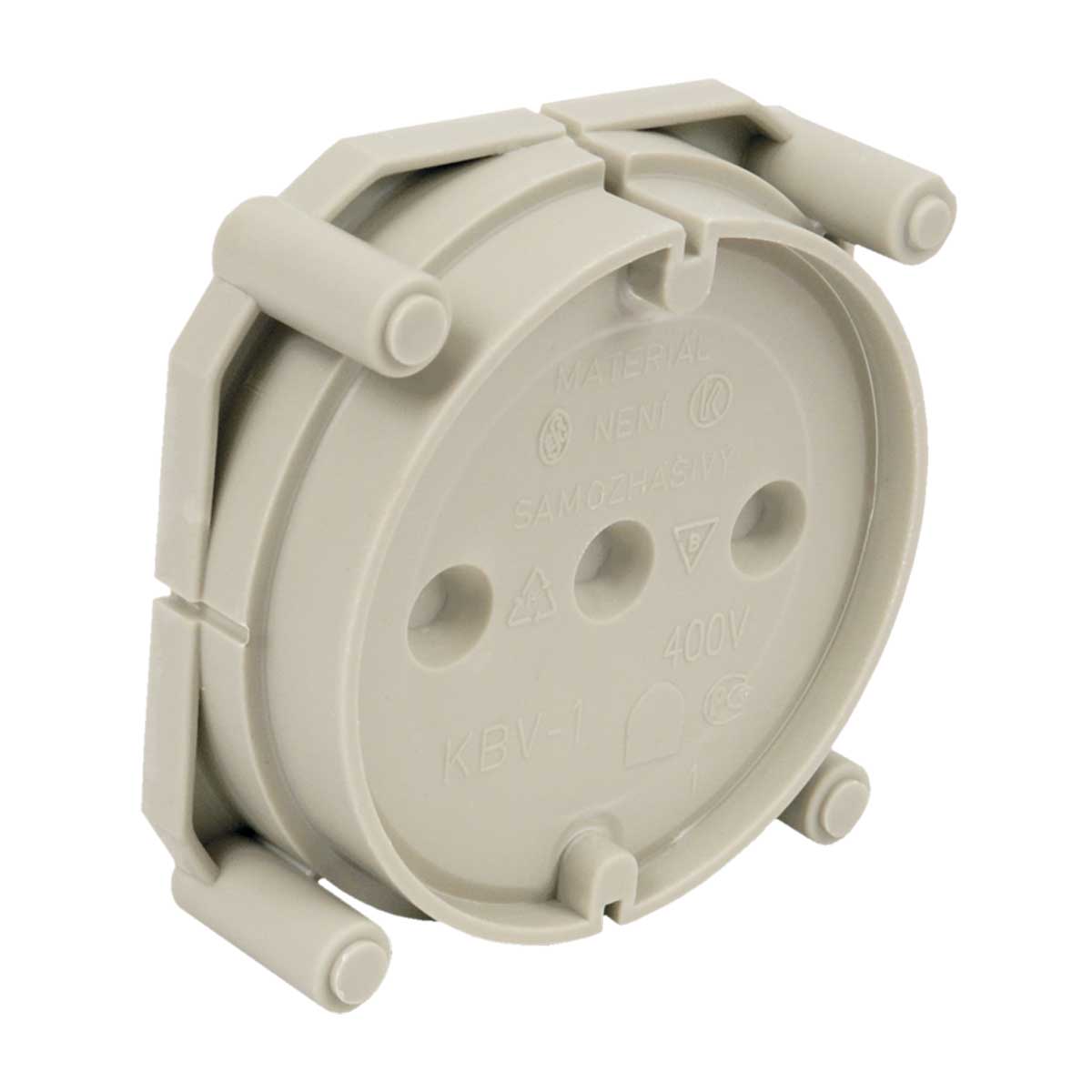

illustrative picture
To download 3D models, please login or create an account and request access.
KBV1_EN
| EAN code | 8595057632509 |
| Customs code | 39259080 |
| წონა | 0,0323 kg/pcs |
| Colour | light grey |
| Material | PP |
| Halogen free material | yes |
| Leadless material | yes |
| Rated voltage | <= 400 V |
| Temperature resistance | -5 - 60 °C |
| Short term temperature resistance | 90 °C |
| Flaming loop test | 650 °C |

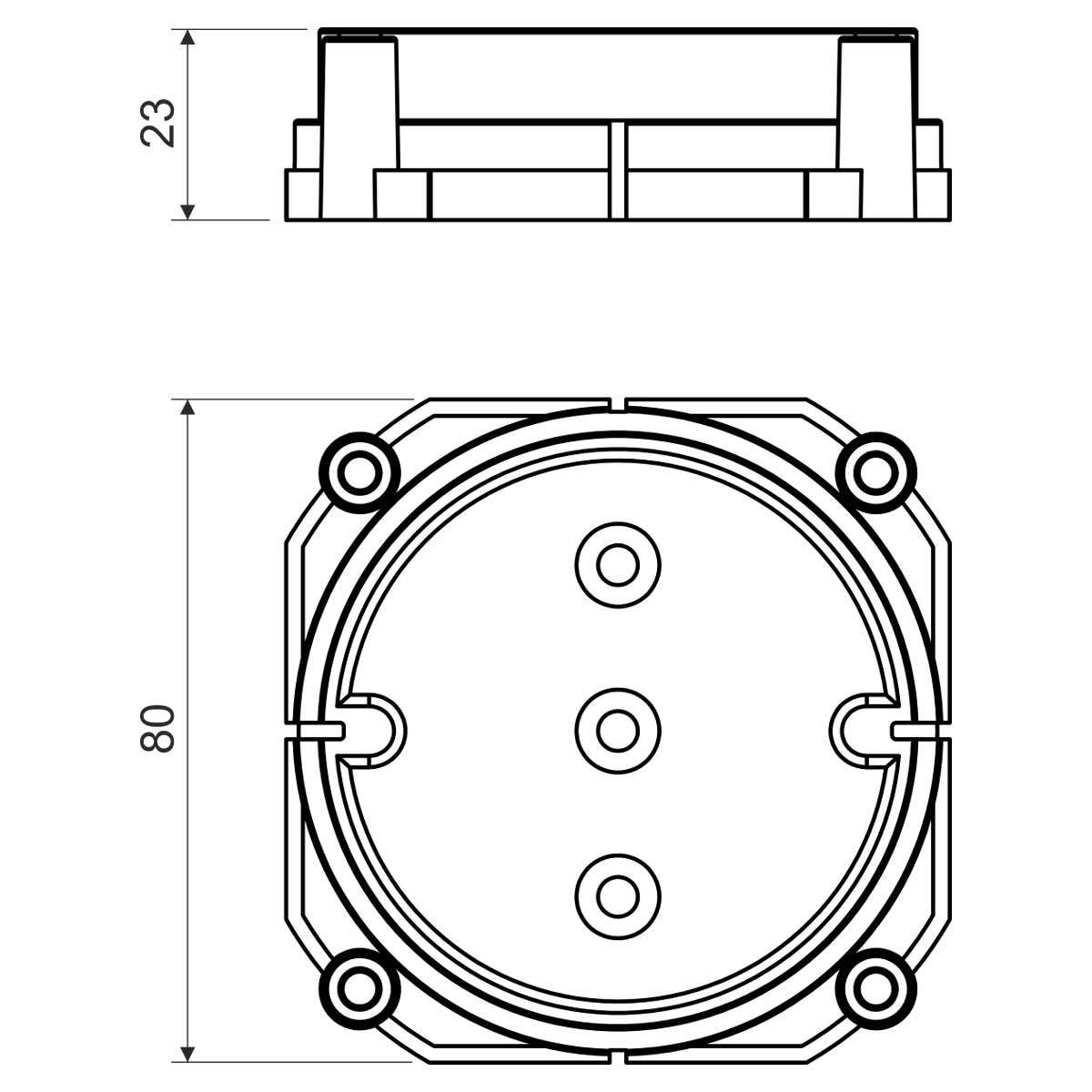

| Width | 80 mm |
| Height | 80 mm |
| Depth | 23 mm |
| Fire reaction class of underlying material | A1 |
| Allows to install double-socket | yes |
| Standards | ČSN EN 60 670-1 |
| Package description | packed in shrink foil |
The lid can be attached to the formwork using nails. After hardening of the concrete, remove part of the rip-out part of the lid, making space for mounting. When applying additional stucco, blind cover ZV 68 can be used to cover it. To adjust the height when applying additional plaster, you can use extending frame NR 68/6, NR 68/100 (KBV-1), or NRB 60/12 and NRB 60/24 (KBV-2). For the double-socket the KBV-1 lid is suitable.
