| EAN code | 8595568937865 |
| Customs code | 72169180 |
| წონა | 1,9000 kg/m |
| Surface finish | Magnelis® |
| Temperature resistance | -50 - 150 °C |
| Width | 300 mm |
| Height | 11 mm |
| Length | 2000 mm |
| Funcionality in fire | P90-R, E90, PS90 |
| Standards | ČSN EN 61537 |
| Fire resistance standards | ČSN 73 0895, DIN 4102-12, STN 92 0205 |
| Thickness of metal sheet | 0,75 mm |

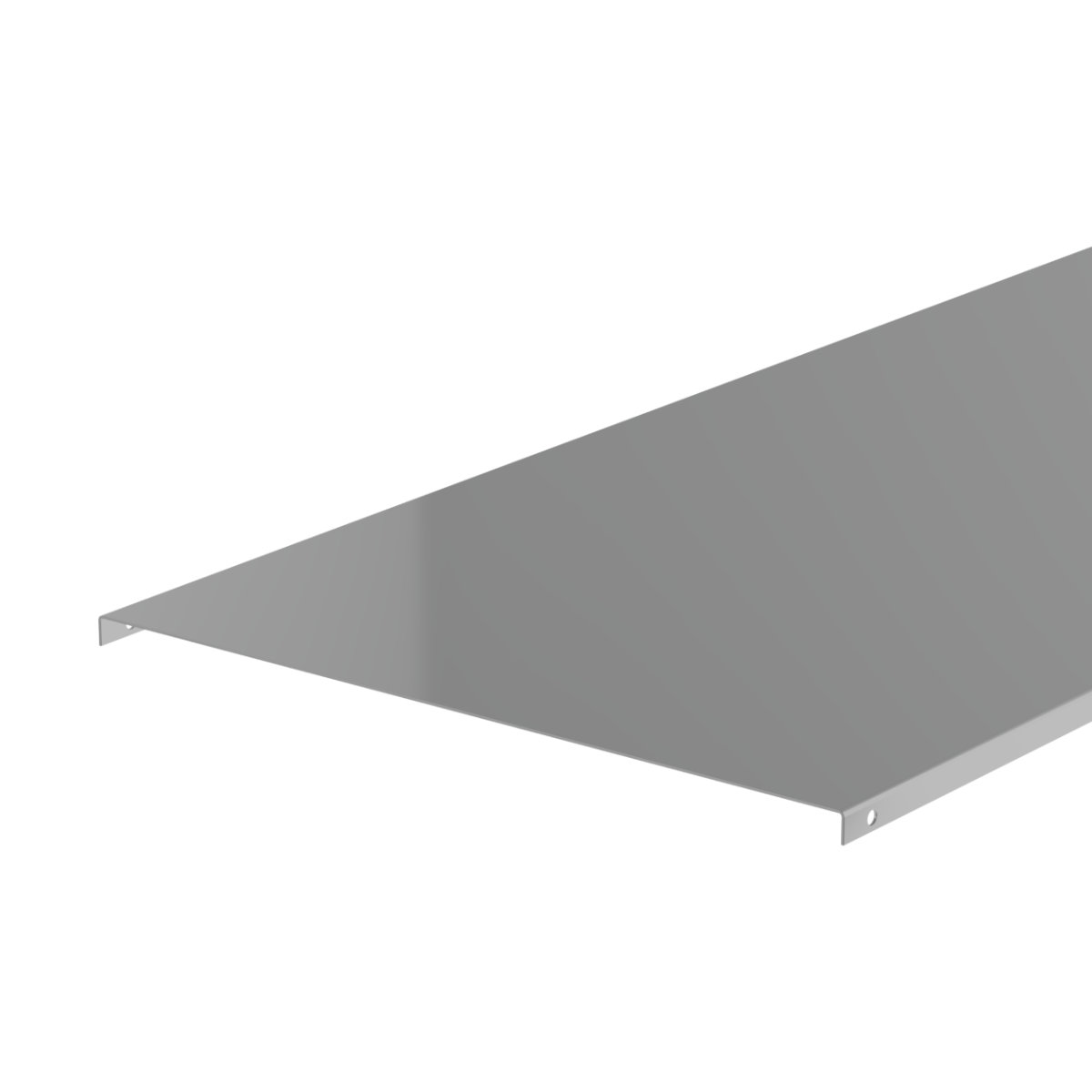

The standard length of the cable tray cover is 2 m. Stated sheet metal thickness is delivered as standard. Cover with thicker sheet metal can be delivered without prior notice. The fixing of the cover to the tray is done using the cover fixture VU (2 pcs per meter).
Note for system with maintained functionality in fire:
You find more information in the catalogue Systems with maintained functionality in fire.
