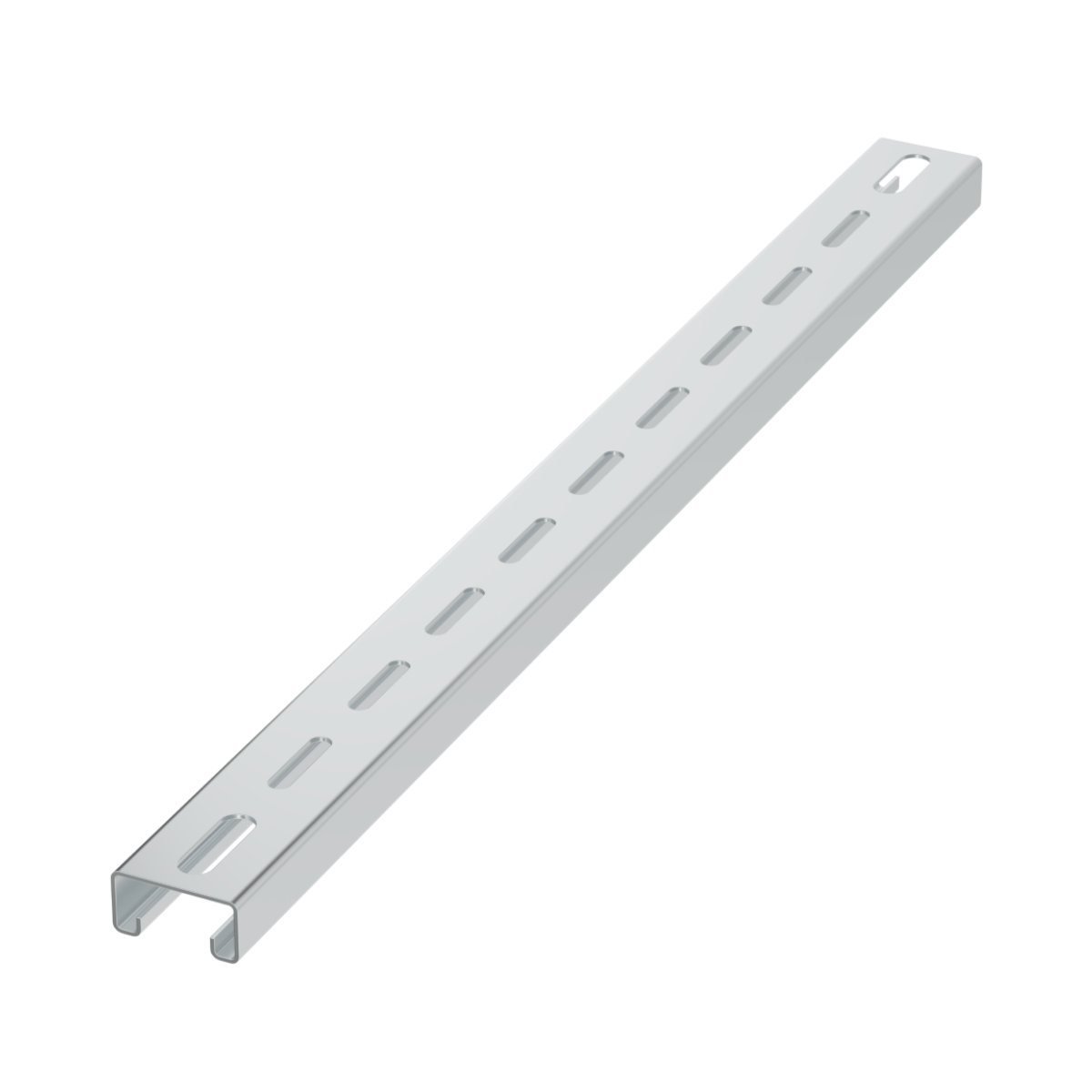

illustrative picture
To download 3D models, please login or create an account and request access.
NP_450-650_EN
| EAN code | 8595568939548 |
| Customs code | 72169180 |
| წონა | 0,6199 kg/pcs |
| Surface finish | Magnelis® |
| Temperature resistance | -50 - 150 °C |
| Standards | ČSN EN 61537 |
| Thickness of metal sheet | 1,5 mm |
| Maximum load | 150 kg |
| Dimension A | 550 mm |
| Dimension B | 41,5 mm |
| Dimension C | 21 mm |
| For width of cable tray | 500 mm |
| Outer holes | 11x35 mm |
| Inner holes | 7x32 mm |
Suitable for creating of beam for cable traces to be carried on thread rods. The load bearing profile is fixed by using two threaded rods ZT 10 + nut M 10 + washer PD 10.
