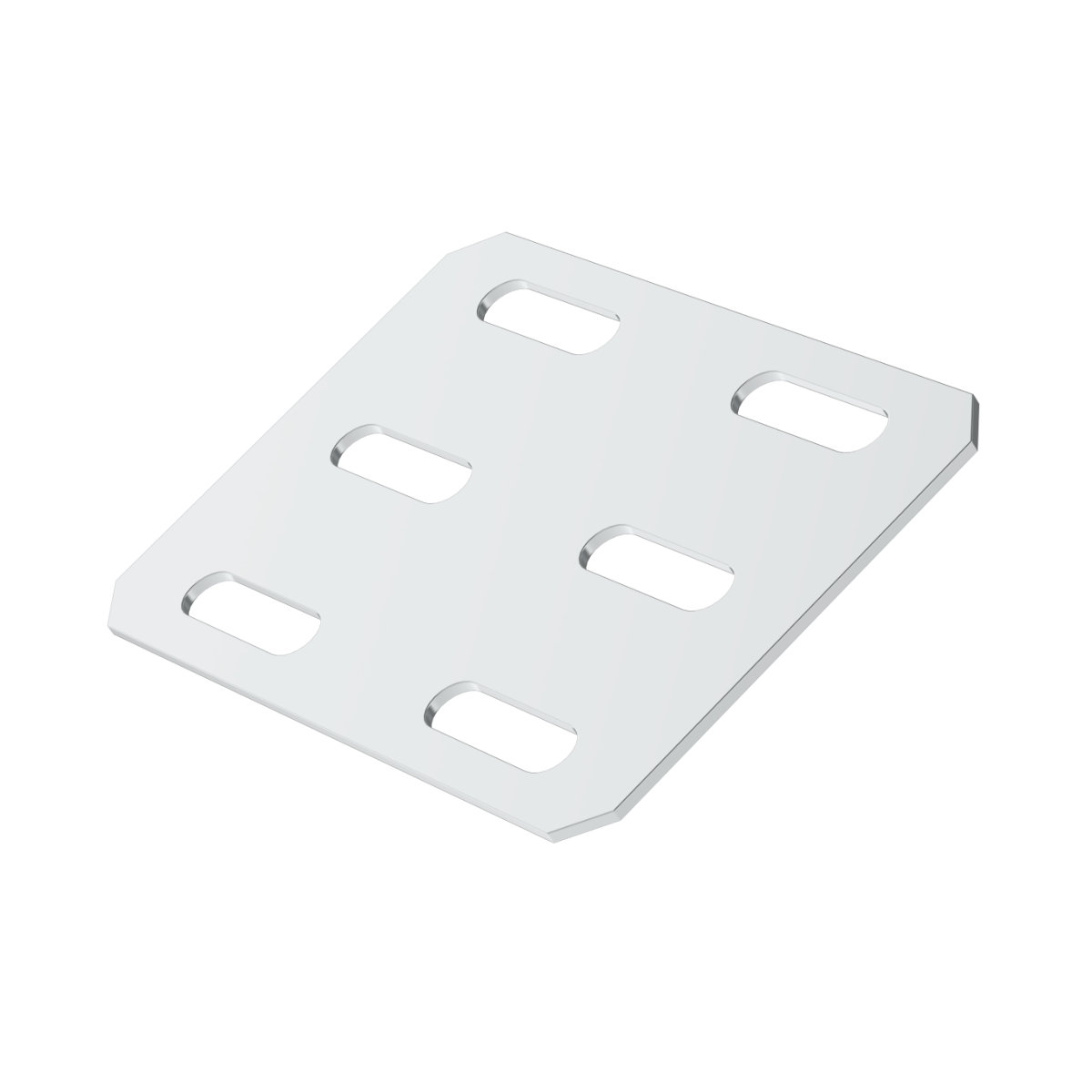

illustrative picture
To download 3D models, please login or create an account and request access.
DV_EN
| EAN code | 8595568939401 |
| Customs code | 73269098 |
| წონა | 0,0691 kg/pcs |
| Surface finish | Magnelis® |
| Temperature resistance | -50 - 150 °C |
| Funcionality in fire | P90-R, E90, PS90 |
| Standards | ČSN EN 61537 |
| Fire resistance standards | ČSN 73 0895, DIN 4102-12, STN 92 0205 |
| Thickness of metal sheet | 1,5 mm |
| Quantity of screws for connecting | 4 |
| Dimension H | 68 mm |
| For width of cable tray | 75 mm |
Is used for reinforcing the tray connections without integrated coupling. It is fastened by the bolts NSM 6X10 to the tray bottom.
Note for system with maintained functionality in fire:
You find more information in the catalogue Systems with maintained functionality in fire.
