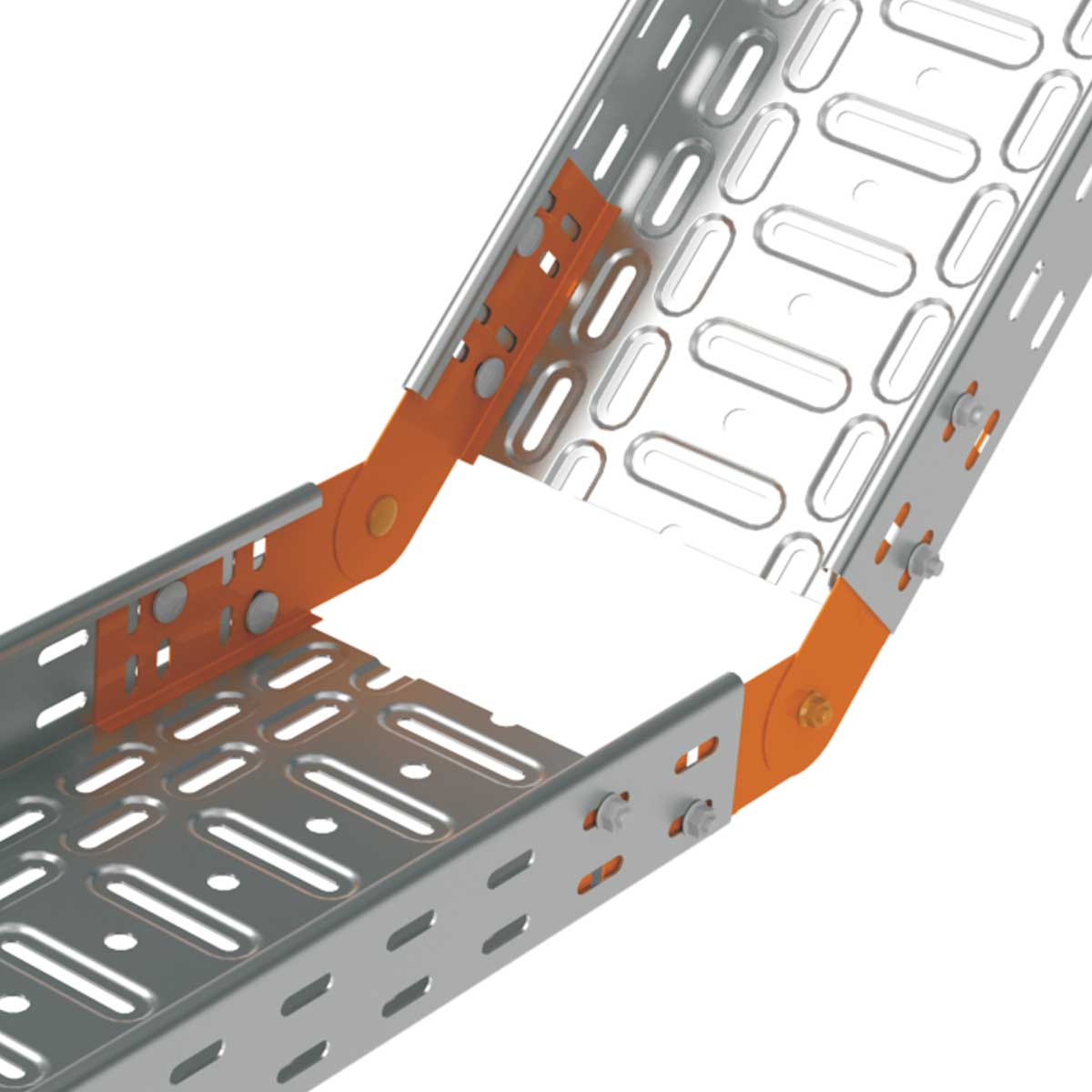

illustrative picture
To download 3D models, please login or create an account and request access.
SK_EN
| EAN code | 8595568939326 |
| Customs code | 73269098 |
| წონა | 0,0443 kg/pcs |
| Surface finish | Magnelis® |
| Temperature resistance | -50 - 150 °C |
| Standards | ČSN EN 61537 |
| Thickness of metal sheet | 0,8 mm |
| Quantity of screws for connecting | 4 |
| Dimension H | 28 mm |
| For height of cable tray | 35 mm |

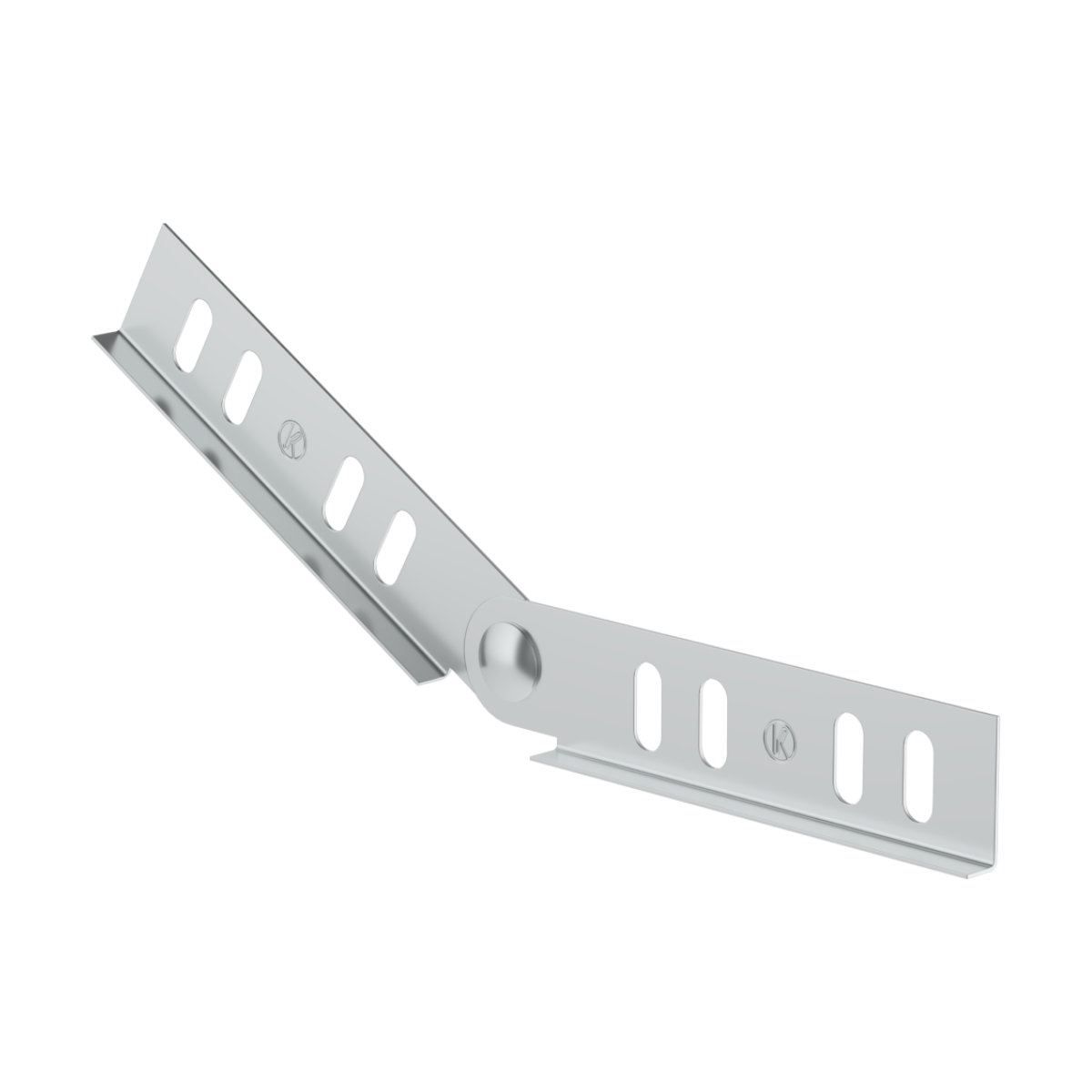

For the connection of the hinged joint to the tray there are used the bolts NSM 6X10. The joint is delivered in 1 piece per packing, 2 pcs are needed to make a bend of the line.
