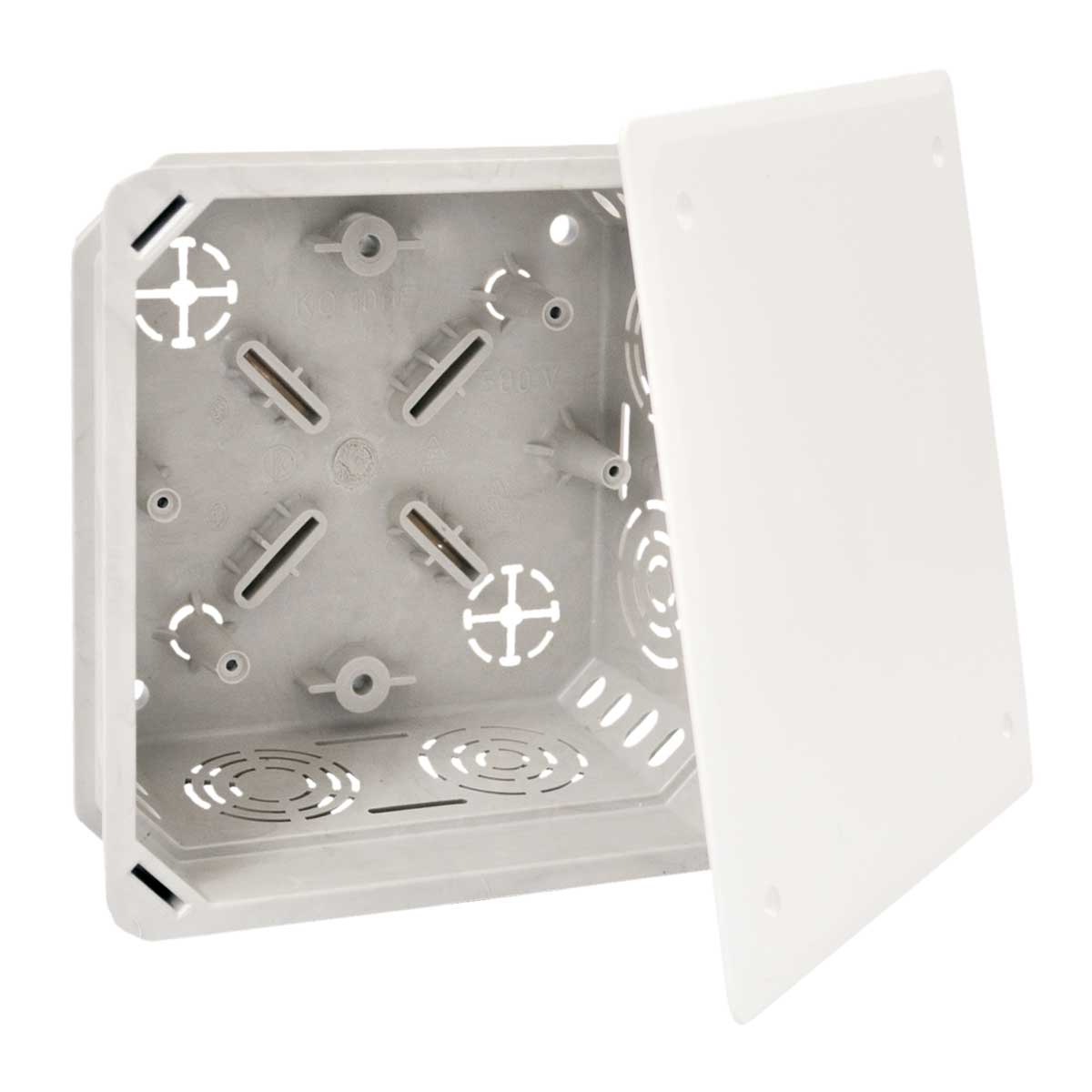

illustrative picture
To download 3D models, please login or create an account and request access.
KO100E_EN
| EAN code | 8595057612655 |
| Customs code | 39259080 |
| წონა | 0,1870 kg/pcs |
| Material | PVC |
| Leadless material | yes |
| Self-extinguishing | 30 s |
| Rated voltage | <= 400 V |
| Rated current | <= 16 A |
| Temperature resistance | -5 - 60 °C |
| Flaming loop test | 850 °C |
| Width | 128 mm |
| Height | 128 mm |
| Depth | 66 mm |
| Fire reaction class of underlying material | A1 - D |
| Standards | ČSN EN 60 670-1 |
| Package description individual boxes with lids individually packed in shrink foil and provided with a label, screws inserted in package | |
large number of knockouts for inserting cables and pipes. Possibility to install the support trunking TS 35. Possibility to set the lid in and horizontal position. Possibility to break the sidewall for easier cable handling.
