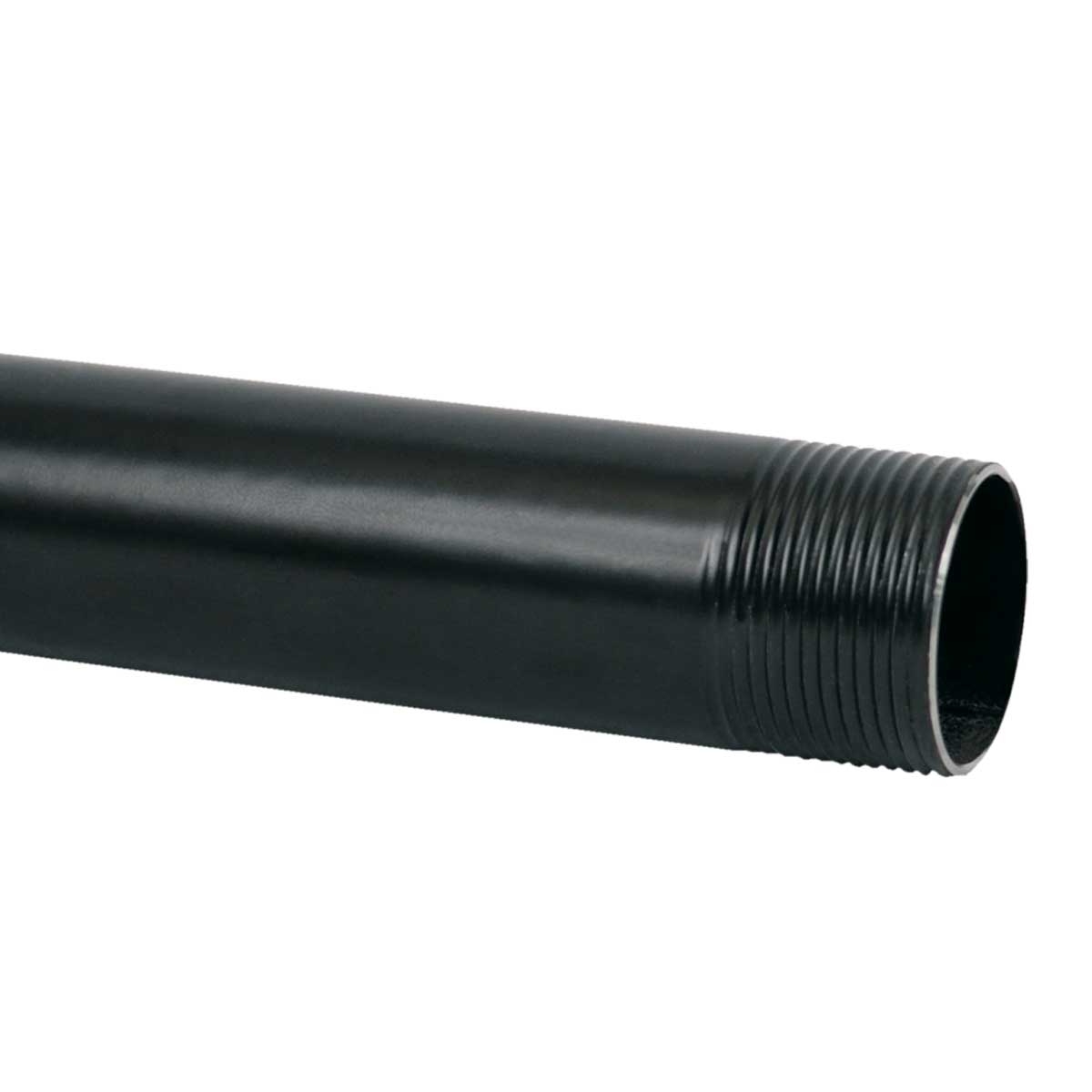

illustrative picture
trubky60xx_CSN_PO_EN
| EAN code | 8595057618664 |
| Customs code | 73063041 |
| წონა | 0,6500 kg/m |
| Colour | black |
| Material | steel |
| Surface finish Varnished: Galvanized steel Sendzimir powder coated, color RAL 9005 black, medium corrosion resistance - Group 2 | |
| Temperature resistance | -60 - 250 °C |
| Mechanical resistance | 1250 N/5cm |
| Mechanical protection | IK10 |
| Length | 3 m |
| Outside diameter | 22,5 mm |
| Inner diameter (min.) | 20,3 mm |
| Funcionality in fire | P90-R, E90, PS90 |
| Thread type | P16 |
| Sorting code | 44561 |
| Standards | ČSN EN 61386-1 ed.2 |
| Fire resistance standards | ČSN 73 0895, DIN 4102-12, STN 92 0205 |
| Max. load for fire resistance | 10 kg |
The pipes are suitable for mechanical protection of conductors and cables. Threaded conduits are supplied with one coupler. While using pipes along with bushing 4813/P - 4842/P and 4913 - 4942 is scope of application only -5 - +60 °C.
Note for system with maintained functionality in fire:
max. 1 piece of cable in the pipe
You find more information in the catalogue Systems with maintained functionality in fire.
