BV_EN
| EAN code | 8595057621985 |
| Customs code | 39259080 |
| წონა | 0,0070 kg/pcs |
| Colour | grey |
| Material | PP |
| Halogen free material | yes |
| Leadless material | yes |
| Temperature resistance | -5 - 60 °C |
| Short term temperature resistance | 90 °C |
| Flaming loop test | 650 °C |

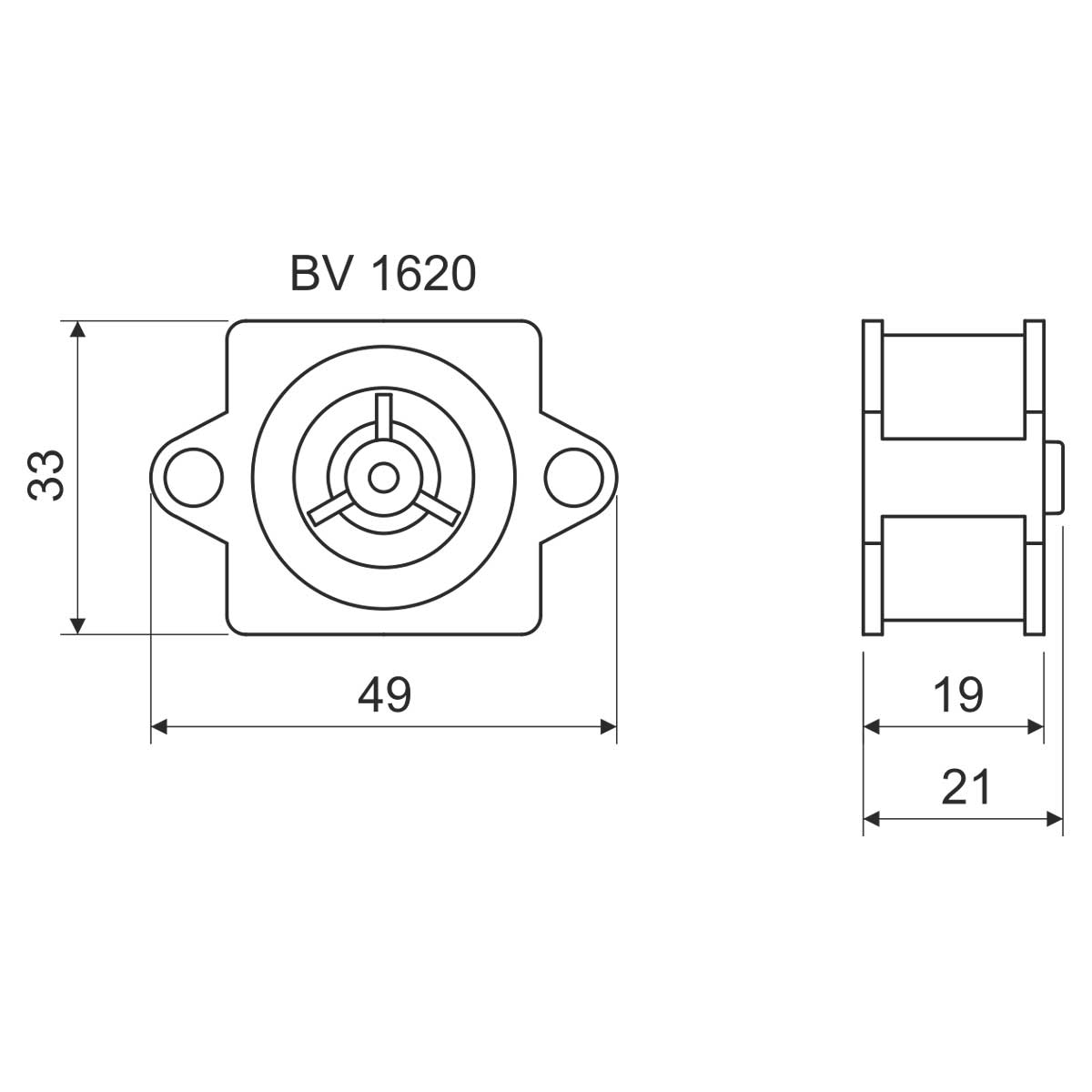

| Dimension | 33 x 49 x 19 |
| Use | for pipes demension EN 16, 20 |
| Fire reaction class of underlying material | A1 |
The glands are fixed to the formwork using nails. After hardening of the concrete mixture, formwork is removed together with front lid. To introduce the pipe, use BK-type fittings as per pipe dimension: BV 1620 - fittings BK 16, BK 20
