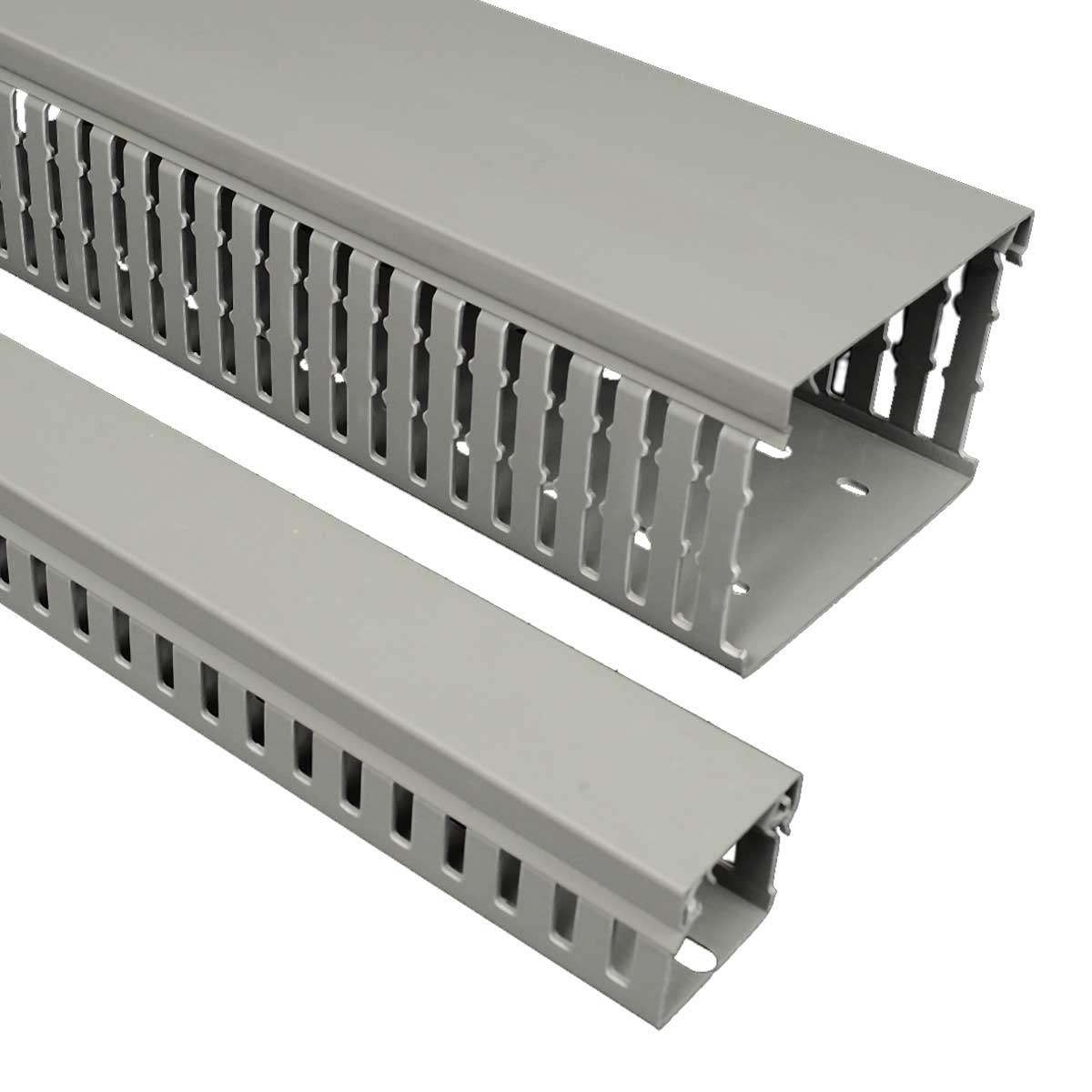

illustrative picture
RK_DIN_EN
| EAN code | 8595057623736 |
| Customs code | 39259020 |
| წონა | 0,6900 kg/m |
| Colour | grey |
| Material | PVC |
| Self-extinguishing | 30 s |
| Temperature resistance | -20 - 60 °C |
| Length | 2 m |
| Outside dimension | 75 x 75 |
| Inner dimension | 70 x 70 |
| Number of conductors when 50% at 0,75 mm² and diameter 2,8 mm | 398 |
| Number of conductors when 50% at 1,0 mm² and diameter 2,9 mm | 371 |
| Number of conductors when 50% at 1,5 mm² and diameter 3,2 mm | 305 |
| Note | perforated DIN in three rows up to 75 mm width |
| Fire reaction class of underlying material | A1 - F |
Optimal closing, fixed cover. Easy installation and removal. Trunkings are supplied with cover. Rib can be easily breaked out at the bottom of the trunking. For construction height 60 mm and above there are shaped ribs. Rib width 6 mm, cut-out width 4 mm.
