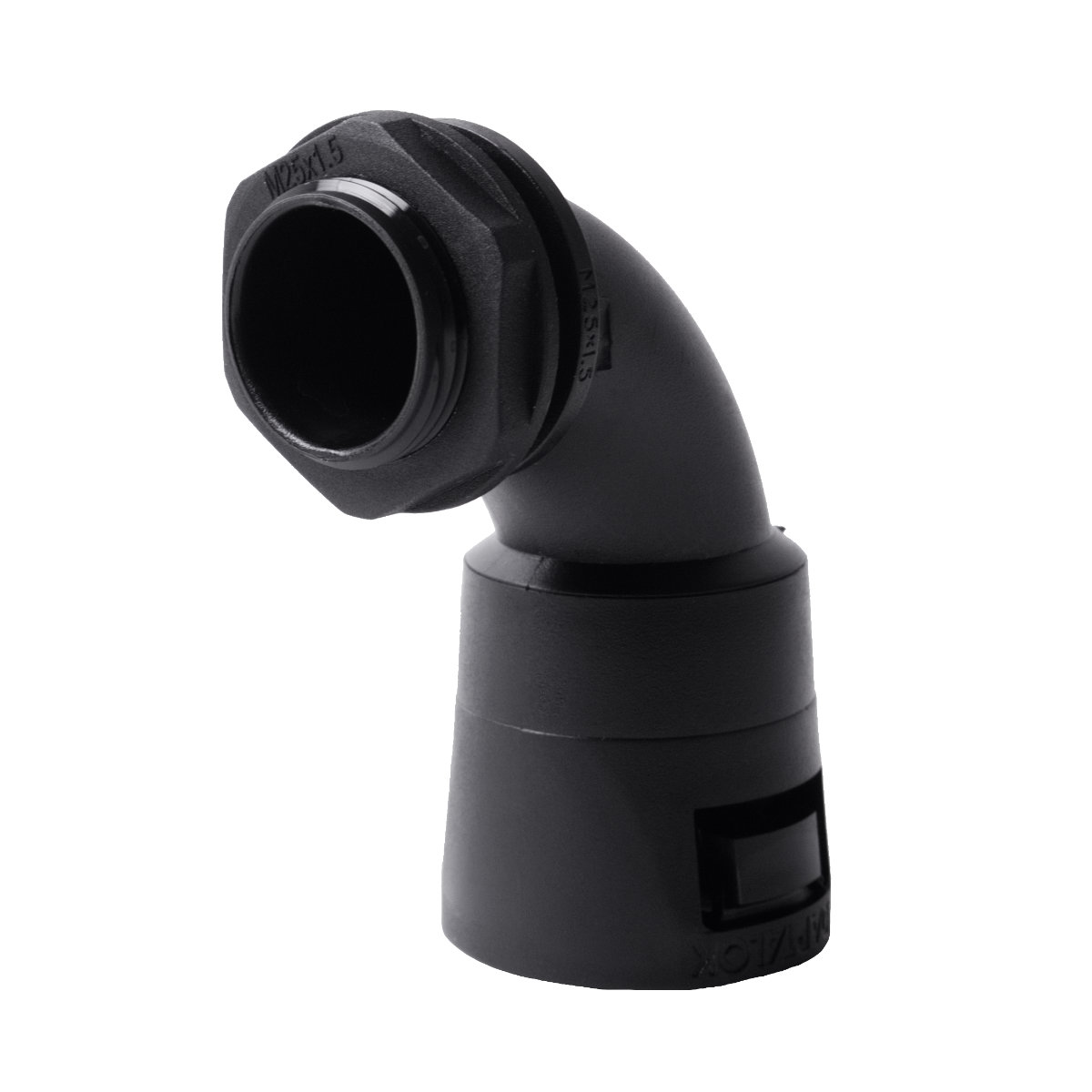

illustrative picture
adaptalok_EN
| EAN code | 8595057625228 |
| Customs code | 39174000 |
| წონა | 0,0100 kg/pcs |
| Colour | black |
| Material | PA |
| Halogen free material | yes |
| UV stable/UV stable material | yes |
| Self-extinguishing | 30 s |
| Temperature resistance | stable mounting: -50 to + 120 ° C; flexible mounting: -45 to +120 ° C |
| Pipe outside diameter | 16 mm |
| Note Combination of accessories and pipes is always controlled by outside diameter of the pipe used. | |
| Area with explosion danger Can be installed in a zone with the danger of explosion of flammable gases and vapors of zone 2 and into the zone of danger of explosion of flammable dusts of zone 22. | |
| Protection types | IP 66 |
| Standards | ČSN EN 61386-24 |
Adaptalok is a system of utilities allowing to terminate and fix the pipe. Utilities allow 45° and 90° tapping and direct threaded termination - M16 - M50 or PG13,5 - PG48. pipe termination is available as for flange as well. Installation and removal is easy and quick.
