LK80X28THF_EN
| EAN code | 8595057633995 |
| Customs code | 39259080 |
| წონა | 0,0363 kg/pcs |
| Colour | white |
| Material | PC-ABS |
| Leadless material | yes |
| Self-extinguishing | 30 s |
| Rated voltage | <= 400 V |
| Rated current | <= 16 A |
| Temperature resistance | -20 - 80 °C |
| Flaming loop test | 850 °C |

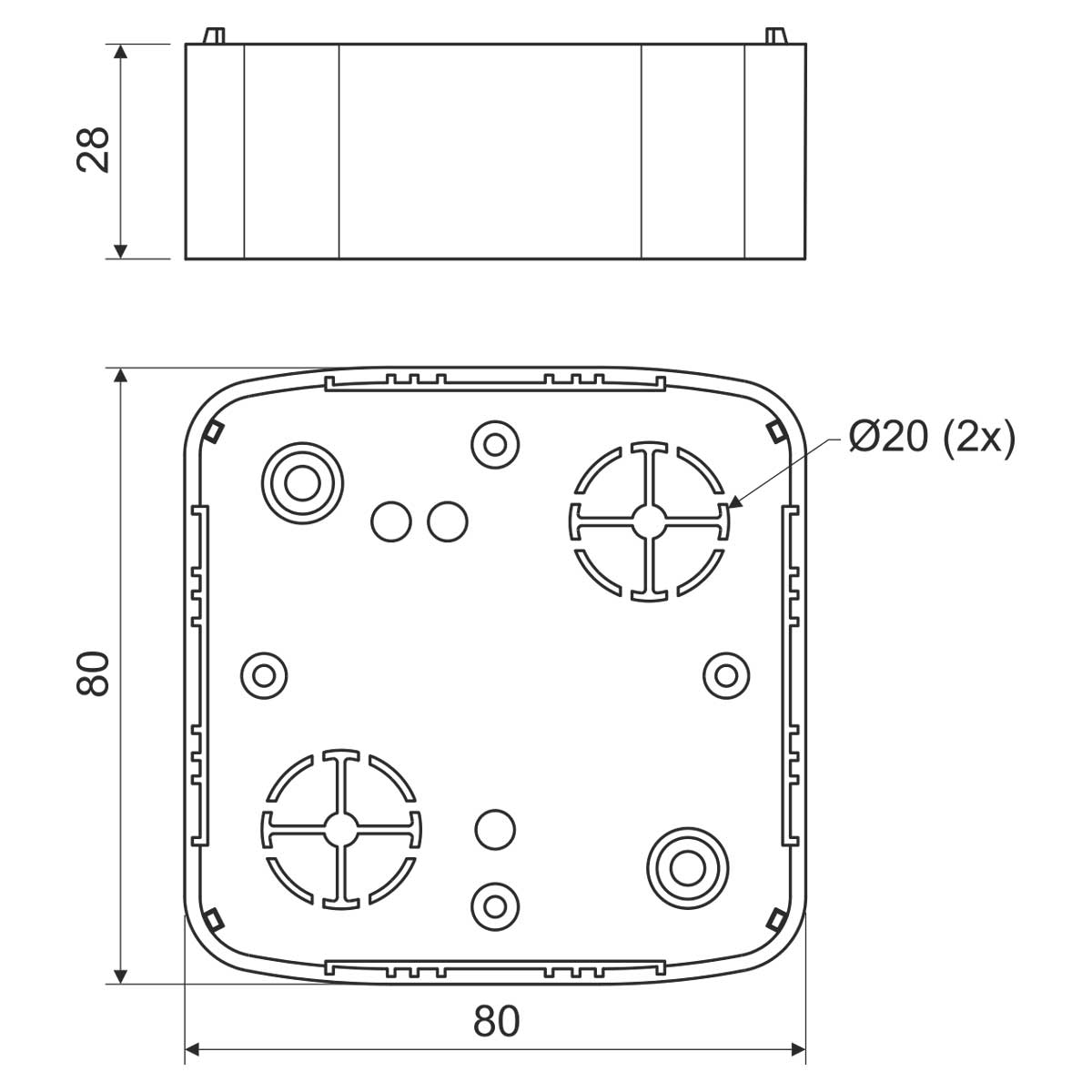

| Width | 80 mm |
| Height | 80 mm |
| Depth | 28 mm |
| Fire reaction class of underlying material | A1 - D |
| Extending reaction to fire of underlying material Combined with a 5 mm thermal insulation pad, installation on flammable substrates can be carried out without limitation of the reaction to fire class A1 - F | |
| Standards | ČSN EN 60 670-1 |
| Package description the boxes are packed in a shrink foil of 10 pieces and the screws are enclosed | |
For premises with increased need for protection of persons and property. Intended for devices of Tango series. To install on materials with fire classes E or F, use insulating pad.
