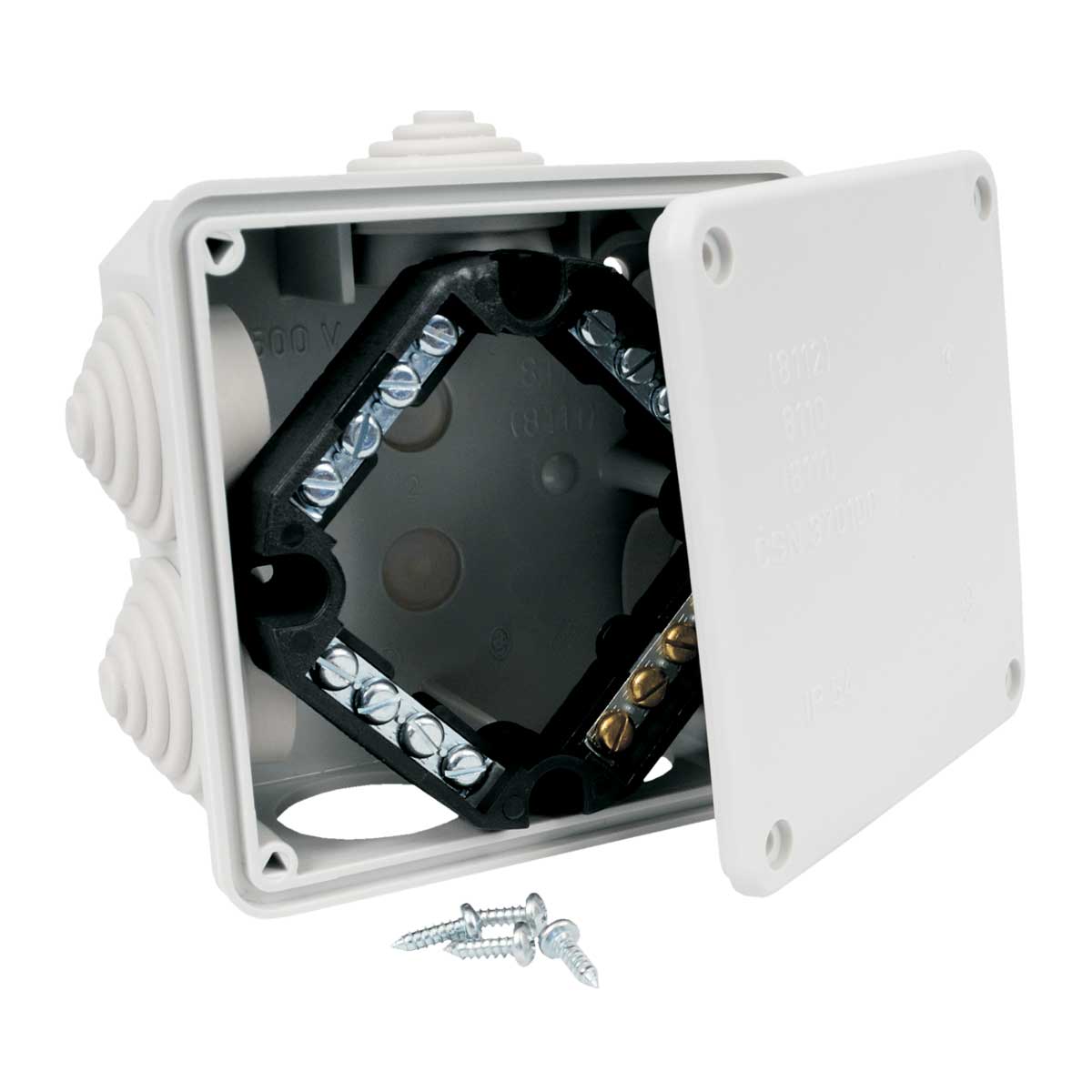

illustrative picture
8111_EN
| EAN code | 8595057656000 |
| Customs code | 85381000 |
| წონა | 0,3720 kg/pcs |
| Colour | light grey RAL 7035 |
| Material | PVC |
| Leadless material | yes |
| Self-extinguishing | 30 s |
| Rated voltage | <= 400 V |
| Rated current | <= 16 A |
| Temperature resistance | -5 - 60 °C |
| Flaming loop test | 850 °C |
| Width | 116 mm |
| Height | 116 mm |
| Depth | 55 mm |
| Fire reaction class of underlying material | A1 - D |
| Extending reaction to fire of underlying material Combined with a 5 mm thermal insulating, non-flammable pad, assembly on building materials can be carried out without restriction of the reaction to fire class A1 - F | |
| Protection types | IP 54 |
| Standards | ČSN EN 60 670-1 |
| Package description the grommets, terminal plates, screws for mounting lid and terminal plates inserted in the box, each box is packed in a shrink foil and labeled | |
For installation in environment with increased humidity, dust, chemical and corrosion resistance in environments with increased risk of mechanical damage. Universal grommets for cables and pipes, grommets can be ordered separately. To install on materials with fire classes E or F, use thermally insulating pad.
