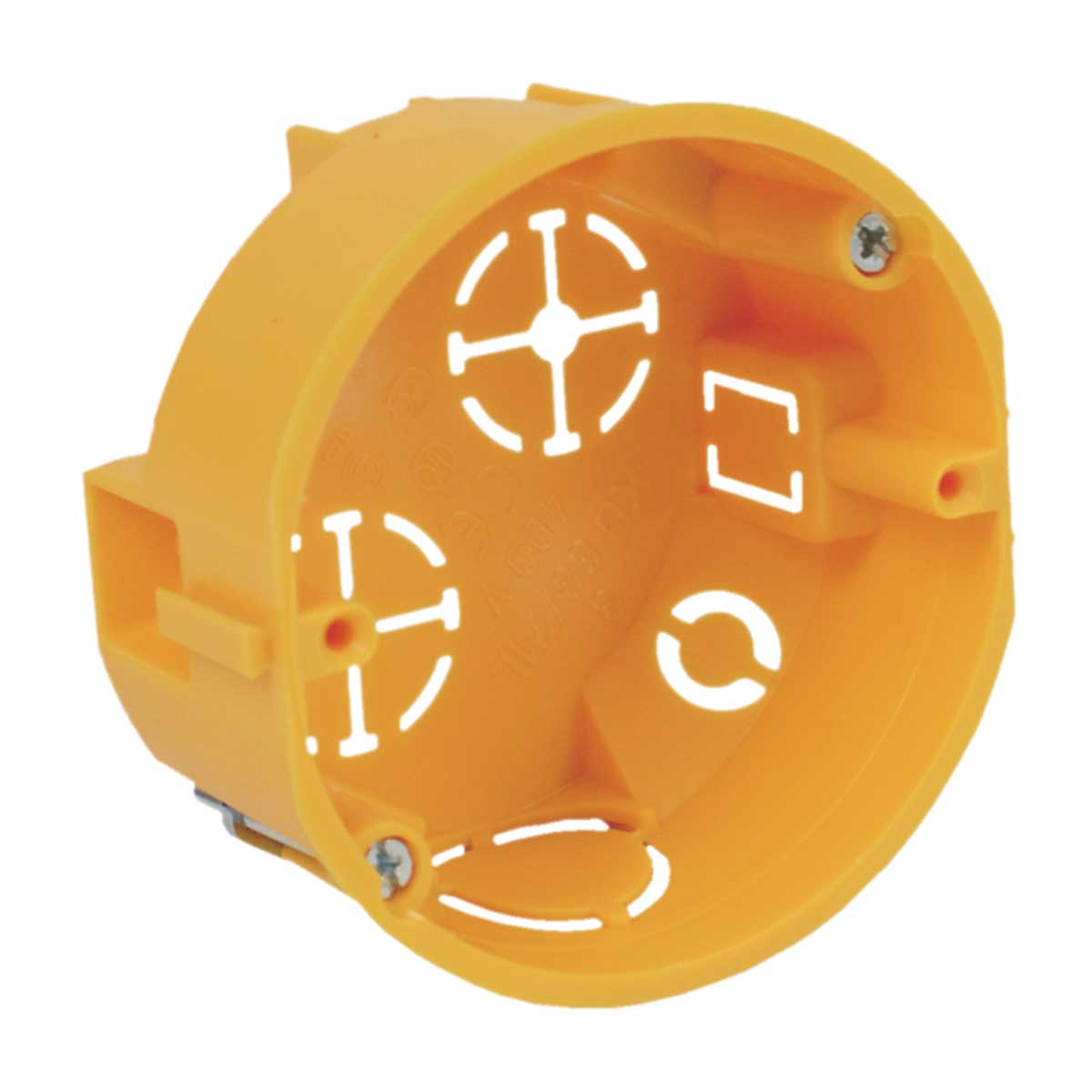

illustrative picture
To download 3D models, please login or create an account and request access.
KU6871L1_EN
| EAN code | 8595057688414 |
| Customs code | 39259080 |
| წონა | 0,0340 kg/pcs |
| Material | PVC |
| Leadless material | yes |
| Self-extinguishing | 30 s |
| Rated voltage | <= 400 V |
| Rated current | <= 16 A |
| Temperature resistance | -5 - 60 °C |
| Flaming loop test | 850 °C |

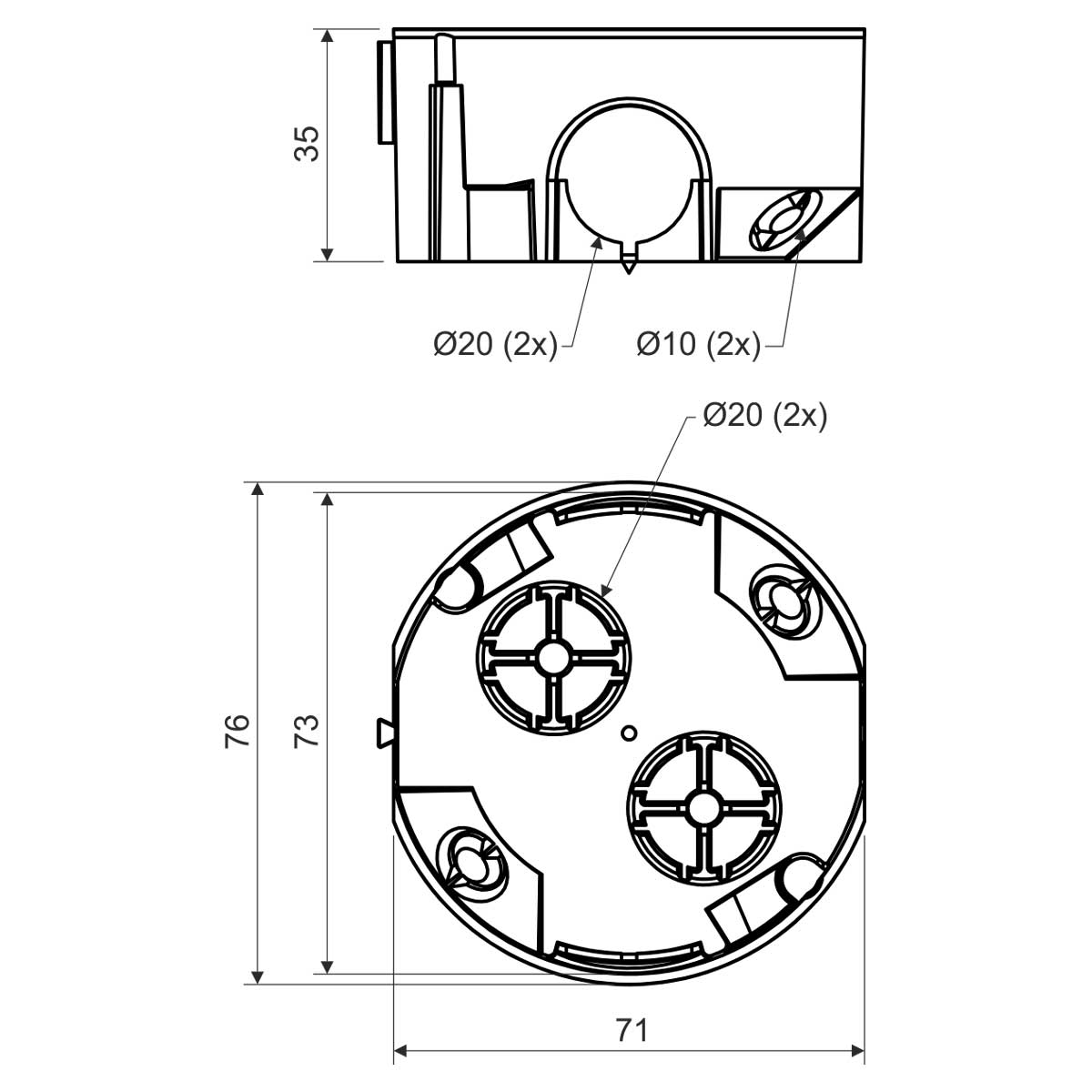

| Diameter | 73 mm |
| Depth | 35 mm |
| Milled (drilled) hole diameter | 73 mm |
| Manufactures´s recommendations For all range of products in hollow walls, we recommend using the milling sets supplied by us. | |
| Fire reaction class of underlying material | A1 - F |
| Spacing when joining 2 boxes | 71 mm |
| Allows to install double-socket | yes |
| Protection types | IP 30 |
| Standards | ČSN EN 60 670-1 |
| Package description boxes fitted with screws for mounting the box in plasterboard, the instrument screws are packed separately | |

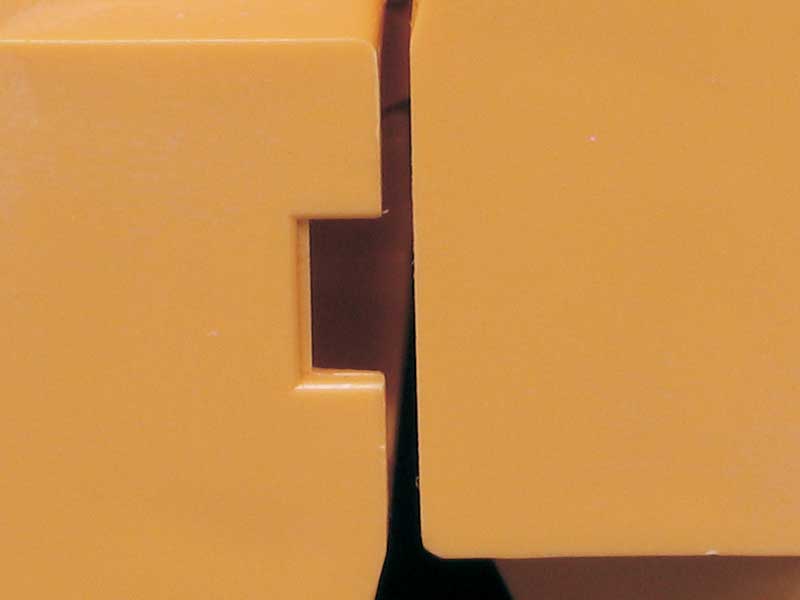

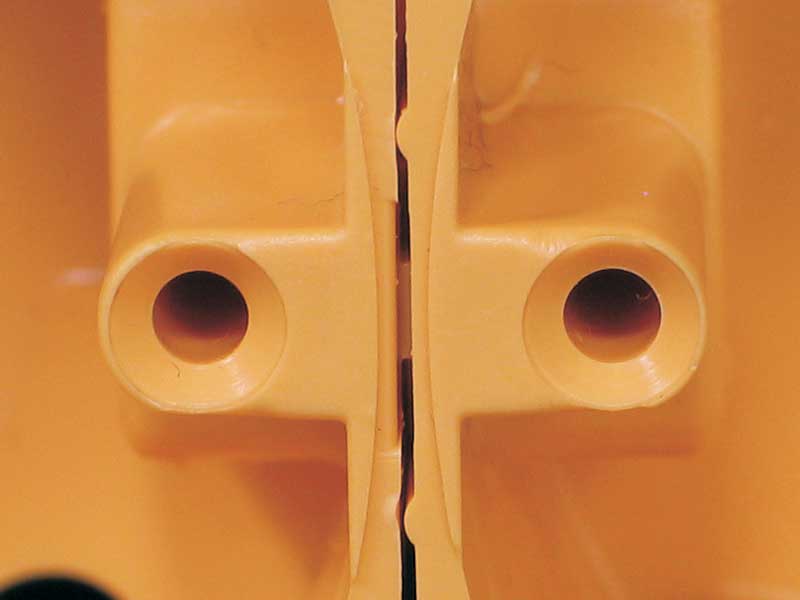

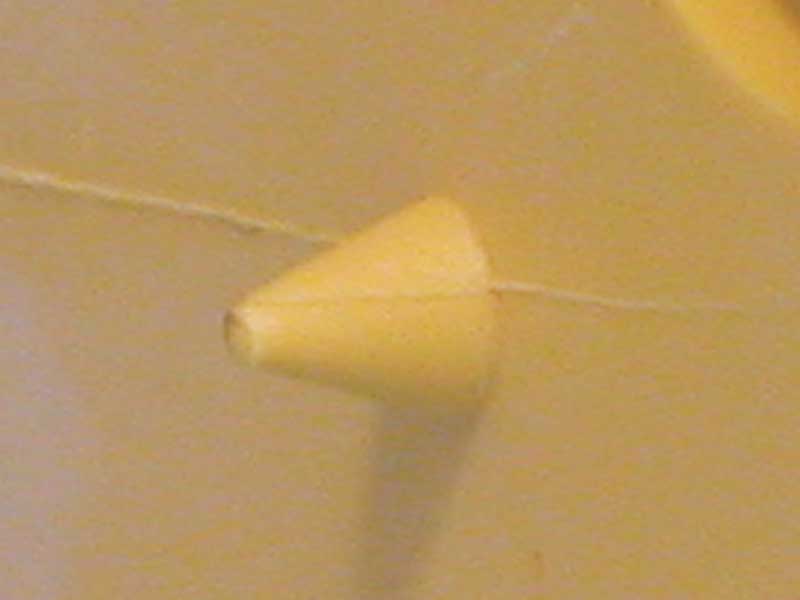

Connection in a continuous series with axial distance of 71 mm. Possibility to connect 3 boxes in a series. Integrated tip to mark the centre of drilling. Jointed boxes can be interconnected using single insulated wires. Connectable with the box KPR 68/71L. Mounting screws are fitted with a triple thread for quick installation. The IP30 protection a box fitted with an appropriate lid or a device with a higher or equal IP30 protection. When mounting, it is not necessary to countersink the plasterboard edge.
