PEKD40_EN
| EAN code | 8595057690448 |
| Customs code | 39259020 |
| წონა | 0,0950 kg/m |
| Colour | white |
| Material | PVC |
| Leadless material | yes |
| Self-extinguishing | 30 s |

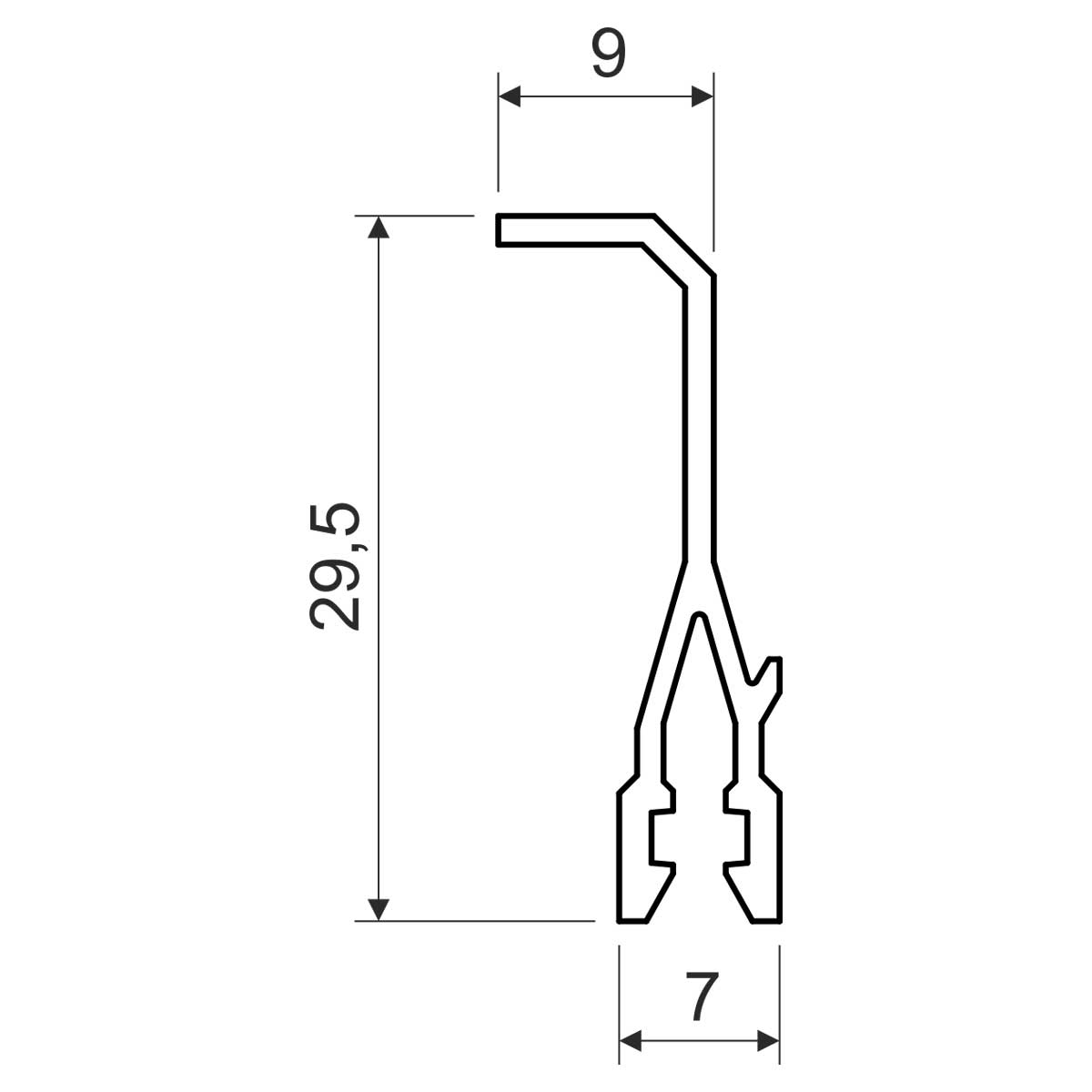

| Width | 7 mm |
| Height | 29,5 mm |
| Length | 2 m |
| Use For trunkings and canals LH 60X40, EKD 80X40, EKD 100X40, EKD 120X40. | |
| Area with explosion danger Electro-installation trunking (insertive, rectangular, halogen-free) and parapet canals with accesories can be installed in zones with explosion hazard of flammable gases (zone 2) and with the risk of explosion of flammable dusts (zone 22), installation must comply with EN 60079-14. | |
| Standards | ČSN EN 50 085-1 |
It is used to divide the interior of the trunkings, thus allowing a better manipulation with the inserted cables and clarity.
