SKSK2_EN
| EAN code | 8595568919663 |
| Customs code | 85369010 |
| წონა | 0,0360 kg/pcs |
| Material | PP |
| Halogen free material | yes |
| Self-extinguishing | 30 s |
| Rated voltage | <= 500 V |
| Temperature resistance | -40 - 85 °C |
| Flaming loop test | 850 °C |

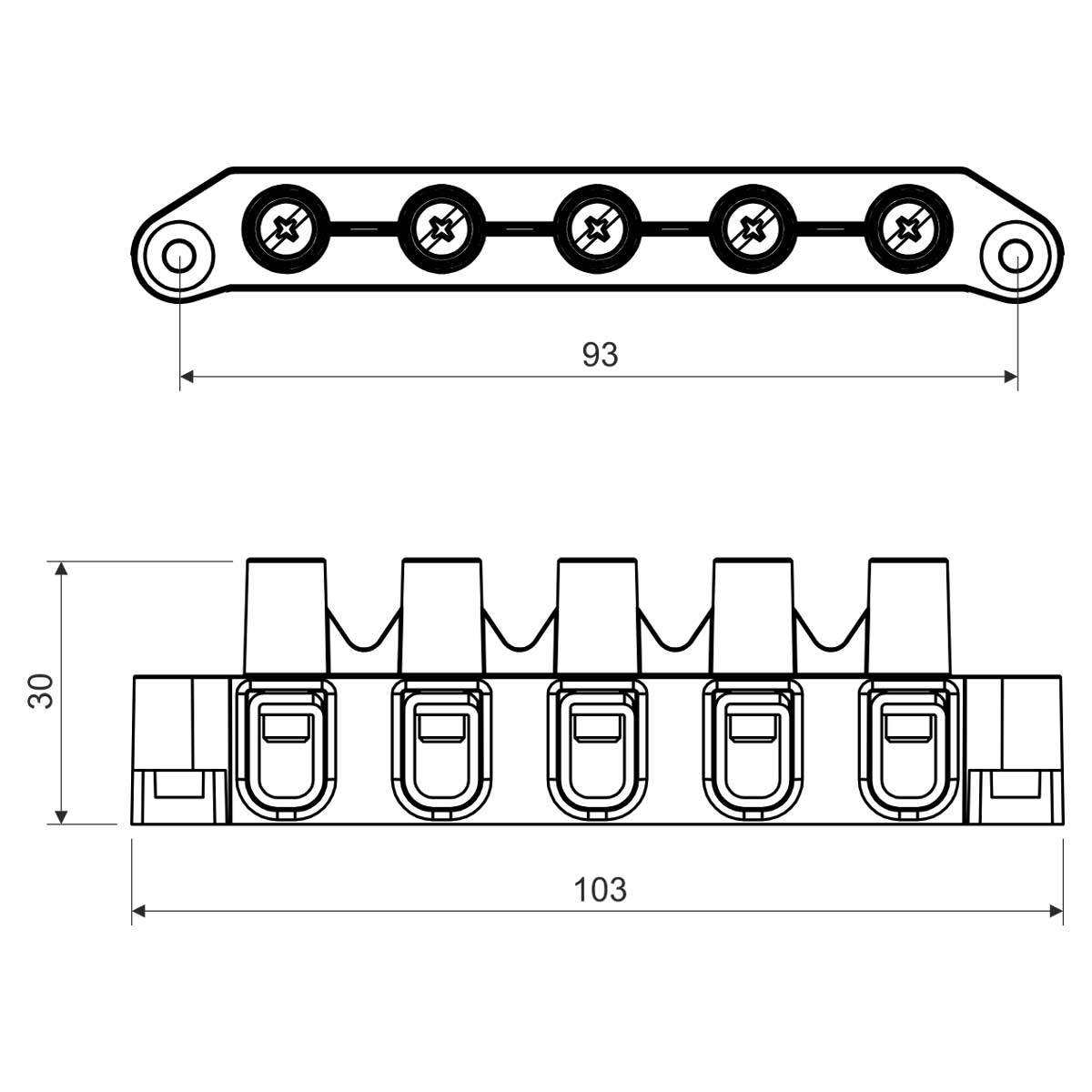

| Width | 104 mm |
| Height | 30 mm |
| Cross-section of the connected conductor | 4 x 2,5 - 4; 3 x 6 mm2 |
| Fire reaction class of underlying material | A1 - F |
| Package description 10 pcs terminal plate wrapped in foil, marked with a label | |
Suitable for boxes KSK 125 and KSK 175. Branching terminal plate are composed of five separate terminals. Each terminal is intended for 4 wires of cross section 2.5 – 4 mm2 or 3 wires of cross section 6 mm2. Allows mounting to posts inside boxes or to the box bottom – installation is done using screws that are included. Designed for maximum voltage of 500 V. Tested according to ČSN EN 60998-1.
