illustrative picture
KUZ-VO KB - krabice univerzální do zateplení s otevíracím víkem
To download 3D models, please login or create an account and request access.
EAN code8595568923677
Customs code39259080
წონა0,5874 kg/pcs
MaterialPC-ABS
Halogen free materialyes
Leadless materialyes
Self-extinguishing30 s
Rated voltage<= 500 V
Rated current<= 16 A
Temperature resistance-25 - 60 °C
Flaming loop test850 °C

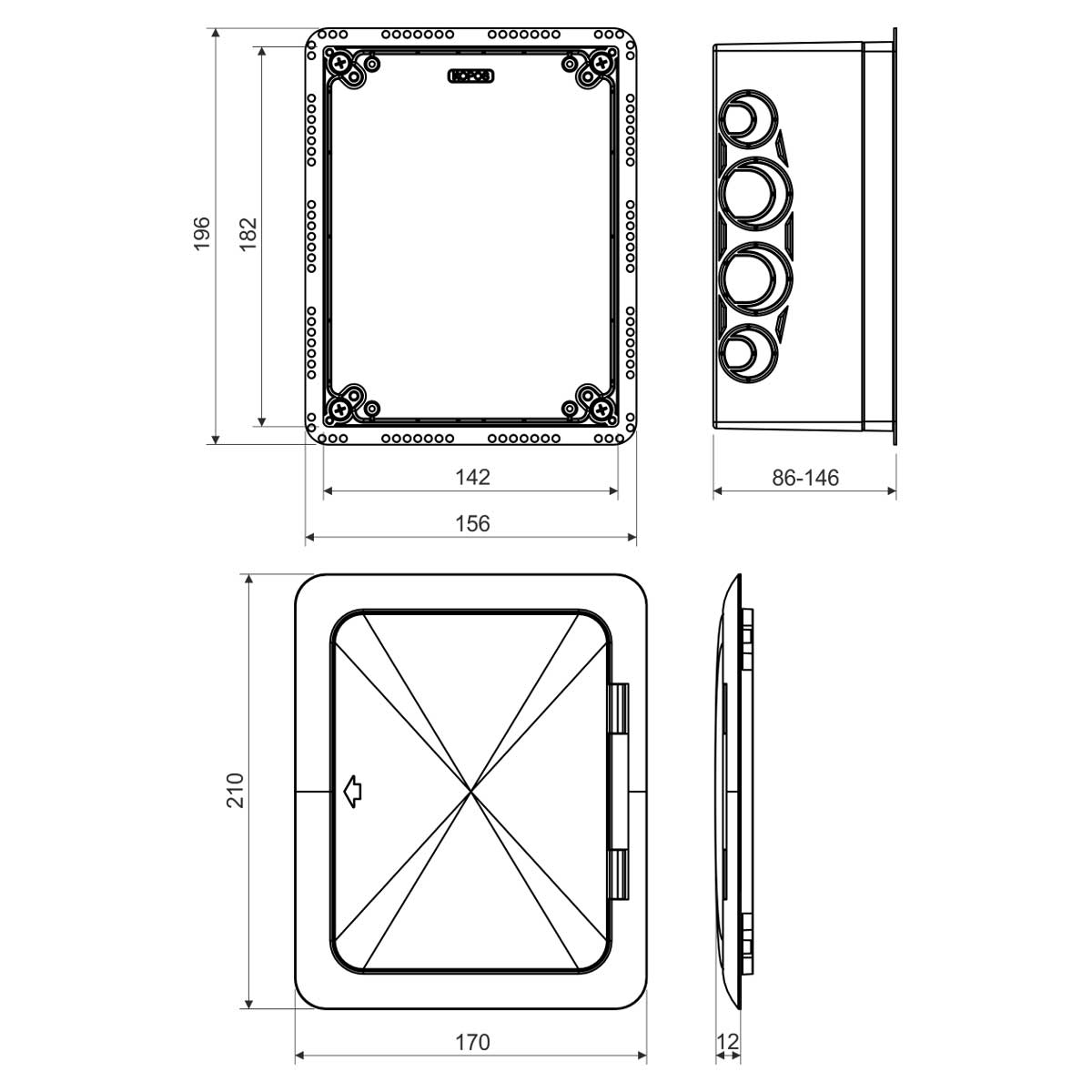

Width156 mm
Height196 mm
Depth86 mm
Fire reaction class of underlying materialA1 - F
Protection typesIP 30 - 44
Package description
individual boxes are packed in separate cardboards

For installation to facades with thermal insulation with a thickness from 80 to 140 mm, or as boxes under parget. Use as a junction box, for lightning rod measuring clamp and other applications according to the customer. Adjustable depth of the box. The configuration includes a box and an opening lid, inner mounting desk and stainless steel screws + seal. Robust construction. Protected by a European industrial design and Utility model trademark.
