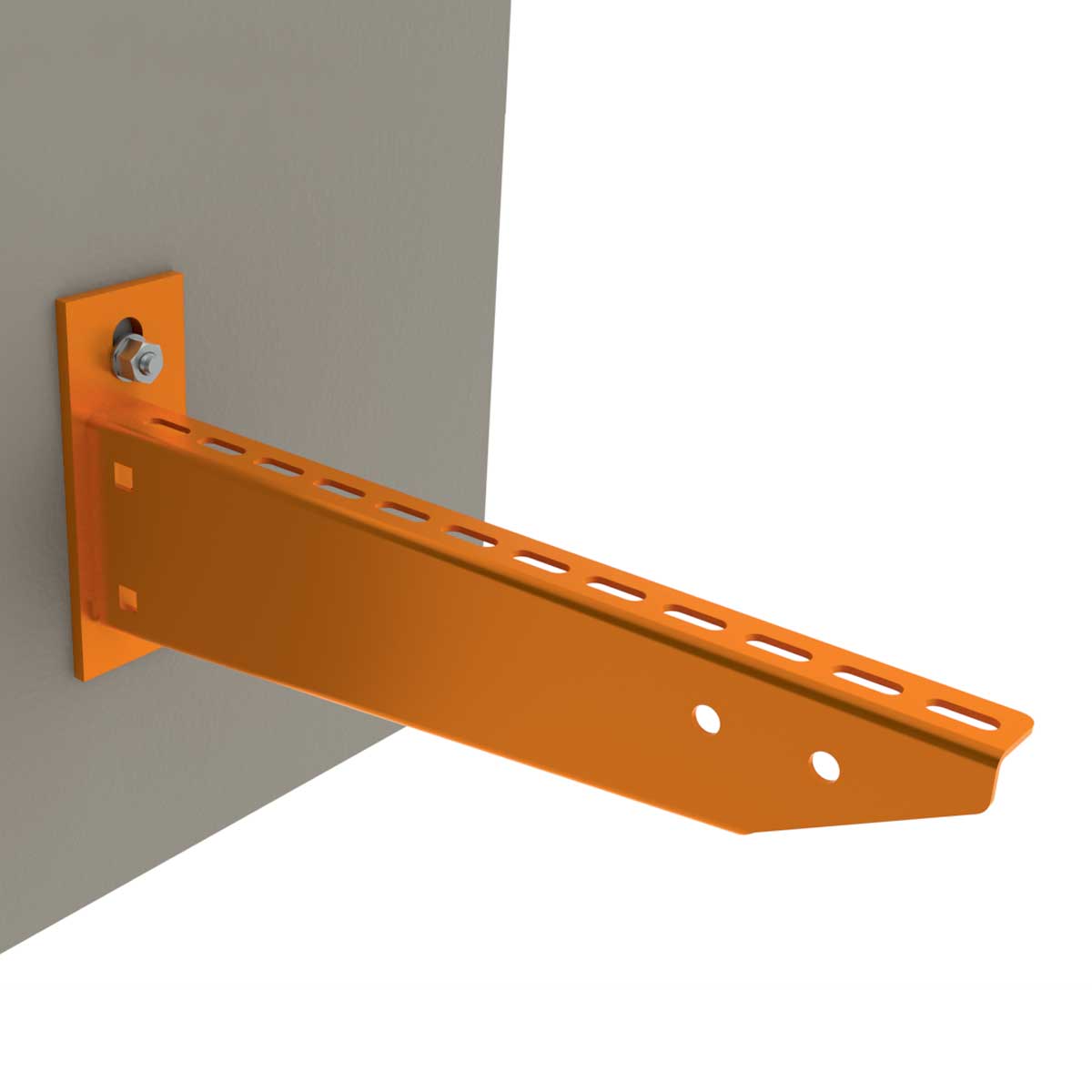

illustrative picture
To download 3D models, please login or create an account and request access.
DT_EN
| EAN code | 8595057628526 |
| Customs code | 83024190 |
| წონა | 0,8990 kg/pcs |
| Surface finish | Hot Dip Galvanized |
| Funcionality in fire | P90-R, E90, PS90 |
| Fire resistance standards | ČSN 73 0895, DIN 4102-12, STN 92 0205 |
| Maximum load | 350 kg |
| Dimension A | 420 mm |
| Dimension B | 135 mm |
| Dimension C | 60 mm |
| For width of cable tray | 400 mm |
| For height of cable tray | 35 - 110 mm |
| Max. load for fire resistance | 10 - 20 kg |
The holder is designed to be mounted on a wall or a ceiling profile. For assembly to the ceiling profile SPL and SPS there are used the sliding nuts PM 41 M 10 together with the bolts S 10X20 (2 pcs). Fix to the celling profile SPLN, SPSN or SPU using bolts S 10X20, nuts M 10 and washer PD 10. Cable tray attaching to the bracket DT is carried out by bolts NSM 6X10.
Note for system with maintained functionality in fire:
You find more information in the catalogue Systems with maintained functionality in fire.
