NIXPZ_EN
| EAN code | 8595057671973 |
| Customs code | 72224050 |
| წონა | 0,4700 kg/m |
| Surface finish | Stainless steel AISI 304 |
| Temperature resistance | -50 - 150 °C |
| Length | 2000 mm |
| Standards | ČSN EN 61537 |
| Thickness of metal sheet | 0,6 mm |
| Dimension H | 44 mm |
| For width of cable tray | 62 - 250 mm |
| For height of cable tray | 50 mm |

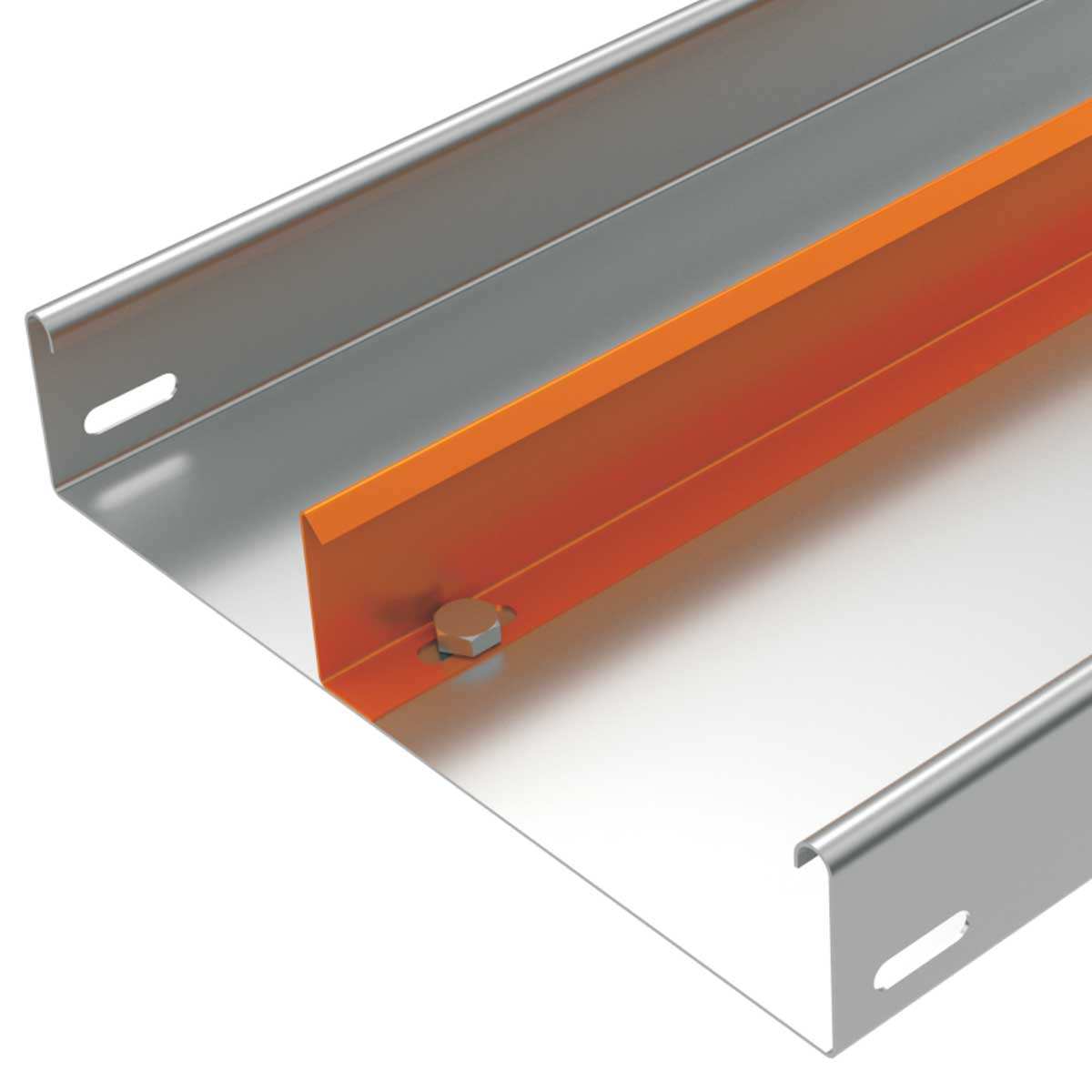

The fixing of the partition is carried out by bolts NIXSM 6X10.
