NIXR_EN
| EAN code | 8595057672031 |
| Customs code | 73269098 |
| წონა | 0,0250 kg/pcs |
| Surface finish | Stainless steel AISI 304 |
| Temperature resistance | -50 - 150 °C |
| Standards | ČSN EN 61537 |
| Thickness of metal sheet | 0,6 mm |
| Quantity of screws for connecting | 2 |

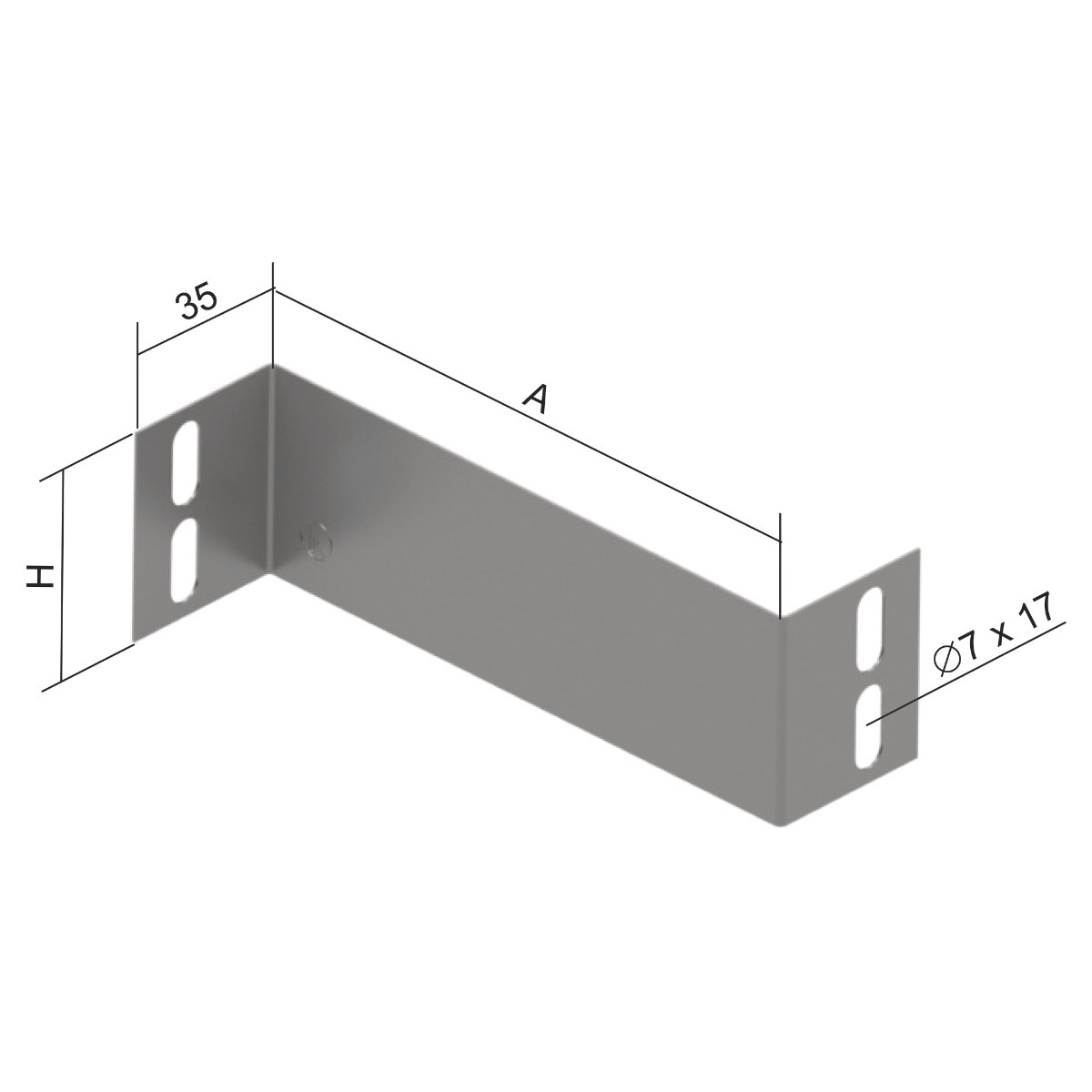

| Dimension A | 64 mm |
| Dimension H | 43 mm |
| For width of cable tray | 125 - 250 mm |
| For height of cable tray | 50 mm |

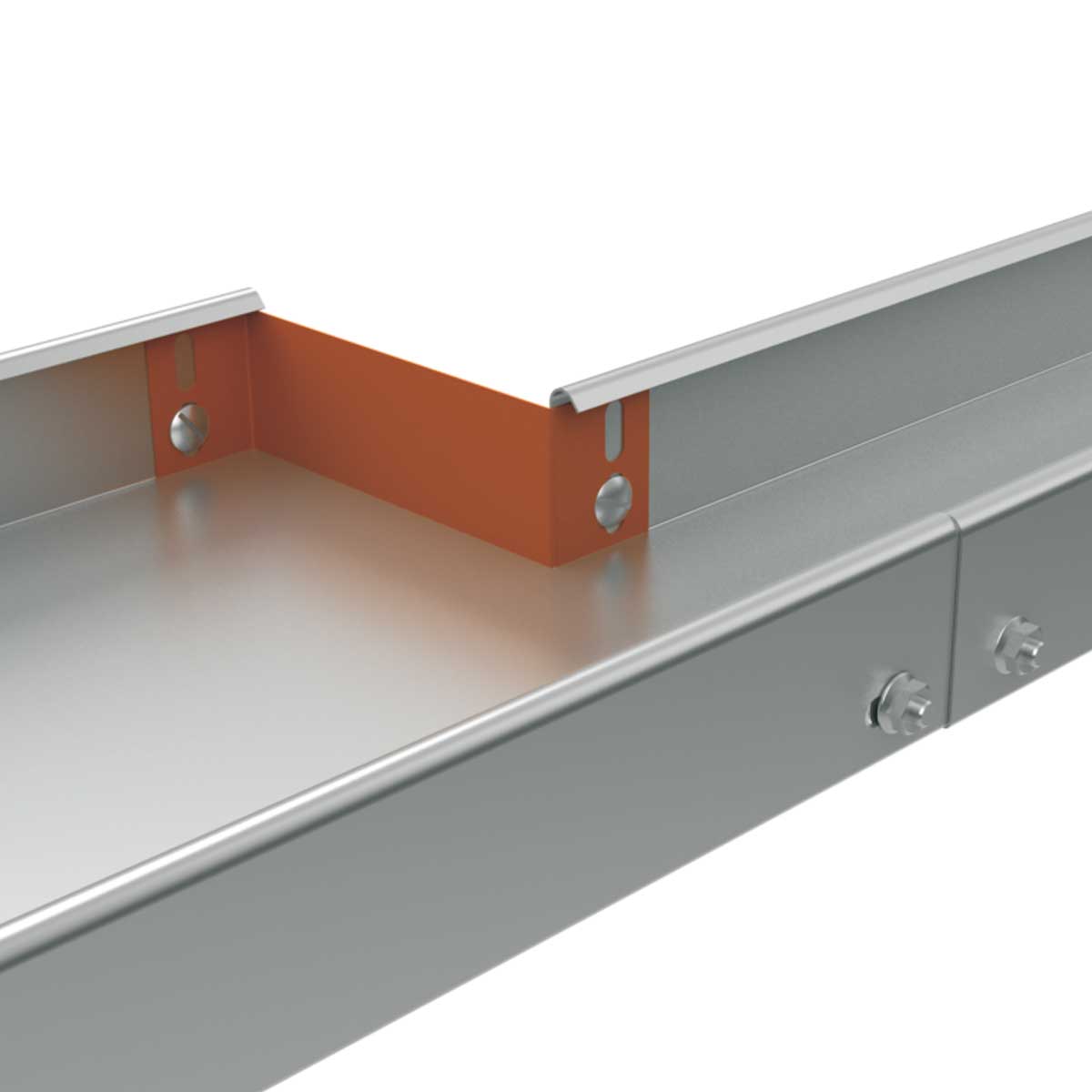

The joining is performed by using the bolts NIXSM 6X10. The reduction is used for the transition between various tray widths with identical height of side walls.
