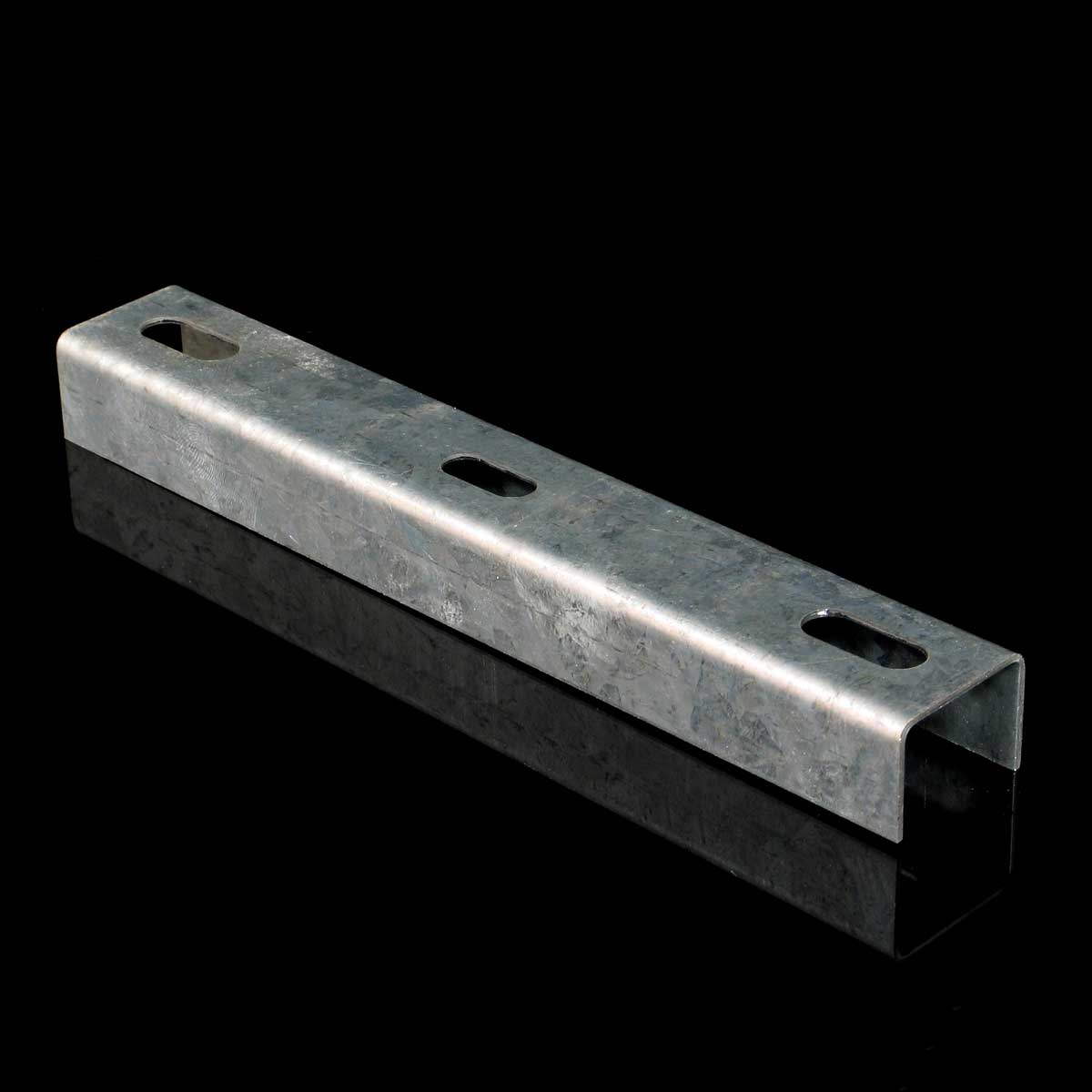

illustrative picture
To download 3D models, please login or create an account and request access.
NIXZ_EN
| EAN code | 8595057675322 |
| Customs code | 72224050 |
| წონა | 0,1280 kg/pcs |
| Surface finish | Stainless steel AISI 304 |
| Temperature resistance | -50 - 150 °C |
| Standards | ČSN EN 61537 |
| Thickness of metal sheet | 1 mm |

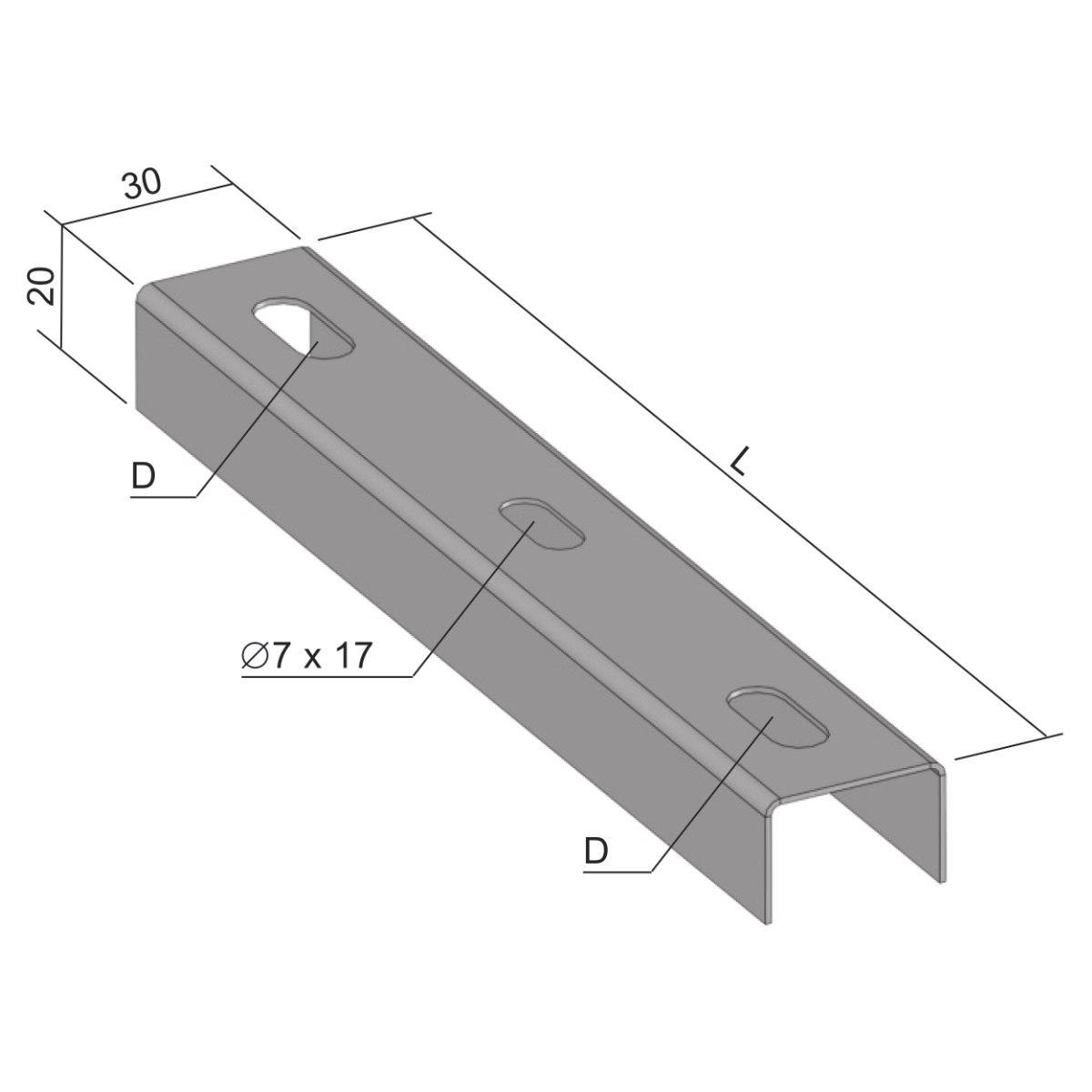

| Dimension D | 9x18 mm |
| Dimension L | 295 mm |
| For width of cable tray | 250 mm |
| For height of cable tray | 50 - 100 mm |
It is used to suspend a cable tray in combination with threaded rods.
