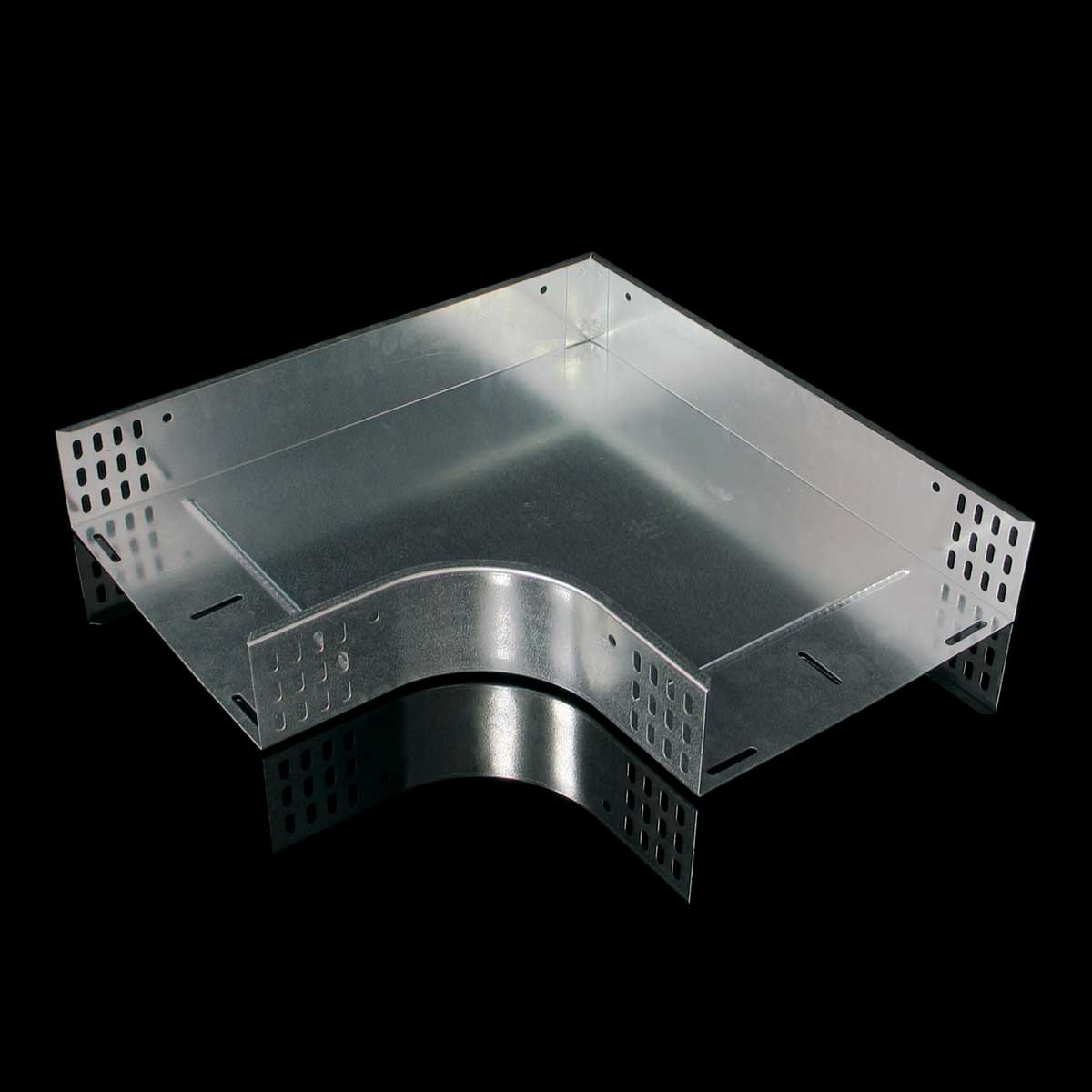

illustrative picture
To download 3D models, please login or create an account and request access.
O90_EN
| EAN code | 8595057658943 |
| Customs code | 73089059 |
| წონა | 5,0541 kg/pcs |
| Surface finish | Hot Dip Galvanized |
| Temperature resistance | -50 - 150 °C |
| Standards | ČSN EN 61537 |
| Thickness of metal sheet | 1 mm |
| Quantity of screws for connecting | 20 |
| Dimension A | 503 mm |
| Dimension B | 703 mm |
| Dimension H | 90 mm |
| For width of cable tray | 500 mm |
| For height of cable tray | 85 mm |
To fix the connection use the bolt NSM 6X10. The outer right angle of the side walls is replaced by skewed cut.
