EAN code | 8595568940681 |
Customs code | 83024190 |
წონა | 0,7495 kg/pcs |
Surface finish | Magnelis® |
Maximum load | 130 kg |
Dimension A | 520 mm |
Dimension B | 94 mm |
For width of cable tray | 500 mm |
For height of cable tray | 35 - 110 mm |

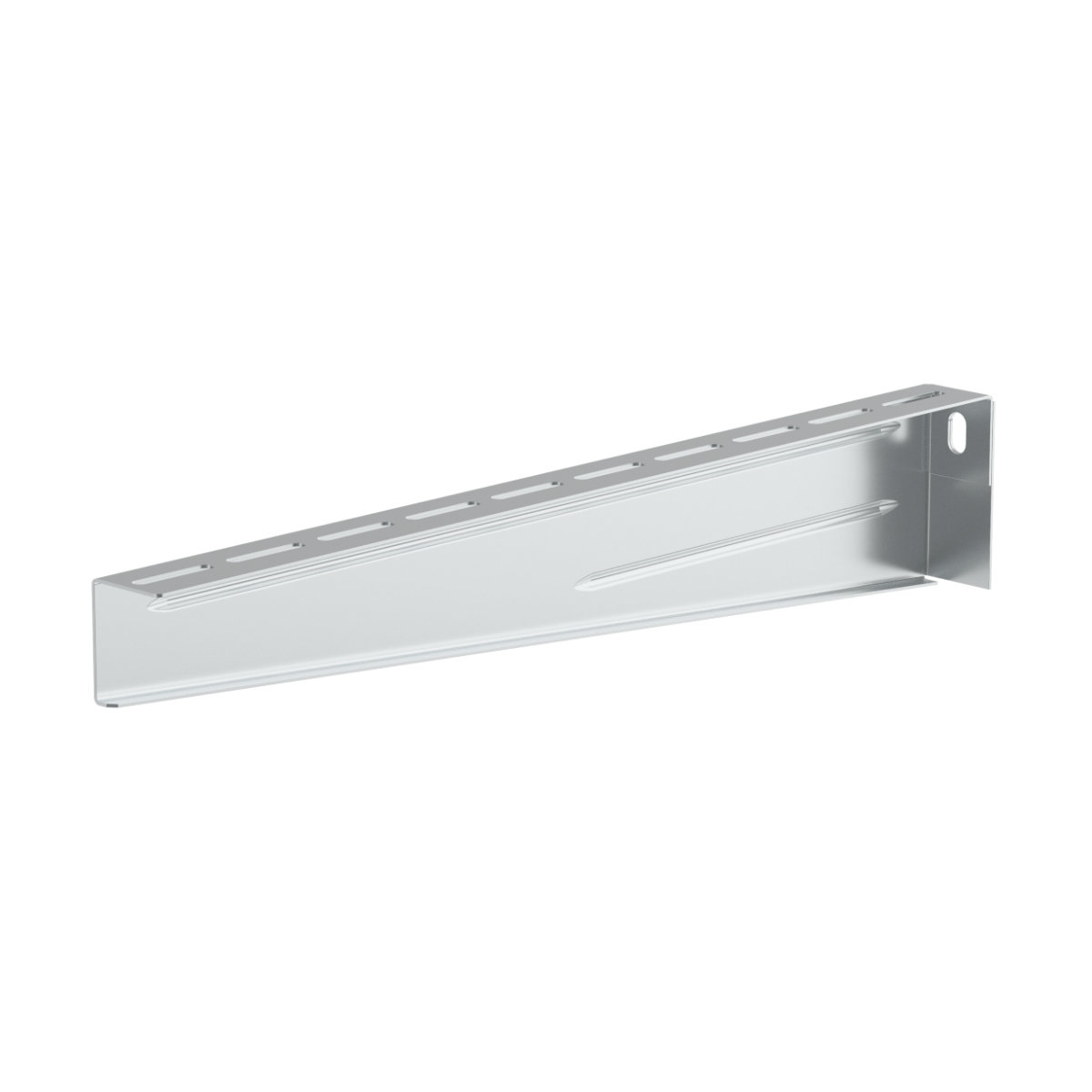

The bracket is intended for mounting to a wall or a ceiling profile. Fixing to the wall is done using a Ø 8 mm anchor. For mounting on the ceiling profile SPL and SPS, sliding nuts PM 41 M 10 together with screws S 10X20 are used. For fastening to the ceiling profile SPLN, SPSN or SPU, a screw S 10X20, a nut M 10 and a washer PD 10 are used. For fastening the cable tray to the bracket DS, screws NSM 6X10 are used.
