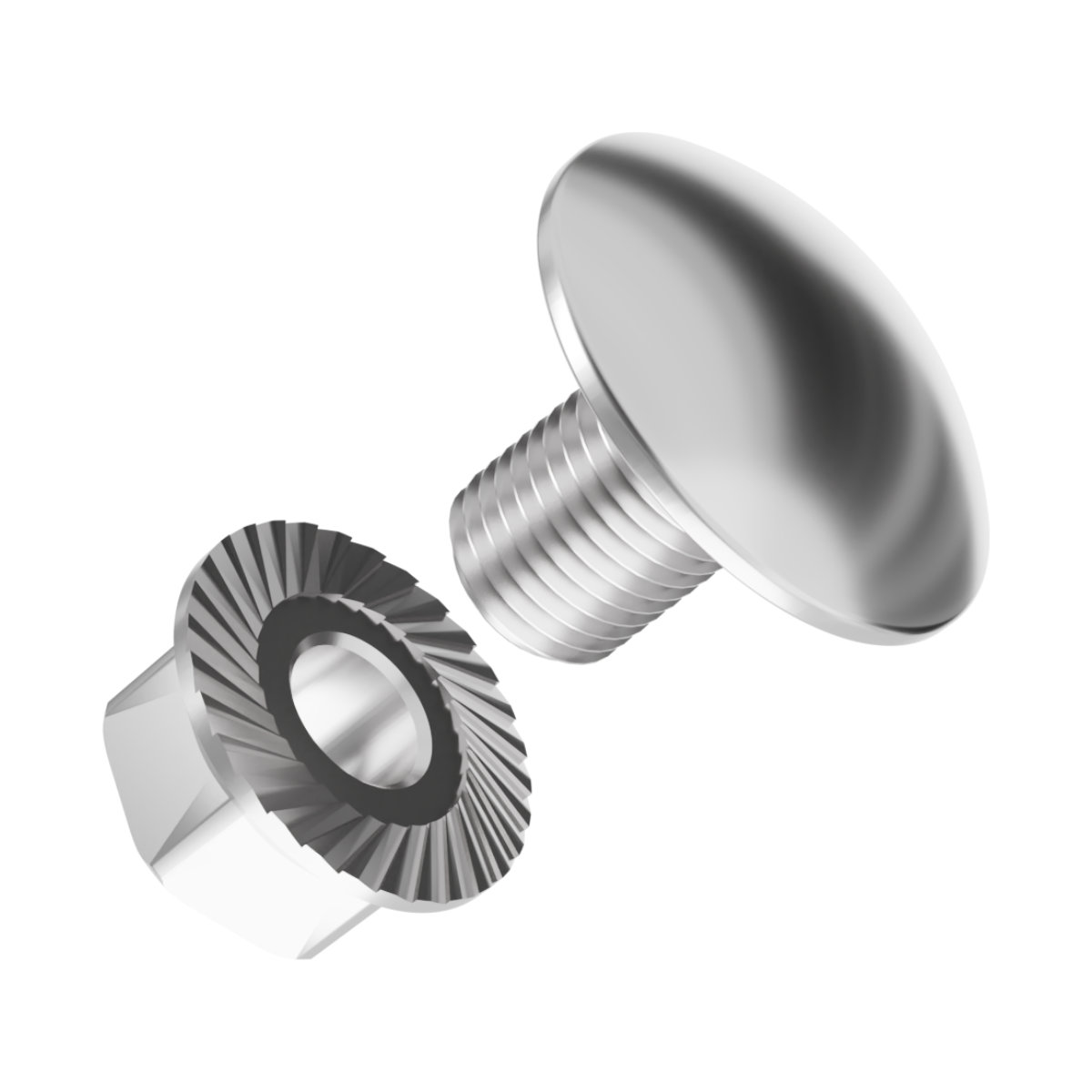

illustrative picture
NSM_EN
| EAN code | 8595057667129 |
| Customs code | 73181595 |
| წონა | 0,0070 kg/pcs |
| Surface finish | Electrolytic Galvanized |
| Temperature resistance | -50 - 150 °C |
| Diameter | M6 mm |
| Length | 10 mm |
| Funcionality in fire | P90-R, E90, PS90 |
| Fire resistance standards | ČSN 73 0895, DIN 4102-12, STN 92 0205 |
This bolt is used to connect cable trays or cable trays with accessories, or to attach trays to supporting structures. Used for the same purpose on cable ladder systems. To protect the cables, the bolt head is inside the cable tray. The bolt and the nut provide a conductive equipotential bond up to 25 A.
Note for system with maintained functionality in fire:
You find more information in the catalogue Systems with maintained functionality in fire.
