illustrative picture
To download 3D models, please login or create an account and request access.
NSUK_EN
| EAN code | 8595057666948 |
| Customs code | 73269098 |
| წონა | 0,0690 kg/pcs |
| Surface finish | Pre-Galvanized |
| Temperature resistance | -50 - 150 °C |
| Standards | ČSN EN 61537 |
| Thickness of metal sheet | 1 mm |
| Quantity of screws for connecting | 4 |
| Dimension H | 47 mm |
| For width of cable tray | 62 - 250 mm |
| For height of cable tray | 50 mm |

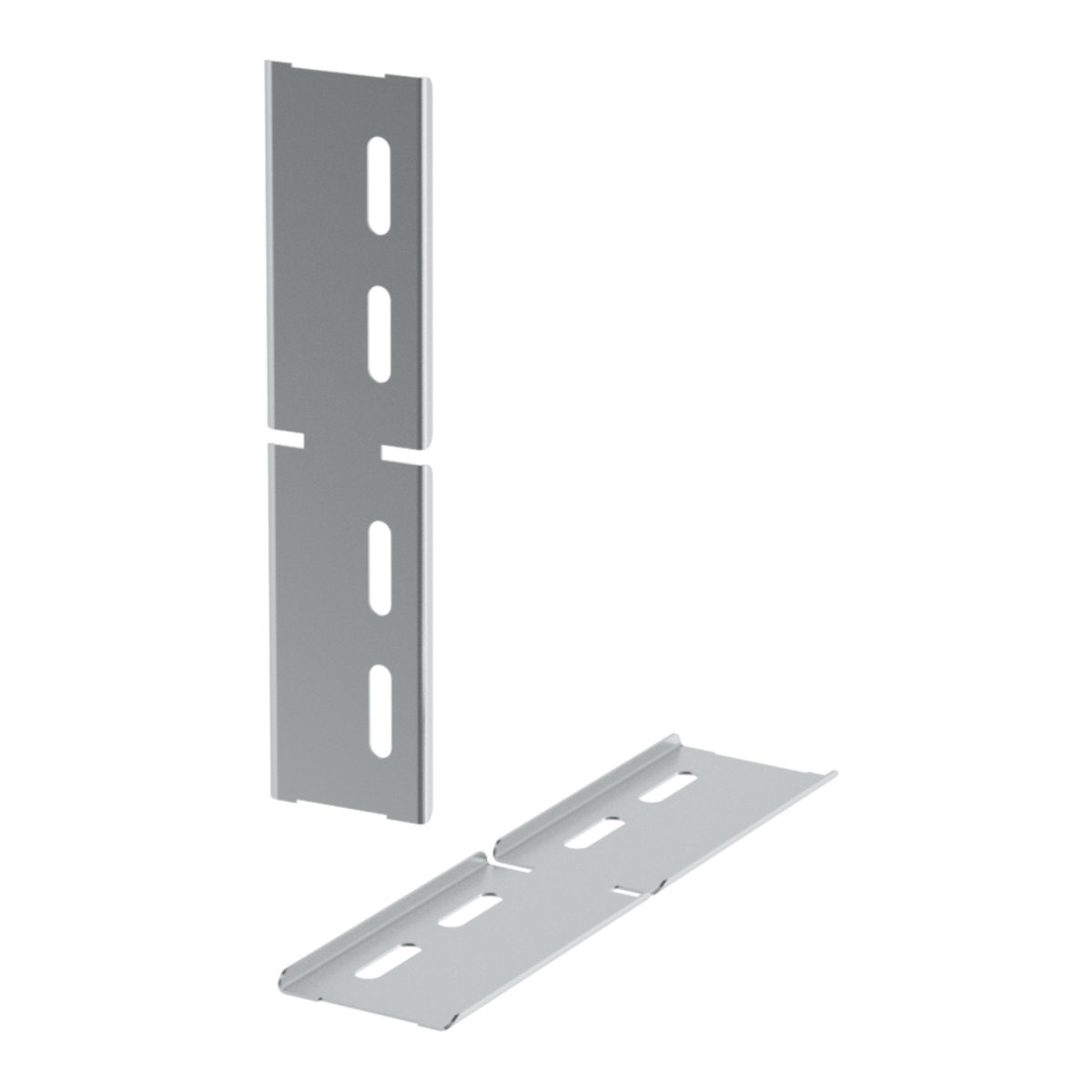

The joining is performed using the bolts NSM 6X10. Angle couplings are mostly used at places where the route is slightly bended, for large bending radiuses or for the circumvention of columns and pillars.
