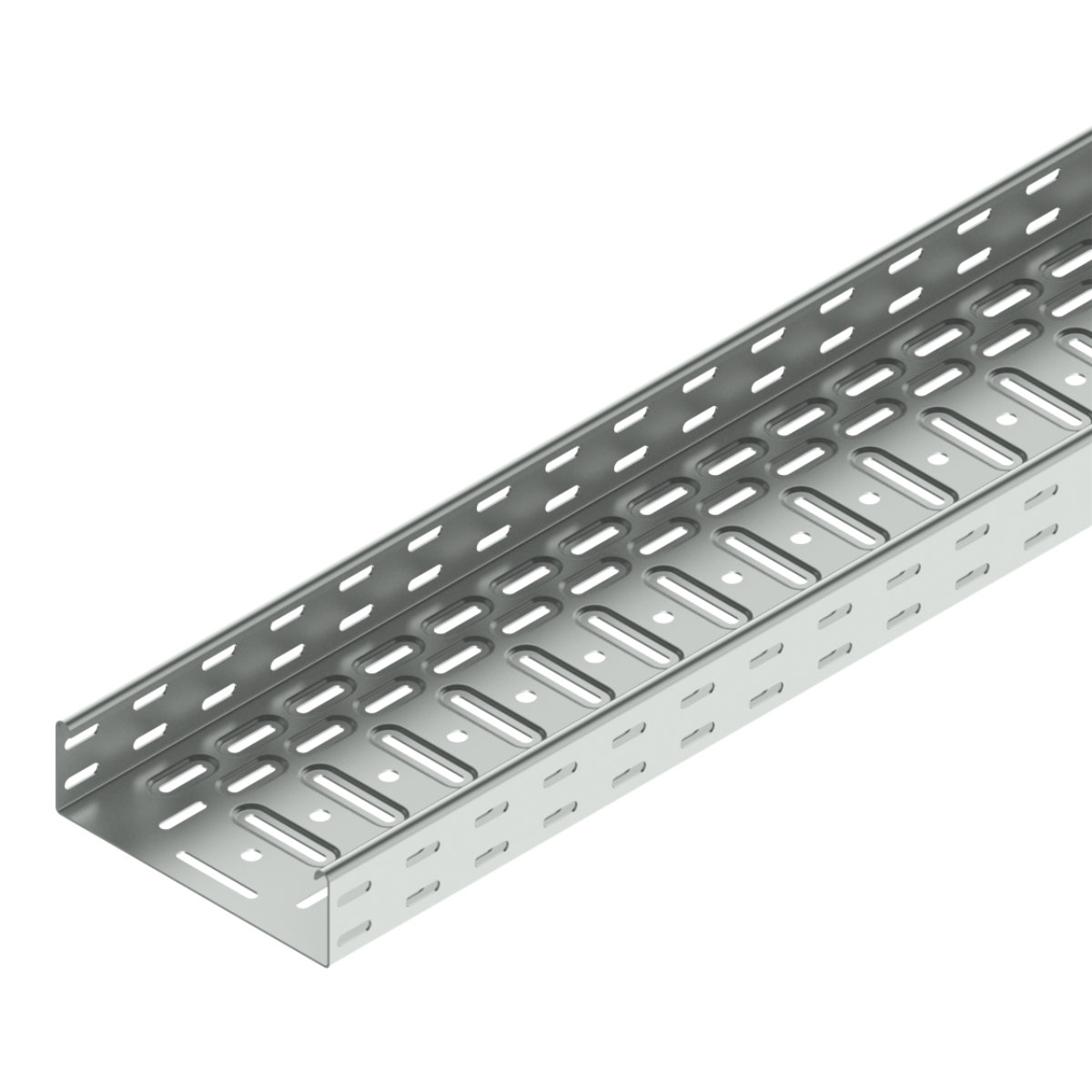

illustrative picture
To download 3D models, please login or create an account and request access.
KZ60_PO_EN
| EAN code | 8595057635913 |
| Customs code | 72169180 |
| წონა | 3,7000 kg/m |
| Surface finish | Pre-Galvanized |
| Temperature resistance | -50 - 150 °C |
| Width | 200 mm |
| Height | 60 mm |
| Length | 3000 mm |
| Funcionality in fire | P90-R, E90, PS90 |
| Standards | ČSN EN 61537 |
| Fire resistance standards | ČSN 73 0895, DIN 4102-12, STN 92 0205 |
| Thickness of metal sheet | 1,5 mm |
| Quantity of screws for connecting | 24 |
| Max. load for fire resistance | 10 kg |
Note for system with maintained functionality in fire:
For connecting the trays are designed for KSBS couplings and NSM 6X10 screws.
You find more information in the catalogue Systems with maintained functionality in fire.
