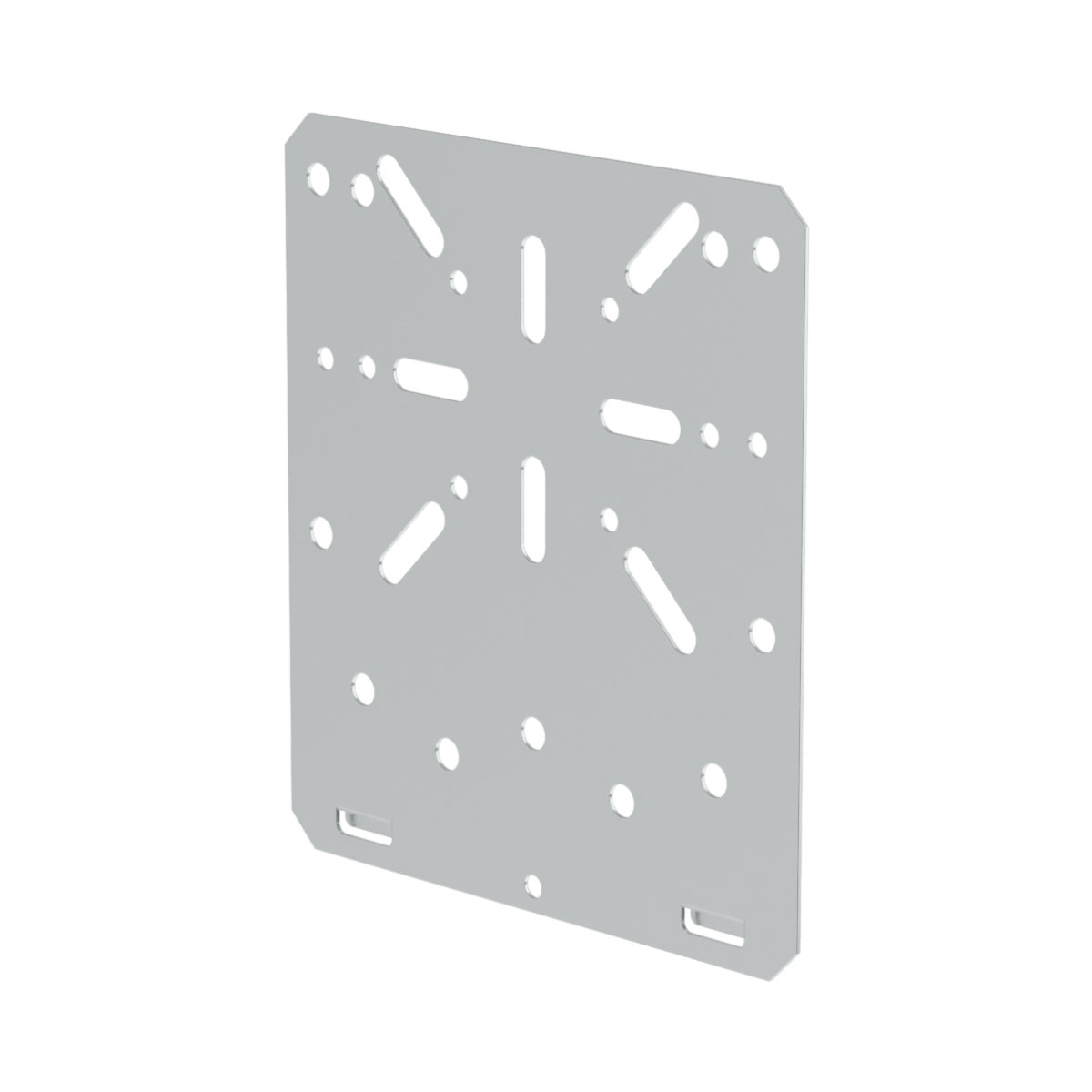

illustrative picture
To download 3D models, please login or create an account and request access.
MDS_EN
| EAN code | 8595057631762 |
| Customs code | 73269098 |
| წონა | 0,1650 kg/pcs |
| Surface finish | Pre-Galvanized |
| Temperature resistance | -50 - 150 °C |
| Funcionality in fire | P90-R, E90, PS90 |
| Standards | ČSN EN 61537 |
| Fire resistance standards | ČSN 73 0895, DIN 4102-12, STN 92 0205 |
| Thickness of metal sheet | 1 mm |
| For height of cable tray | 50 - 110 mm |
For mounting distribution boxes to the cable trays up to a sidewall height of 60 mm. It is pushed onto the side of cable trays and it is fixed by screws NSM 6X10. Recommended for boxes KSK 80, KSK 100, KSK 125, KSK 175; 8101; 8102; 8106; 8107; 8110; 8111; 8112; 8130; 8135; 003.CS.K; 005.CS.K (s. catalogue of Wiring materials).
Note for system with maintained functionality in fire:
For mounting distribution boxes to the cable trays up to a
sidewall height of 60 mm.
It is pushed onto the side of cable trays and it is fixed by
screws NSM 6X10.
Recommended for boxes KSK 100, KSK 125, KSK
175.
You find more information in the catalogue Systems with maintained functionality in fire.
