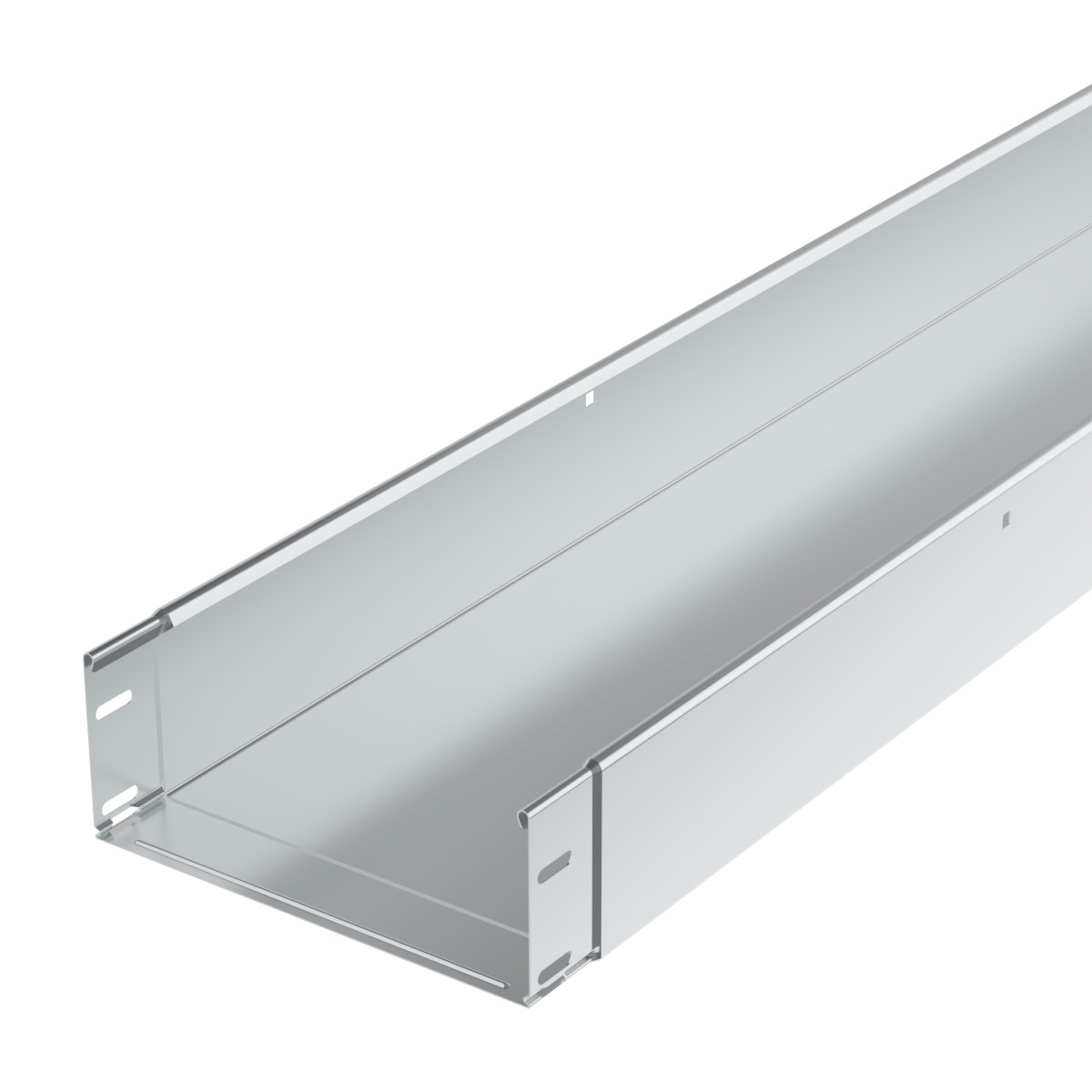

illustrative picture
To download 3D models, please login or create an account and request access.
Declaration REACH
| EAN code | 8595057694569 |
| Customs code | 73089059 |
| წონა | 4,2400 kg/m |
| Surface finish | Pre-Galvanized |
| Temperature resistance | -50 - 150 °C |
| Width | 250 mm |
| Height | 100 mm |
| Length | 2098 mm |
| Funcionality in fire | P90-R, E90, PS90 |
| Standards | ČSN EN 61537 |
| Fire resistance standards | ČSN 73 0895, DIN 4102-12, STN 92 0205 |
| Thickness of metal sheet | 1,25 mm |
| Quantity of screws for connecting | 5 |
| Max. load for fire resistance | 10 - 20 kg |
For securing the connection of the trays with the integrated coupling there are used the clamps made from spring steel KSV or the bolts NSM 6X10.
Note for system with maintained functionality in fire:
For securing the connection of the trays with the integrated coupling there are used the bolts NSM 6X10.
You find more information in the catalogue Systems with maintained functionality in fire.
