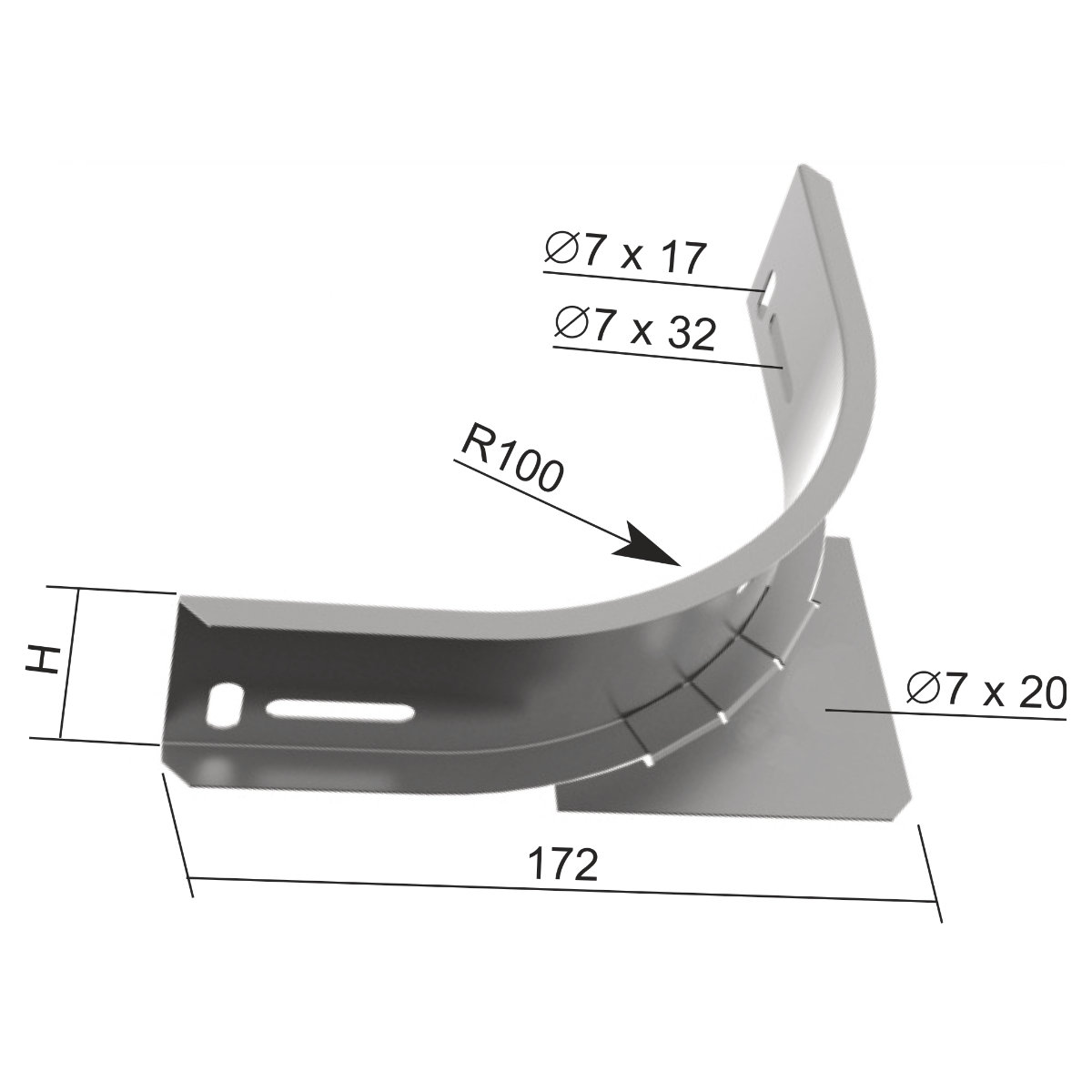

illustrative picture
To download 3D models, please login or create an account and request access.
NRD_M3_EN
| EAN code | 8595057667044 |
| Customs code | 73089059 |
| წონა | 0,4700 kg/pcs |
| Surface finish | Pre-Galvanized |
| Temperature resistance | -50 - 150 °C |
| Funcionality in fire | P90-R, E90, PS90 |
| Standards | ČSN EN 61537 |
| Fire resistance standards | ČSN 73 0895, DIN 4102-12, STN 92 0205 |
| Thickness of metal sheet | 0,7 mm |
| Quantity of screws for connecting | 4 |
| Dimension H | 102 mm |
| For width of cable tray | 125 - 500 mm |
| For height of cable tray | 100 mm |
The joining is performed using the bolts NSM 6X10. It serves for creating of additional deviation or unequal T-piece or cross. Always to be used in a pair.
Note for system with maintained functionality in fire:
You find more information in the catalogue Systems with maintained functionality in fire.
