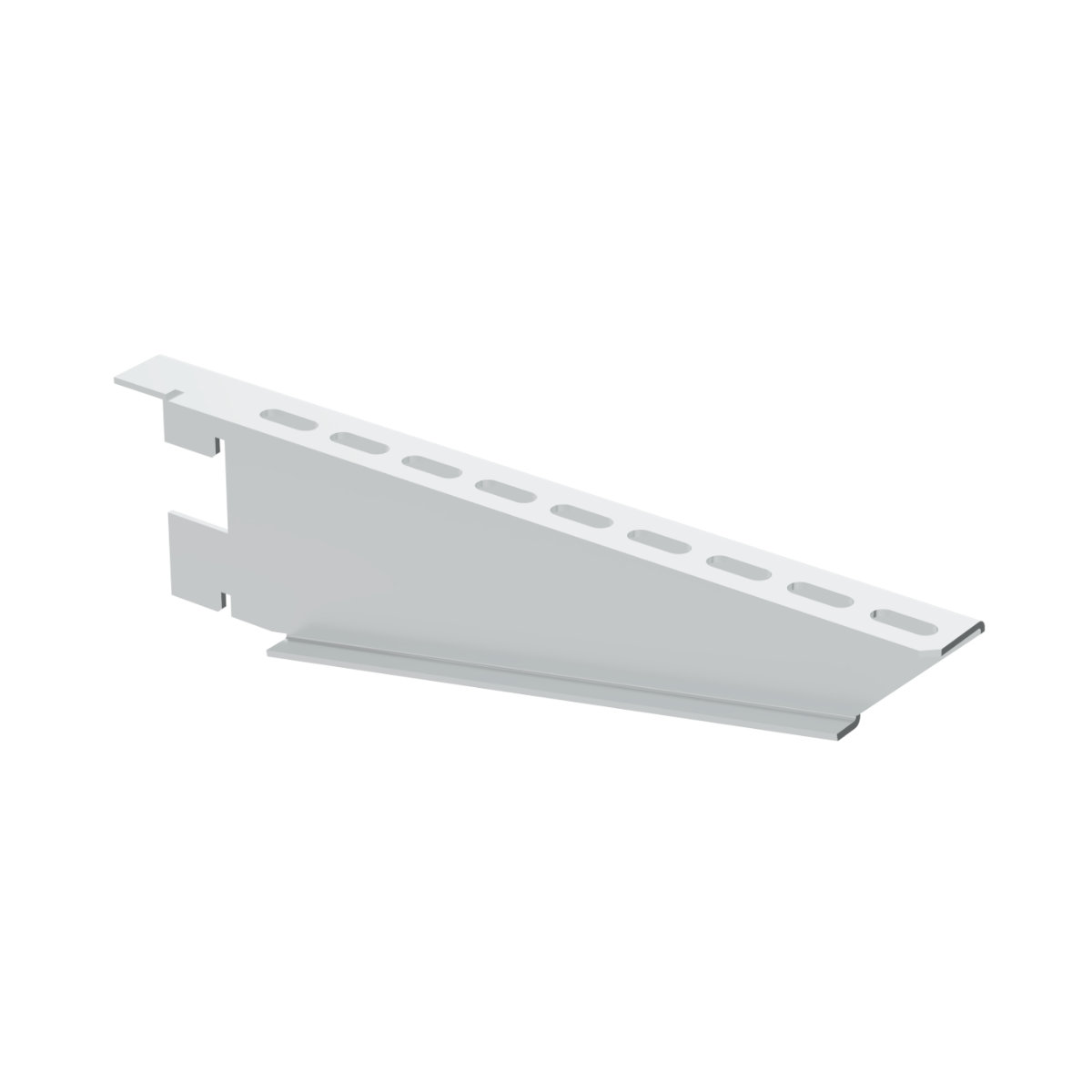

illustrative picture
To download 3D models, please login or create an account and request access.
NPR_EN
| EAN code | 8595057678668 |
| Customs code | 83024190 |
| წონა | 0,3450 kg/pcs |
| Surface finish | Pre-Galvanized |
| Temperature resistance | -50 - 150 °C |
| Thickness of metal sheet | 2 mm |
| Dimension A | 273 mm |
| Dimension B | 78 mm |
| For width of cable tray | 250 mm |
| For height of cable tray | 50 - 100 mm |
The tray is fixed to the support using 2 NSM 6X10 screws. When installed in an assembly profile, the support has to be secured by a safety lock NPPVZ.
