EAN code | 8595057639973 |
Customs code | 83024190 |
წონა | 1,6743 kg/pcs |
Surface finish | Hot Dip Galvanized |
Maximum load | 410 kg |
Dimension A | 620 mm |
Dimension B | 117 mm |
For width of cable tray | 600 mm |
For height of cable tray | 35 - 110 mm |

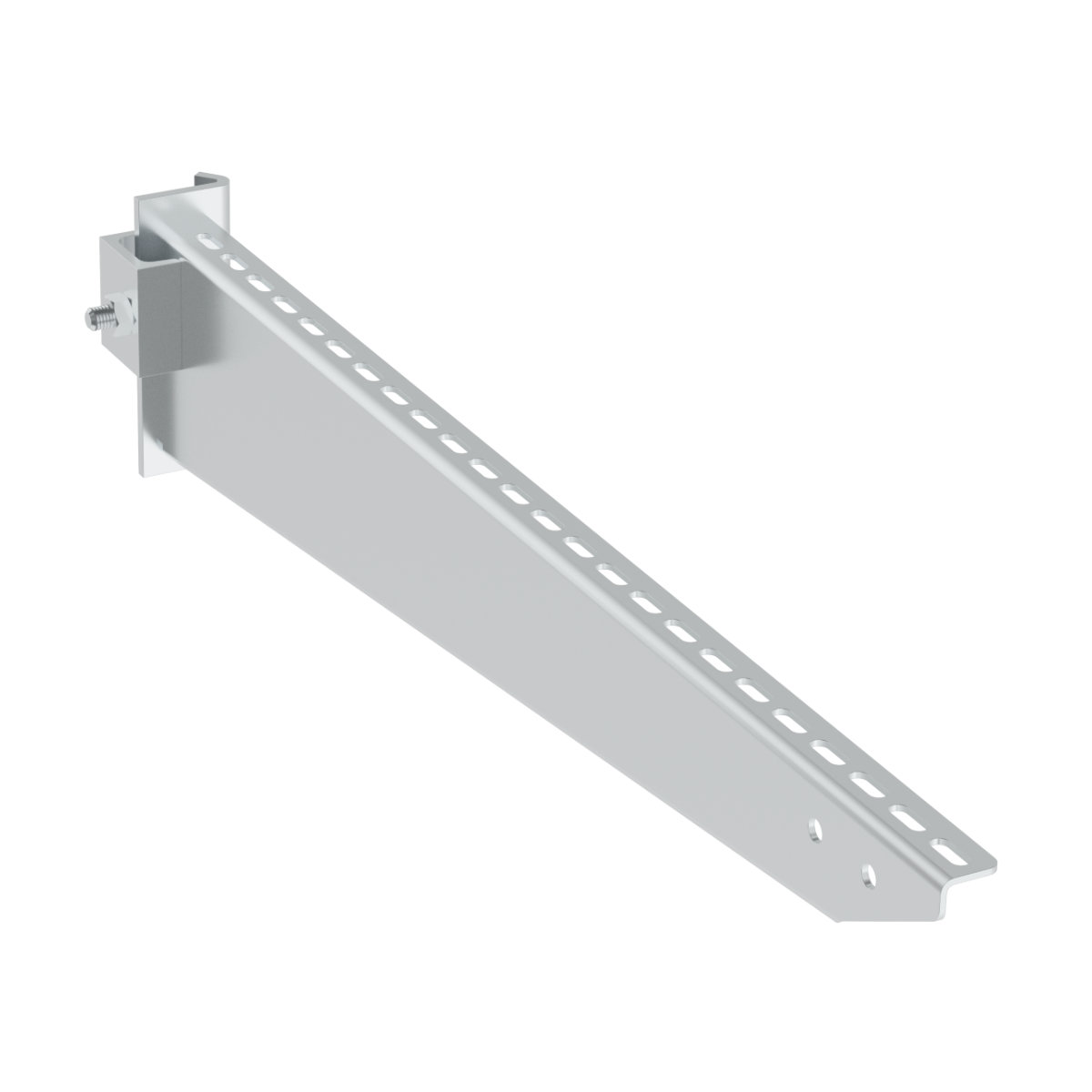

Set up for installation on the ceiling profile SPT and on Iprofile 80 mm. Tripping steel square, nut and crew S 8X20 are included. Cable tray attaching to the bracket is carried out by bolts NSM 6X10.
