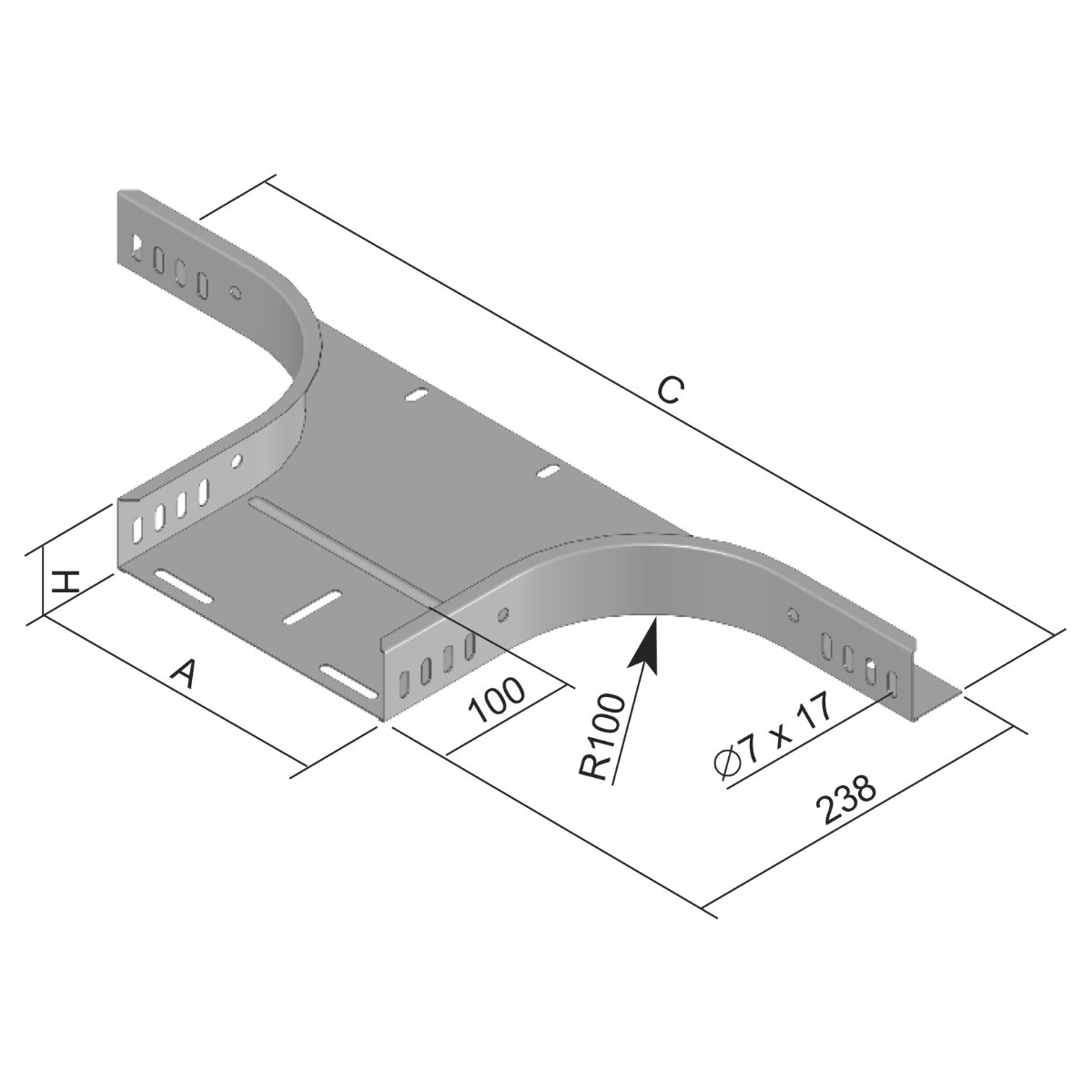

illustrative picture
To download 3D models, please login or create an account and request access.
OH_EN
| EAN code | 8595057628304 |
| Customs code | 73089059 |
| წონა | 0,6800 kg/pcs |
| Surface finish | Pre-Galvanized |
| Temperature resistance | -50 - 150 °C |
| Funcionality in fire | P90-R, E90, PS90 |
| Standards | ČSN EN 61537 |
| Fire resistance standards | ČSN 73 0895, DIN 4102-12, STN 92 0205 |
| Thickness of metal sheet | 0,8 mm |
| Quantity of screws for connecting | 8 |
| Dimension A | 78 mm |
| Dimension C | 478 mm |
| Dimension H | 65 mm |
| For width of cable tray | 75 mm |
| For height of cable tray | 60 mm |
To fix the connection use the bolt NSM 6X10. Horizontal branch is used for additional branching from the line.
Note for system with maintained functionality in fire:
You find more information in the catalogue Systems with maintained functionality in fire.
