OH_EN
| EAN code | 8595057658295 |
| Customs code | 73089059 |
| წონა | 2,5996 kg/pcs |
| Surface finish | Hot Dip Galvanized |
| Temperature resistance | -50 - 150 °C |
| Thickness of metal sheet | 1,2 mm |
| Quantity of screws for connecting | 18 |

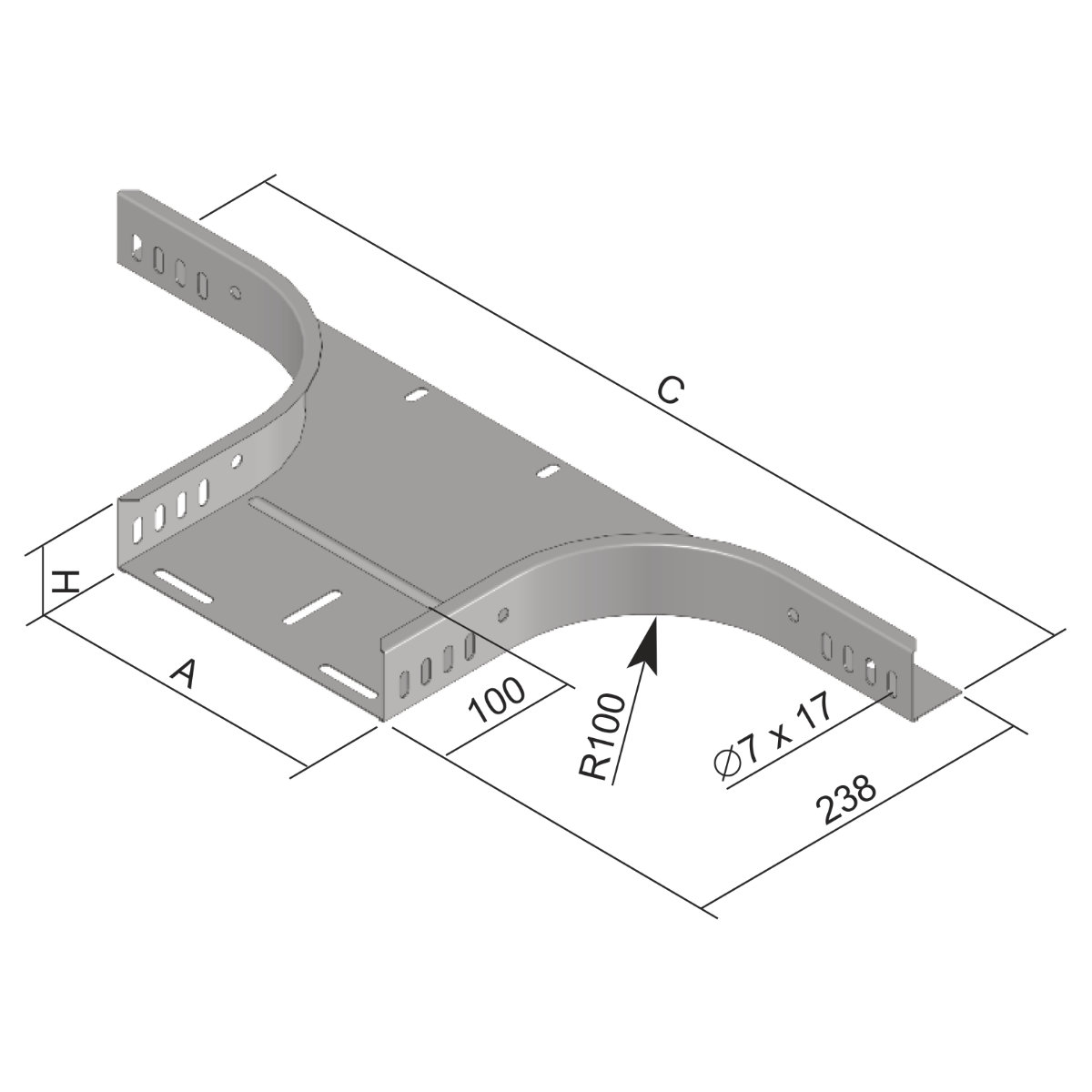

| Dimension A | 603 mm |
| Dimension C | 1003 mm |
| Dimension H | 115 mm |
| For width of cable tray | 600 mm |
| For height of cable tray | 110 mm |

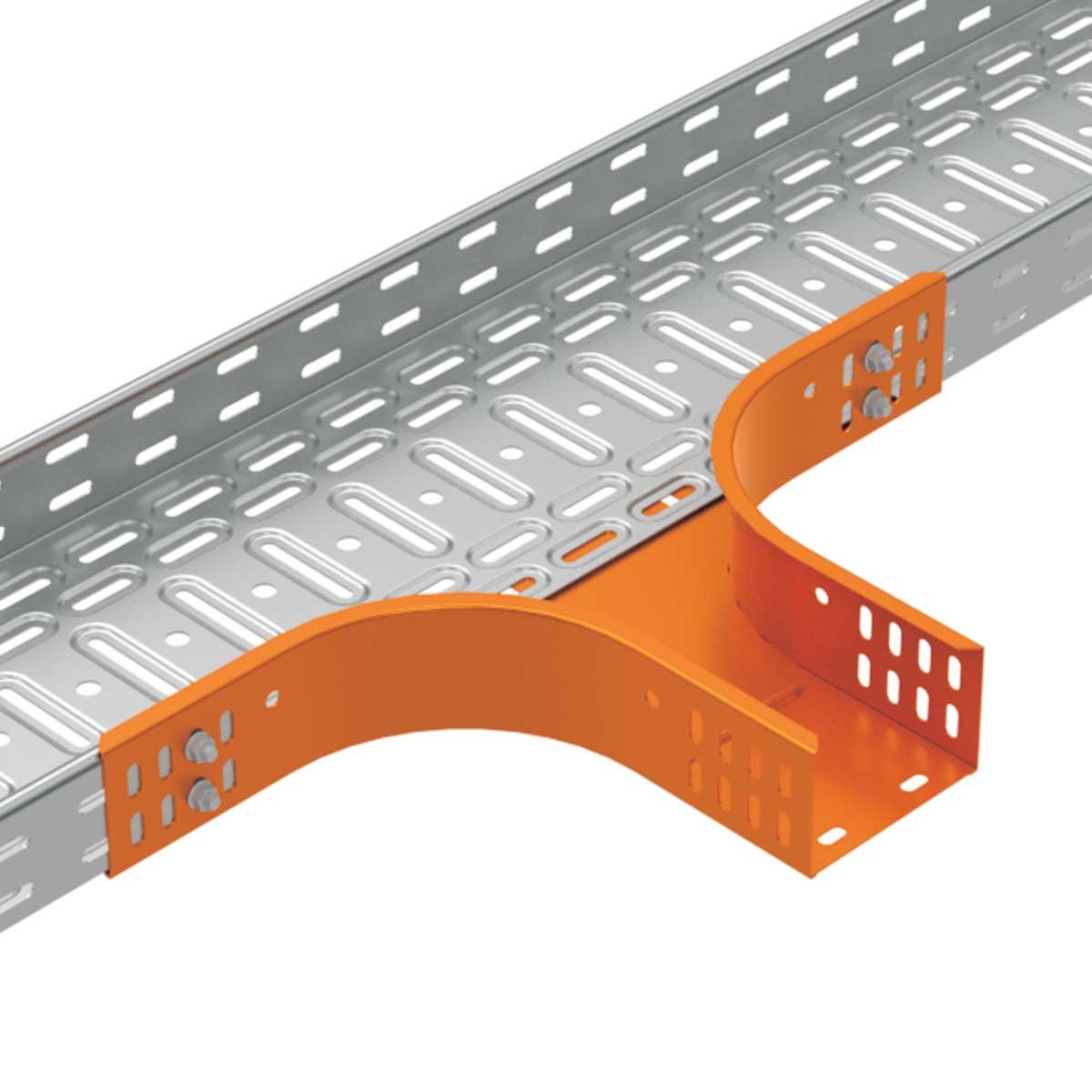

To fix the connection use the bolt NSM 6X10. Horizontal branch is used for additional branching from the line.
