illustrative picture
DSN_EN
| EAN code | 8595568916730 |
| Customs code | 83024190 |
| წონა | 0,8000 kg/pcs |
| Surface finish | Pre-Galvanized |
| Maximum load | 150 kg |
| Dimension A | 420 mm |
| Dimension B | 82 mm |
| For width of cable tray | 400 mm |
| For height of cable tray | 35 - 110 mm |

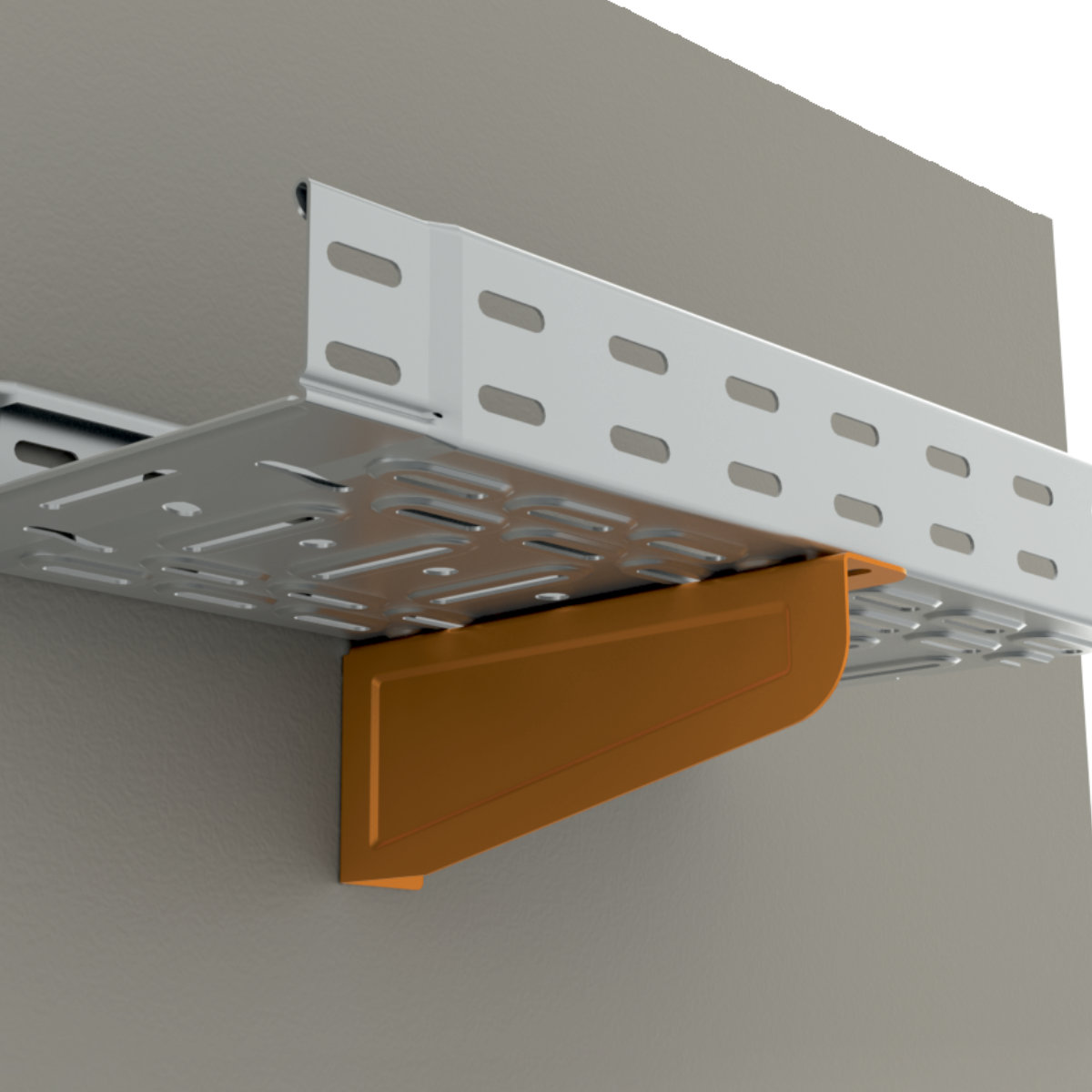

The holder is intended for fixing on the wall or on the ceiling profile. For mounting on the ceiling profile SPL, the sliding nuts PM 41 M 10 will be used together with bolt S 10X20. Fix to the celling profile SPLN, SPSN or SPU using bolts S 10X20, nuts M 10 and washer PD 10. Cable tray will be attached to the DL holder using the bolts NSM 6X10.
