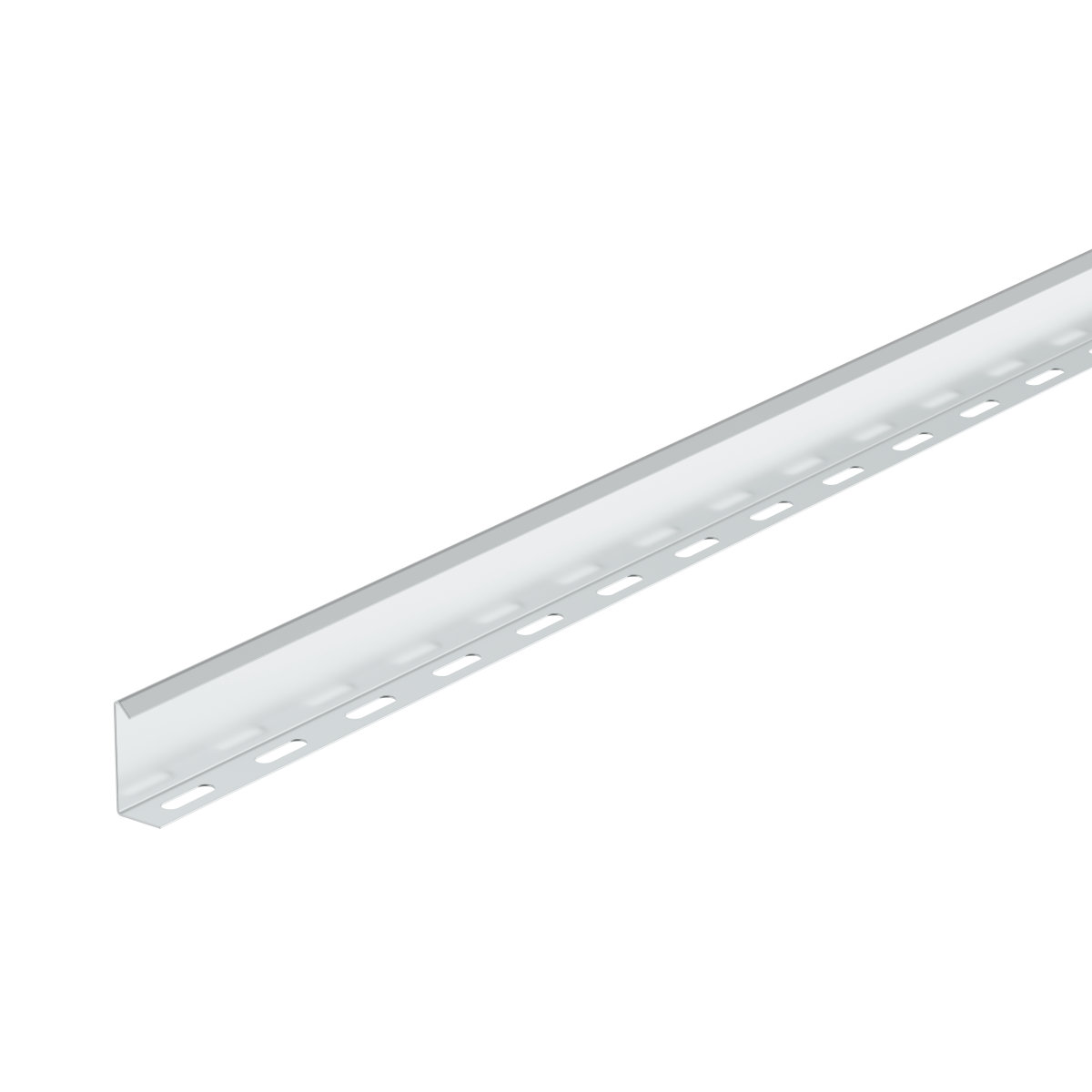

illustrative picture
To download 3D models, please login or create an account and request access.
NPZ_PO_EN
| EAN code | 8595057654198 |
| Customs code | 72169180 |
| წონა | 0,4700 kg/m |
| Surface finish | Pre-Galvanized |
| Temperature resistance | -50 - 150 °C |
| Length | 2000 mm |
| Standards | ČSN EN 61537 |
| Thickness of metal sheet | 0,8 mm |
| Quantity of screws for connecting | 4 |
| Dimension H | 44 mm |
| For width of cable tray | 62 - 125 mm |
| For height of cable tray | 50 mm |
The fixing of the partition is carried out by bolts NSM 6X10. The partition serves to spatial separation of cables and ducting of different networks and functions. As well as it serves to separation of particular kinds of ducting from the viewpoint of electric compatibility. For this purpose there is recommended to use the lid and by this to create the closed shielded space.
