| EAN code | 8595057637863 |
| Customs code | 73089059 |
| წონა | 9,4820 kg/pcs |
| Surface finish | Pre-Galvanized |
| Temperature resistance | -50 - 150 °C |
| Standards | ČSN EN 61537 |
| Thickness of metal sheet | 1,2 mm |
| Quantity of screws for connecting | 40 |

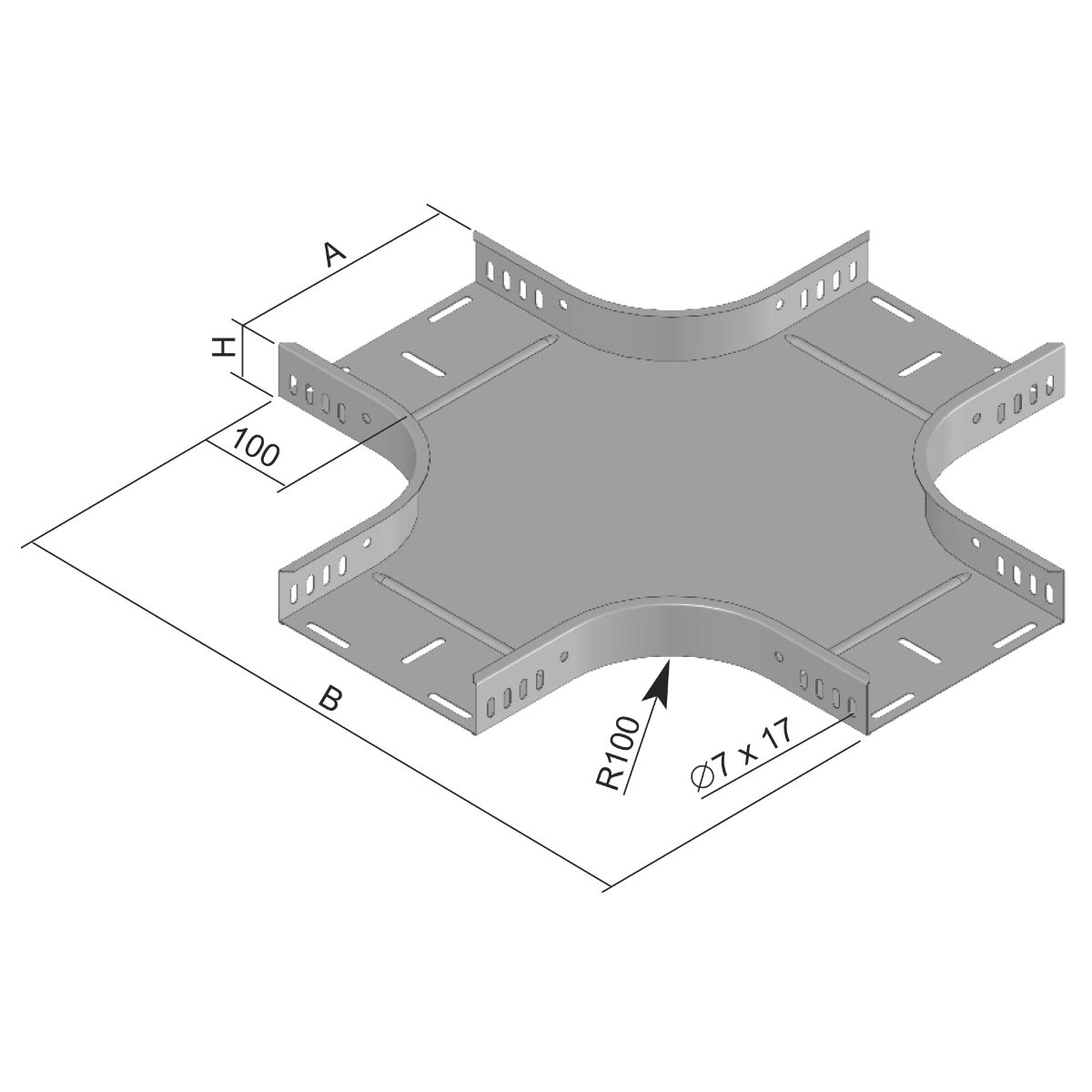

| Dimension A | 603 mm |
| Dimension B | 1003 mm |
| Dimension H | 90 mm |
| For width of cable tray | 600 mm |
| For height of cable tray | 85 mm |

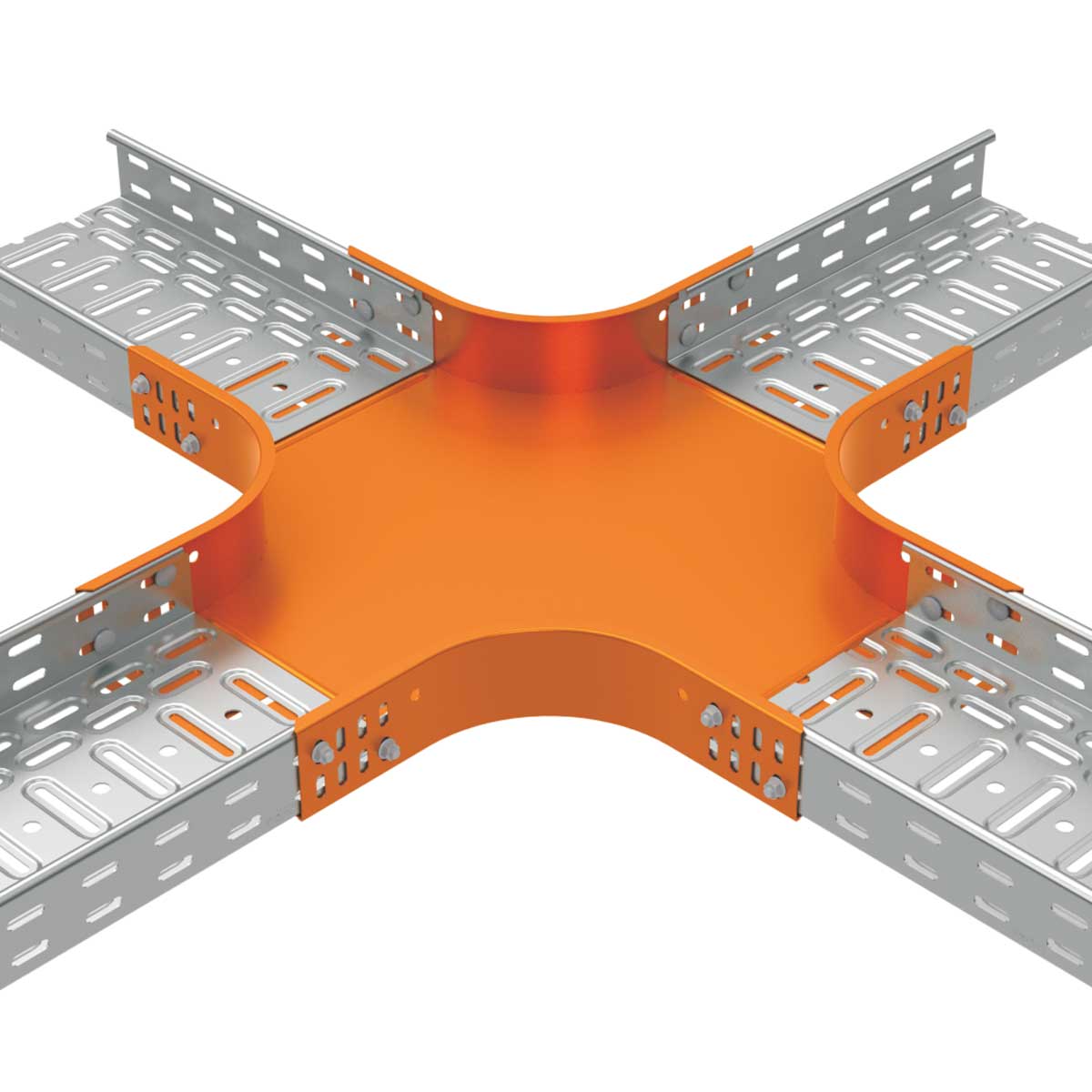

To fix the connection use the bolt NSM 6X10. Use horizontal branch OH or reduction piece SU to make unequal cross.
