| EAN code | 8595057662032 |
| Customs code | 73089059 |
| წონა | 2,6842 kg/pcs |
| Surface finish | Hot Dip Galvanized |
| Temperature resistance | -50 - 150 °C |
| Standards | ČSN EN 61537 |
| Thickness of metal sheet | 0,8 mm |
| Quantity of screws for connecting | 32 |

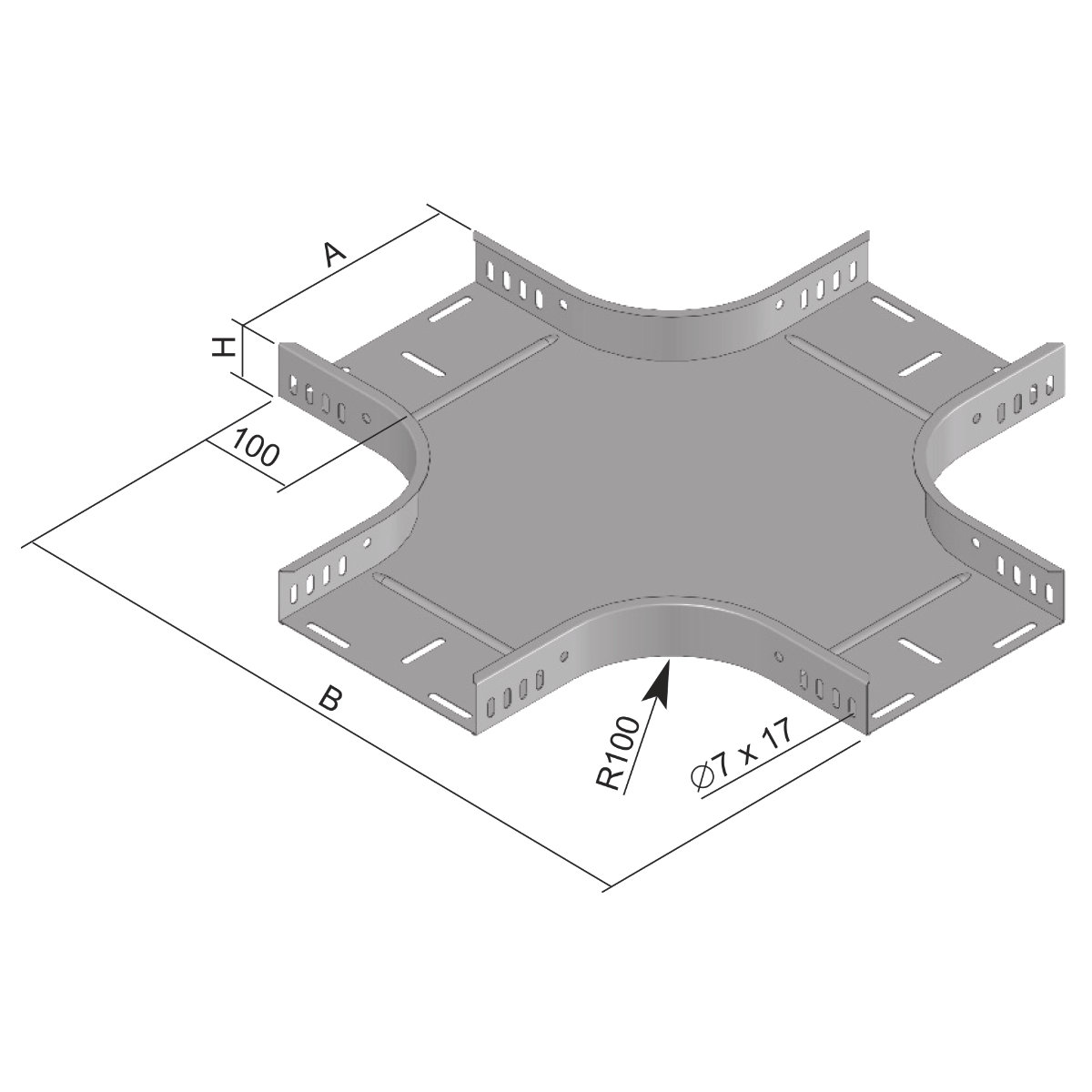

| Dimension A | 153 mm |
| Dimension B | 553 mm |
| Dimension H | 90 mm |
| For width of cable tray | 150 mm |
| For height of cable tray | 85 mm |
To fix the connection use the bolt NSM 6X10. Use horizontal branch OH or reduction piece SU to make unequal cross.
