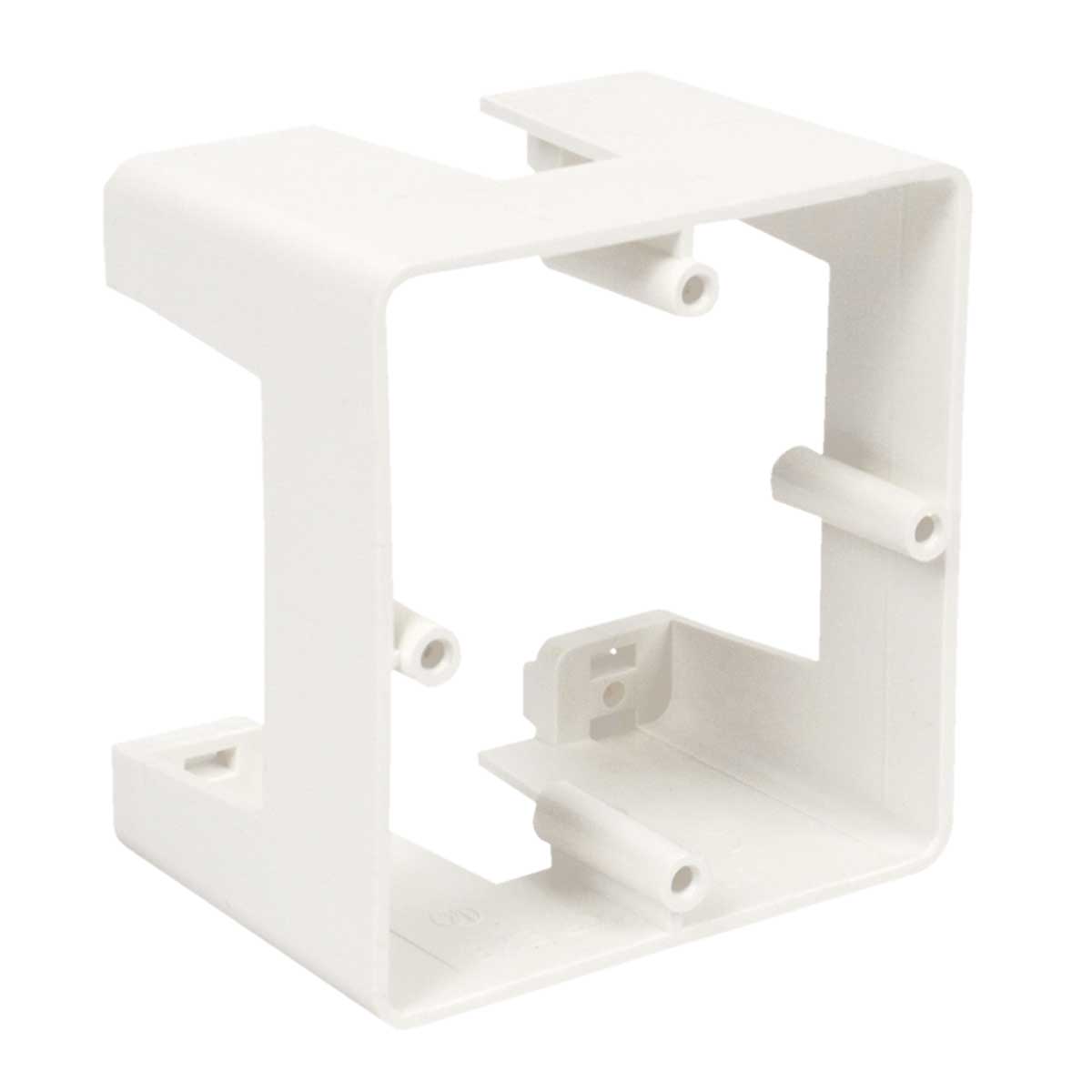

illustrative picture
To download 3D models, please login or create an account and request access.
Conformity declaration
| EAN code | 8595057621732 |
| Customs code | 39259080 |
| წონა | 0,0340 kg/pcs |
| Colour | white |
| Material | PVC |
| Self-extinguishing | 30 s |
| Rated voltage | <= 400 V |
| Rated current | <= 16 A |
| Temperature resistance | -5 - 60 °C |
| Width | 71 mm |
| Height | 75 mm |
| Depth | 55 mm |
| Fire reaction class of underlying material | A1 - D |
| Spacing when joining 2 boxes | 71 mm |
| Allows to install double-socket | yes |
Allows inserting a shielding canal SK 40X… After removing the members for instrument screws (in the vertical axis), you can mount the double-socket. The snap-in feet have holes for 2.9x13 screws with a semicircular head (2.9x13V_ZNCR) for efficient securing of the box against unnecessary moving.
