KP68_EN
| EAN code | 8595568910592 |
| Customs code | 39259080 |
| წონა | 0,0260 kg/pcs |
| Material | PVC |
| Leadless material | yes |
| Self-extinguishing | 30 s |
| Rated voltage | <= 400 V |
| Rated current | <= 16 A |
| Temperature resistance | -5 - 60 °C |
| Flaming loop test | 850 °C |
| Diameter | 74 mm |
| Depth | 43 mm |
| Milled (drilled) hole diameter | 80 mm |
| Fire reaction class of underlying material | A1 - D |
| Spacing when joining 2 boxes | 71 mm |
| Allows to install double-socket | yes |
| Standards | ČSN EN 60 670-1 |
| Package description box freely in the cardboard, tool screws not mounted on the boxes | |

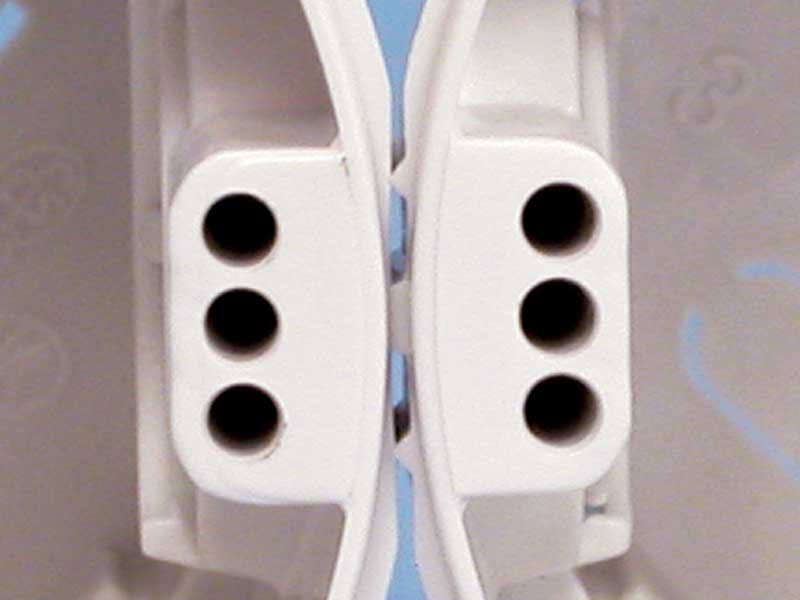

Possibility to join into and continuous series with and spacing of 71 mm. Connection of up to three boxes in and row is recommended. Boxes can be joined with boxes KU 68-1901, KP 68/2 and KPR 68. Universal box for most devices.
