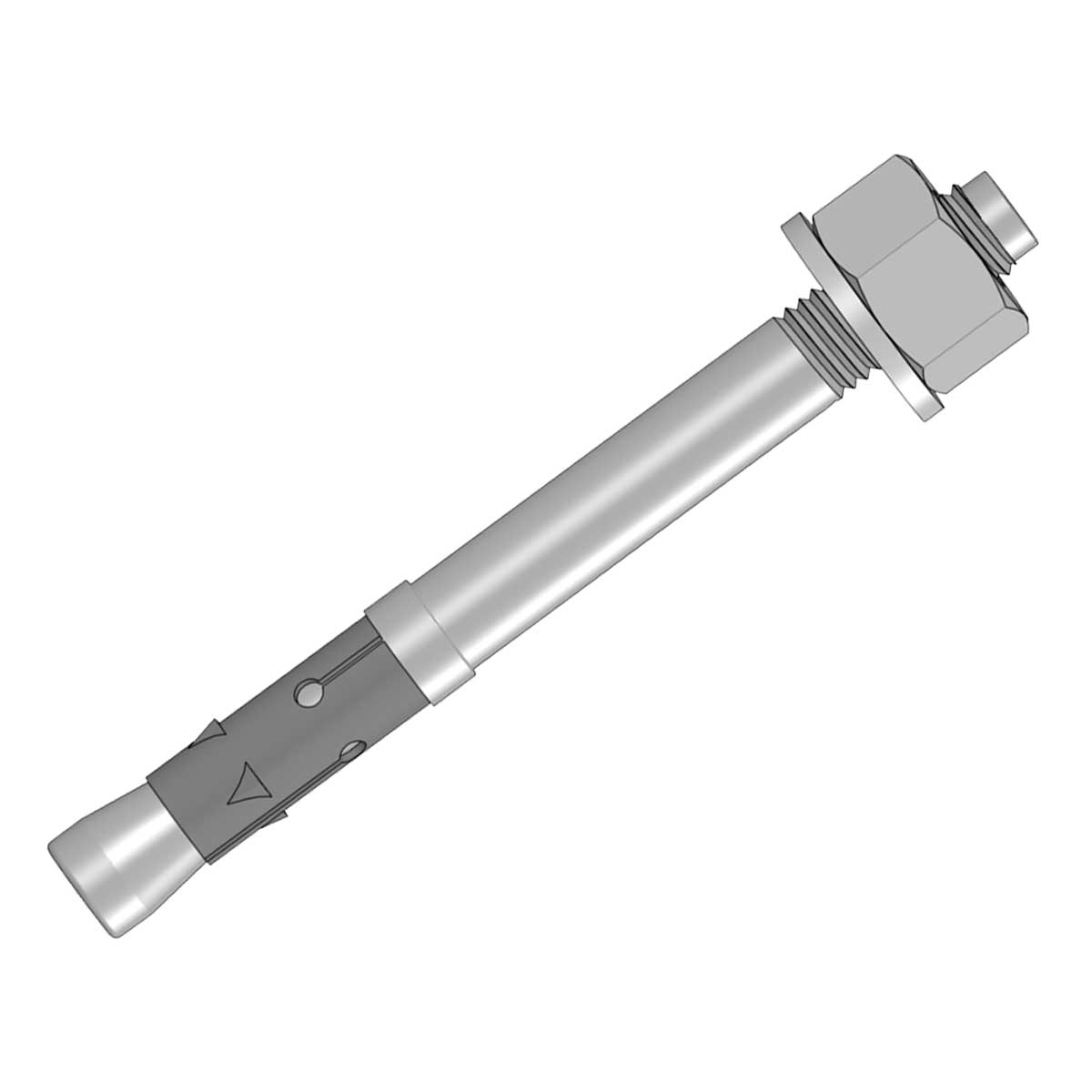

illustrative picture
Declaration REACH
| EAN code | 8595568929631 |
| Customs code | 73269098 |
| წონა | 0,0340 kg/pcs |
| Material | steel |
| Surface finish | Non electrolytic plating Geomet |
| Funcionality in fire | P90-R, E90, PS90 |
| Thread type | M8x58 |
| Fire resistance standards | ČSN 73 0895, DIN 4102-12, STN 92 0205 |
| Anchor depth | 44 mm |
| Max. thickness of fastening material | 30 mm |
| Minimum hole depth | 65 mm |
| Effective anchor depth | 85 mm |
| Hole diameter | 8 mm |
| Total length of anchor | 95 mm |
| Spanner size | 13 |
| Maximum thickness of the material being attached | 30 mm |
The anchors are designed for drag and thus fastening the structural elements to the underlying material (non-cracked concrete C20/25 to C50/60), a natural stone with a solid structure. The loading capacity of the anchors depends on the quality of the base material (concrete, solid brickwork).
Note for system with maintained functionality in fire:
Anchors serve for the attaching of construction elements to the base material (concrete, stone).
You find more information in the catalogue Systems with maintained functionality in fire.
