NPS_EN
| EAN code | 8595057696280 |
| Customs code | 83024190 |
| წონა | 0,4540 kg/pcs |
| Surface finish | Hot Dip Galvanized |
| Temperature resistance | -50 - 150 °C |
| Funcionality in fire | P90-R, E90, PS90 |
| Fire resistance standards | ČSN 73 0895, DIN 4102-12, STN 92 0205 |
| Thickness of metal sheet | 2 mm |
| Maximum load | 200 kg |

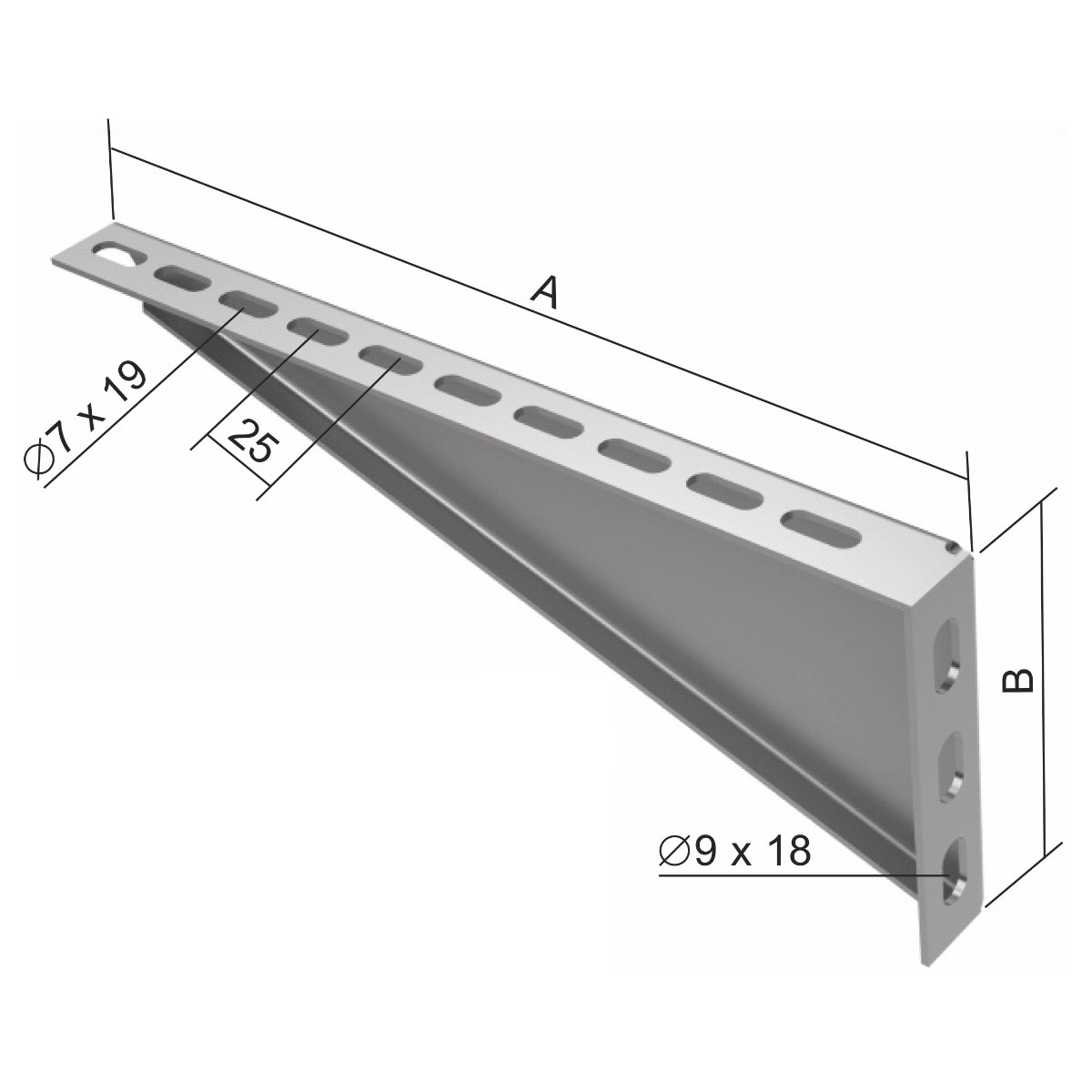

| Dimension A | 270 mm |
| Dimension B | 100 mm |
| For width of cable tray | 250 mm |
| For height of cable tray | 50 - 100 mm |

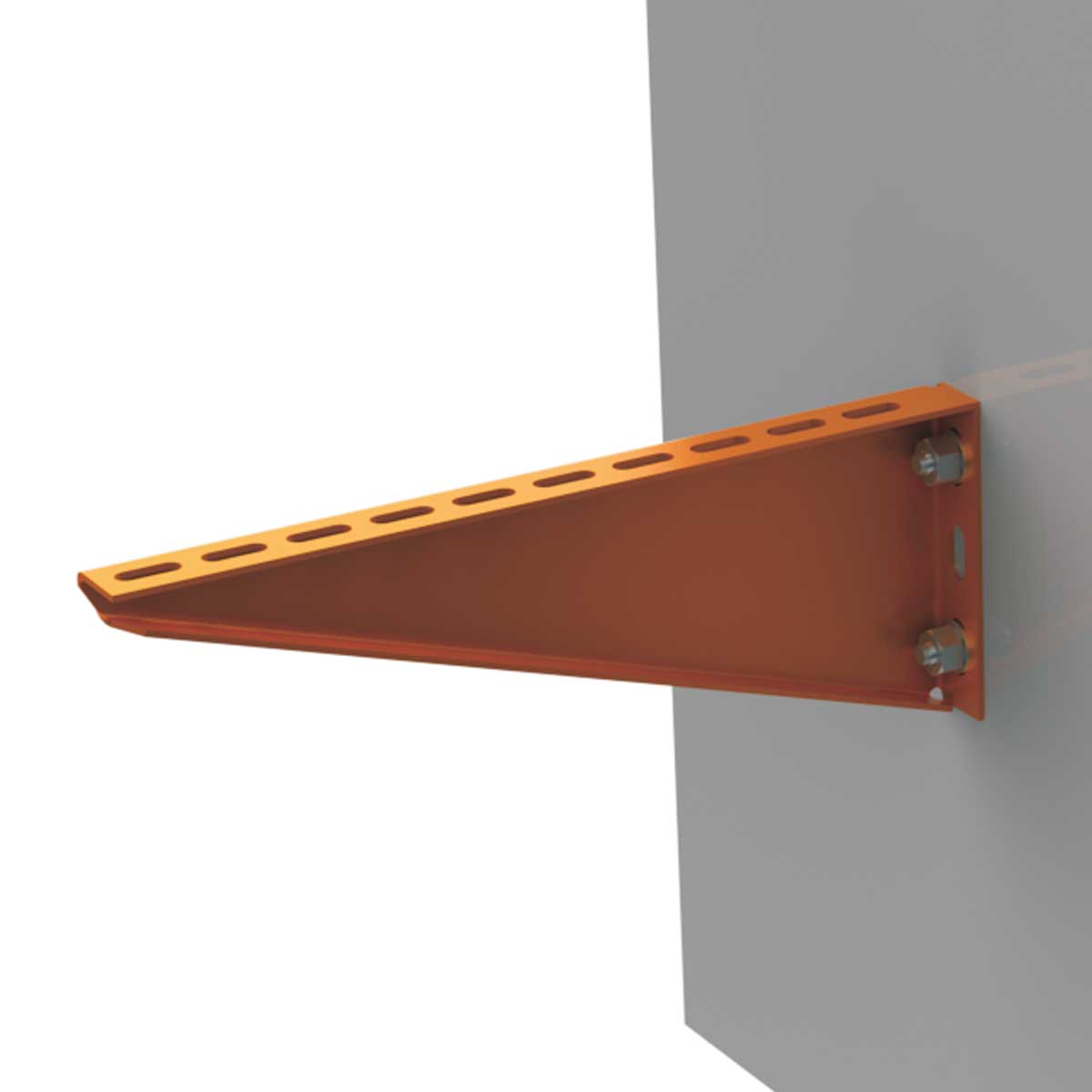

The tray is fixed to the support using 2 NSM 6X10 screws. The support is fixed to the wall using 2 Ø 8 mm anchors.
Note for system with maintained functionality in fire:
You find more information in the catalogue Systems with maintained functionality in fire.
