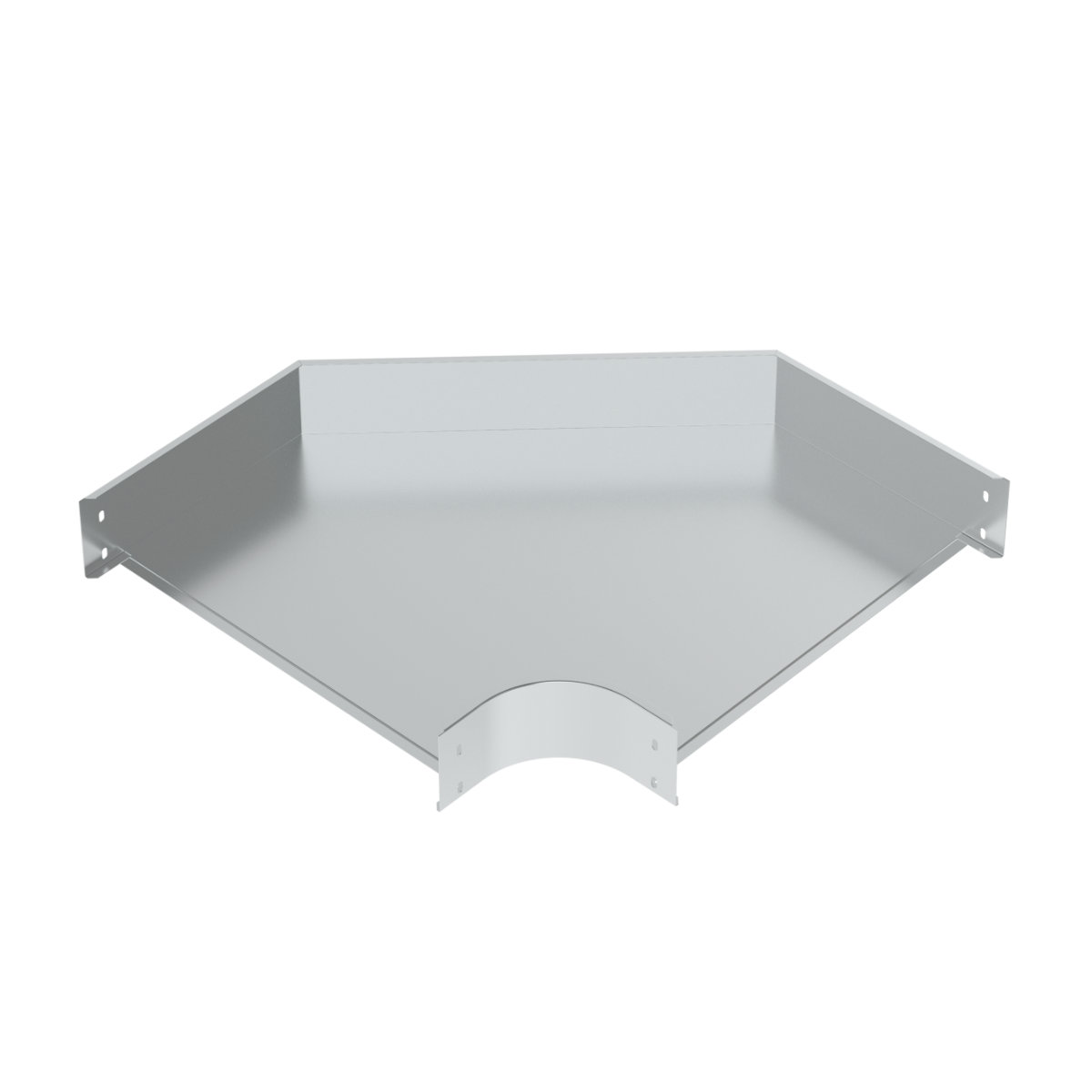

illustrative picture
To download 3D models, please login or create an account and request access.
NIXO90_EN
| EAN code | 8595057671492 |
| Customs code | 73089059 |
| წონა | 3,0700 kg/pcs |
| Surface finish | Stainless steel AISI 304 |
| Temperature resistance | -50 - 150 °C |
| Standards | ČSN EN 61537 |
| Thickness of metal sheet | 0,8 mm |
| Quantity of screws for connecting | 8 |
| Dimension A | 503 mm |
| Dimension B | 663 mm |
| Dimension H | 102 mm |
| For width of cable tray | 500 mm |
| For height of cable tray | 100 mm |
The arc is used to create a 90° branch in a horizontal direction. The connection is performed by direct sliding of the cable tray into the shaped piece and subsequent securing with bolts NIXSM 6X10. On the NIXO 90X100X500 arc the outer right angle of the sides is replaced by a chamfer.
