EAN code | 8595057671515 |
Customs code | 73089059 |
წონა | 0,6820 kg/pcs |
Surface finish | Stainless steel AISI 304 |
Temperature resistance | -50 - 150 °C |
Standards | ČSN EN 61537 |
Thickness of metal sheet | 0,8 mm |
Quantity of screws for connecting | 4 |
Dimension A | 128 mm |
Dimension B | 288 mm |
Dimension H | 52 mm |
For width of cable tray | 125 mm |
For height of cable tray | 50 mm |

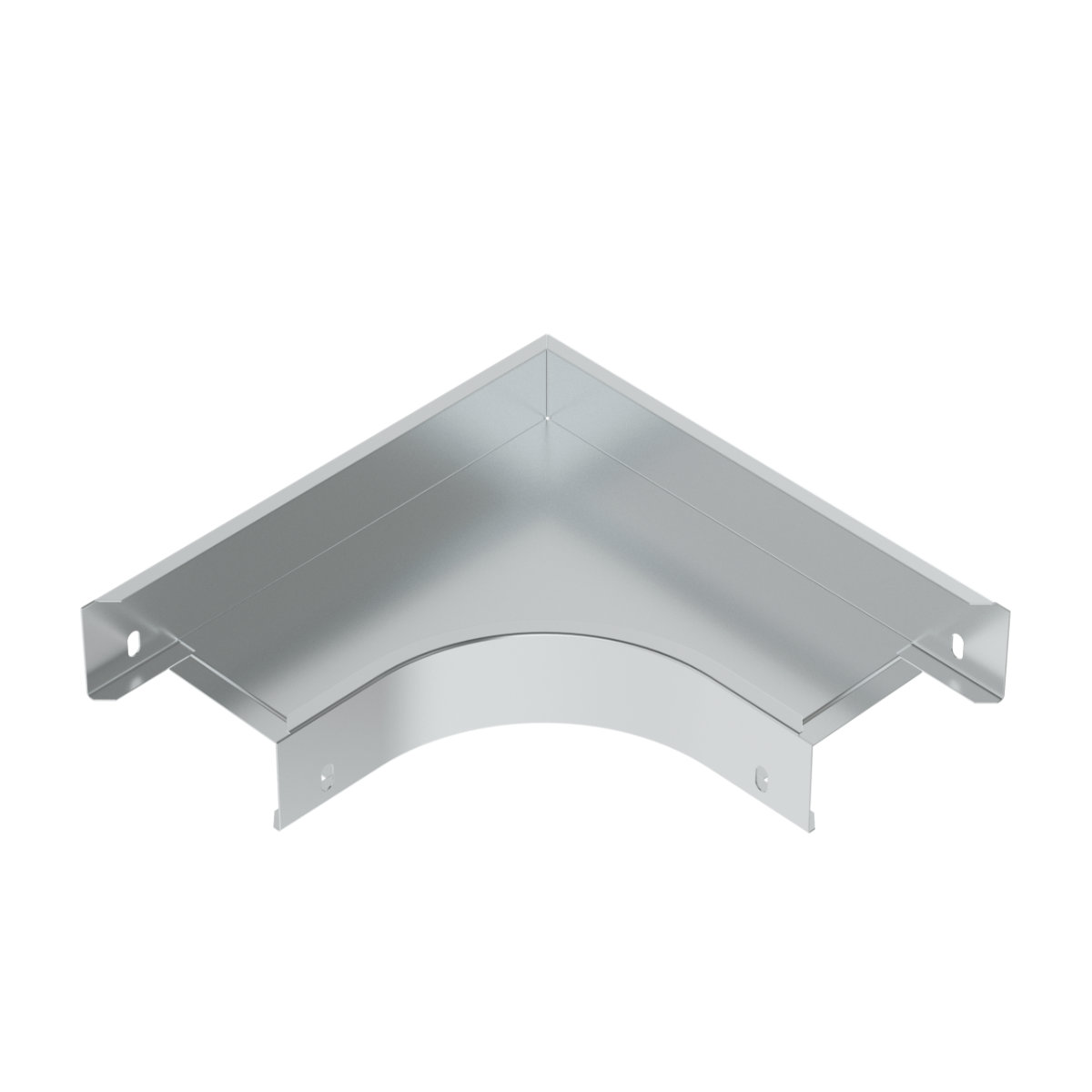

The arc is used to create a 90° branch in a horizontal direction. The connection is performed by direct sliding of the cable tray into the shaped piece and subsequent securing with bolts NIXSM 6X10.
