ZVNE_EN
| EAN code | 8595057662469 |
| Customs code | 73269098 |
| წონა | 0,2400 kg/pcs |
| Surface finish | Hot Dip Galvanized |
| Temperature resistance | -50 - 150 °C |
| Standards | ČSN EN 61537 |
| Thickness of metal sheet | 2 mm |
| Maximum load | 90 kg |

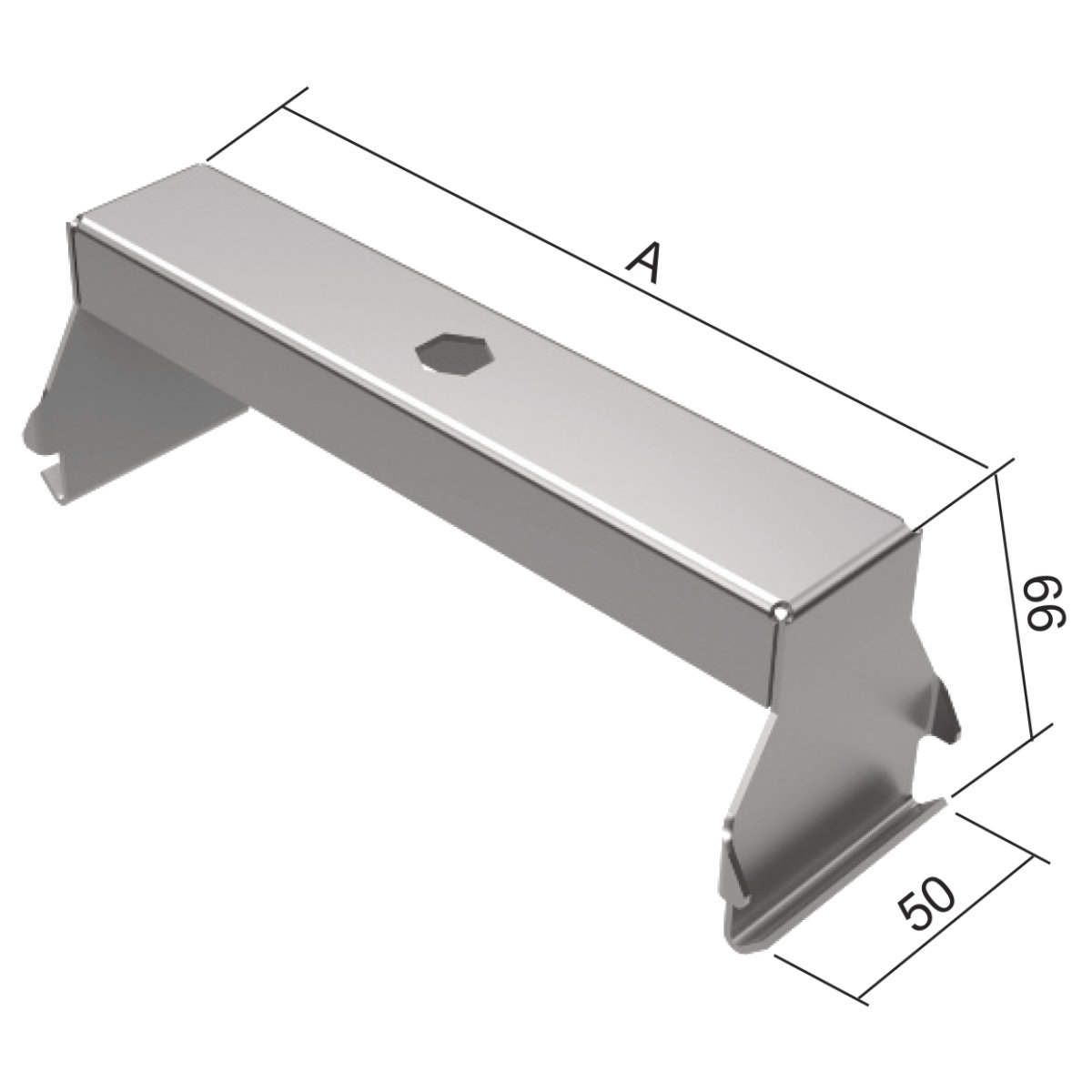

| Dimension A | 180 mm |
| For width of cable tray | 200 mm |
| For height of cable tray | 35 - 110 mm |

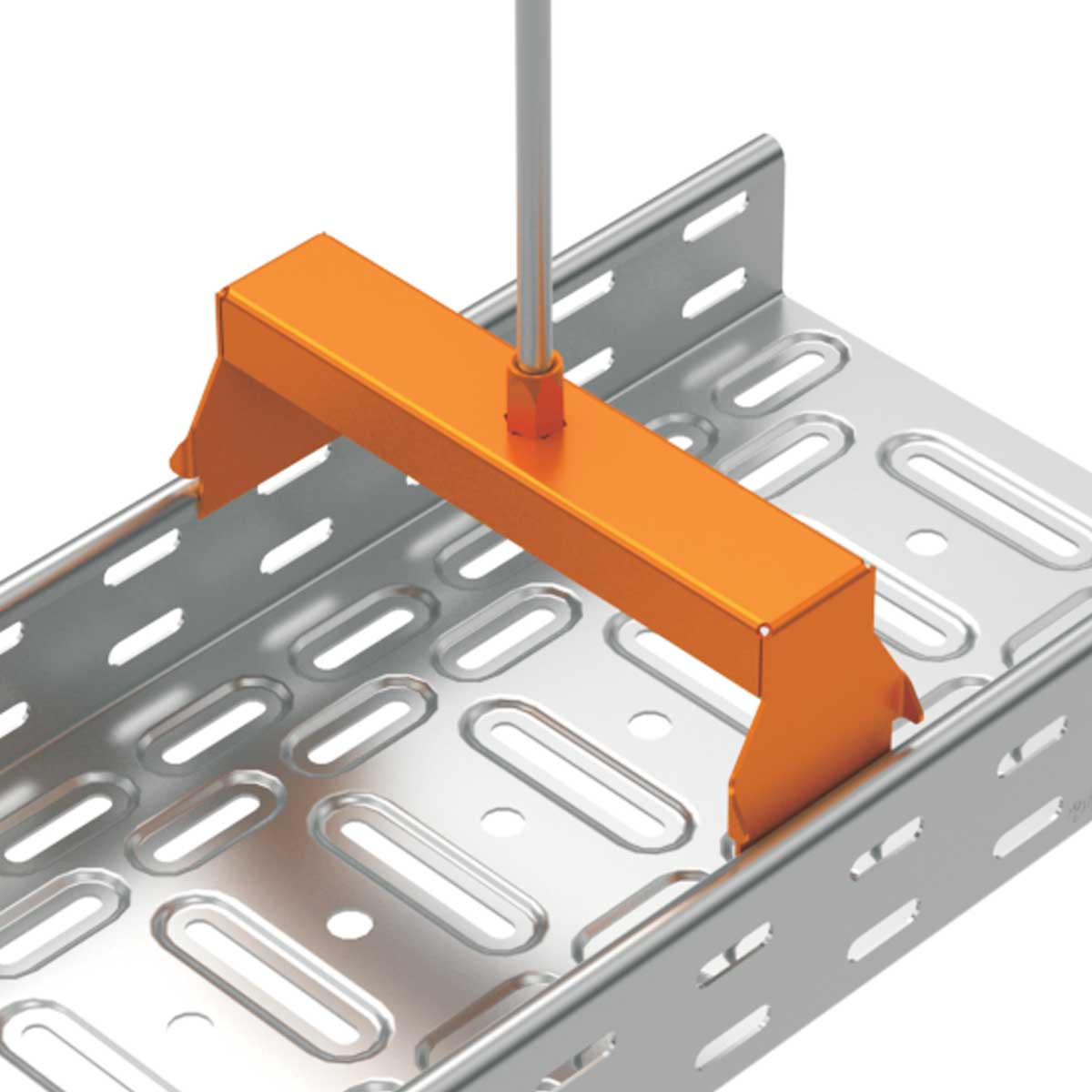

It is mounted using the threaded rod ZT 8 or ZT 10 and nut MN. The dimension of the nut is chosen by the diameter of the threaded rod. The nuts MN are not part of the hanger. The hanger is suitable for hanging cables with cross piece.
