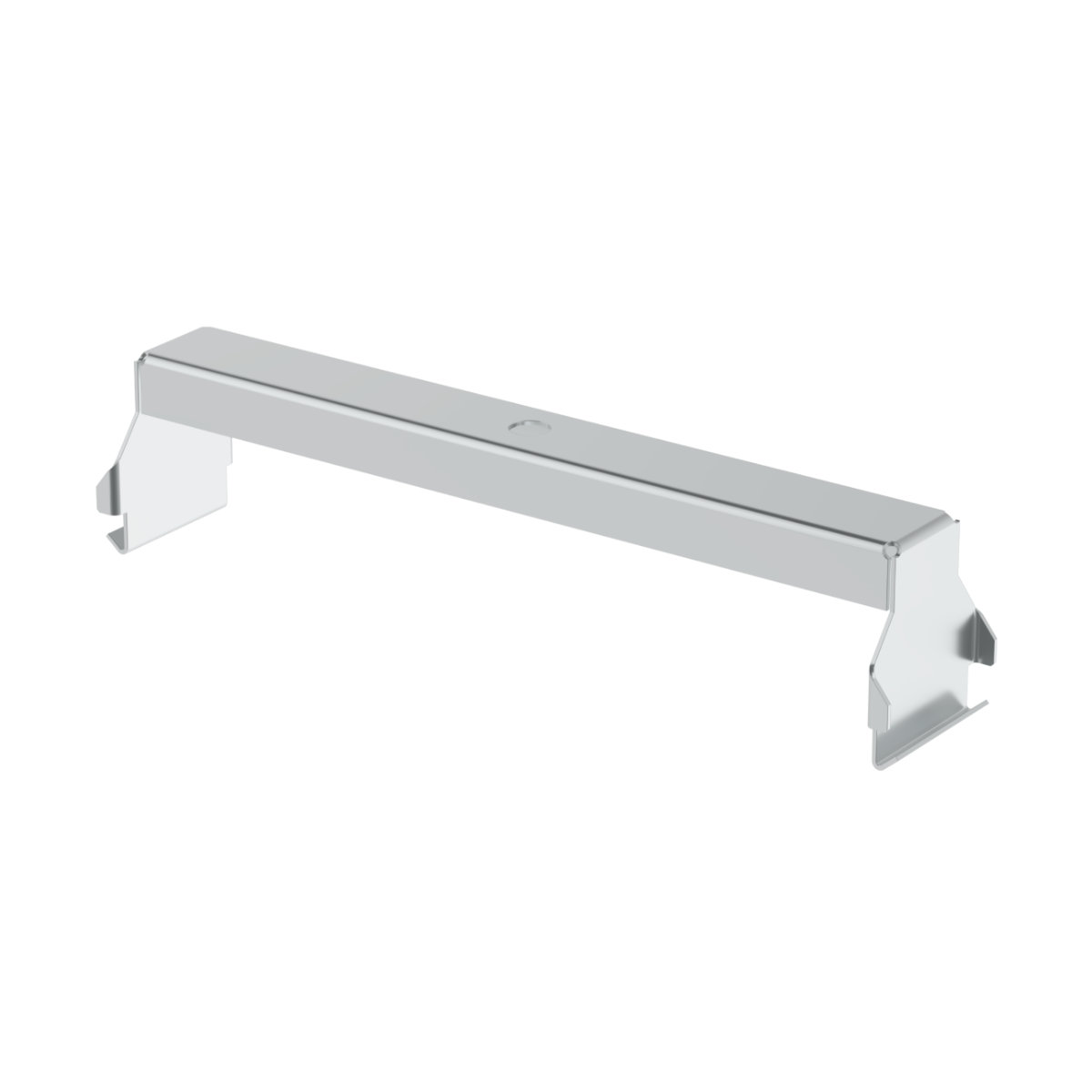

illustrative picture
To download 3D models, please login or create an account and request access.
ZVNE_EN
| EAN code | 8595057639553 |
| Customs code | 73269098 |
| წონა | 0,3100 kg/pcs |
| Surface finish | Pre-Galvanized |
| Temperature resistance | -50 - 150 °C |
| Standards | ČSN EN 61537 |
| Thickness of metal sheet | 2 mm |
| Maximum load | 90 kg |
| Dimension A | 280 mm |
| For width of cable tray | 300 mm |
| For height of cable tray | 35 - 110 mm |
It is mounted using the threaded rod ZT 8 or ZT 10 and nut MN. The dimension of the nut is chosen by the diameter of the threaded rod. The nuts MN are not part of the hanger. The hanger is suitable for hanging cables with cross piece.
