SVD_PO_EN
| EAN code | 8595568931214 |
| Customs code | 73181499 |
| წონა | 0,0047 kg/pcs |
| Material | steel |
| Surface finish | ZNCR |
| Length | 47 mm |
| Funcionality in fire | P90-R, E90, PS90 |
| Thread type | M6 |

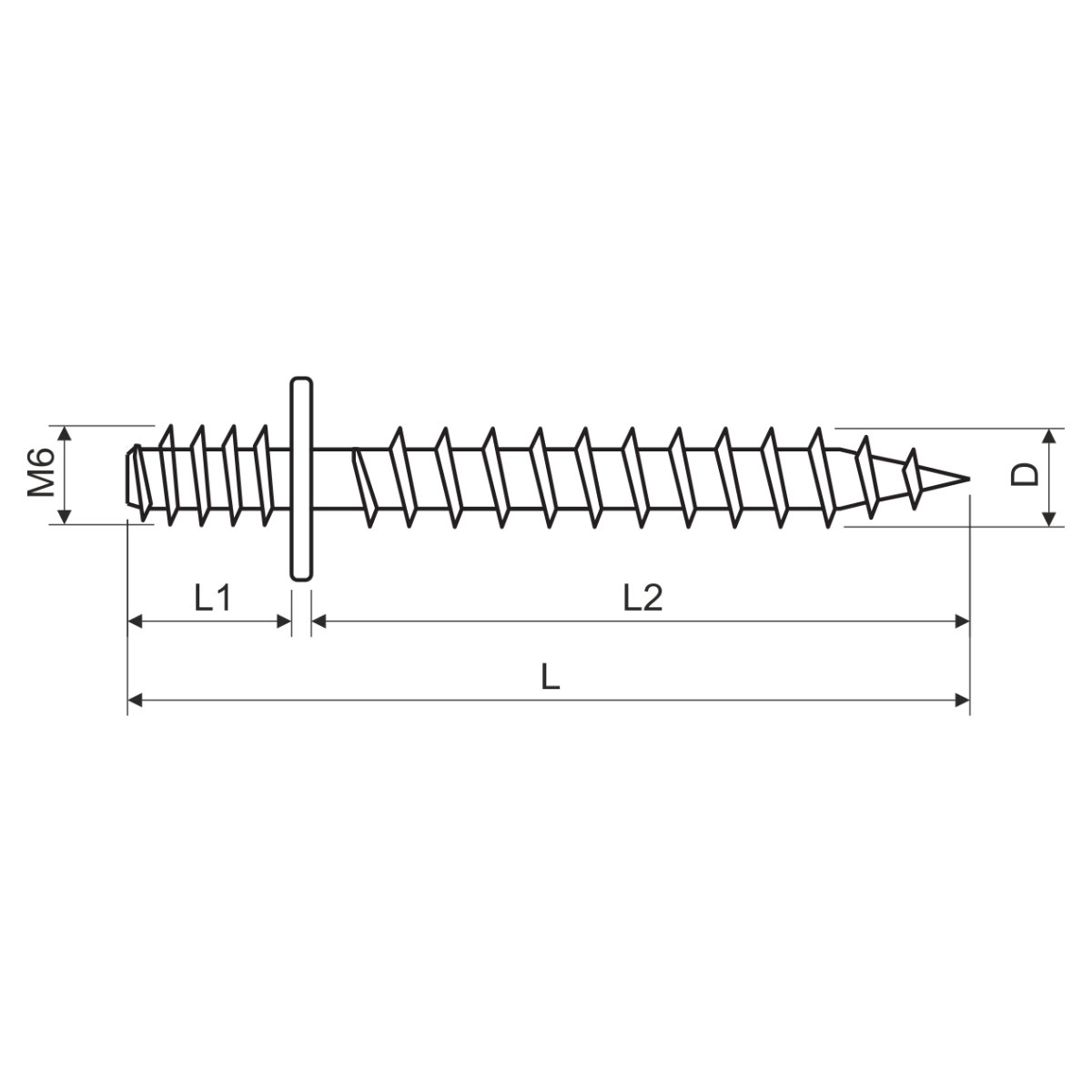

Threaded screw with external thread M6. Combined with the DOBRMAN clamp, it forms a fire resistant route. Designed for anchoring to concrete. When using an anchor KHP can be anchored to the porous concrete.
Note for system with maintained functionality in fire:
You find more information in the catalogue Systems with maintained functionality in fire.
