illustrative picture
To download 3D models, please login or create an account and request access.
K_EN
| EAN code | 8595057629998 |
| Customs code | 73269098 |
| წონა | 0,1180 kg/pcs |
| Surface finish | Pre-Galvanized |
| Temperature resistance | -50 - 150 °C |
| Funcionality in fire | P90-R, E90, PS90 |
| Standards | ČSN EN 61537 |
| Fire resistance standards | ČSN 73 0895, DIN 4102-12, STN 92 0205 |
| Thickness of metal sheet | 1 mm |
| Quantity of screws for connecting | 4 |

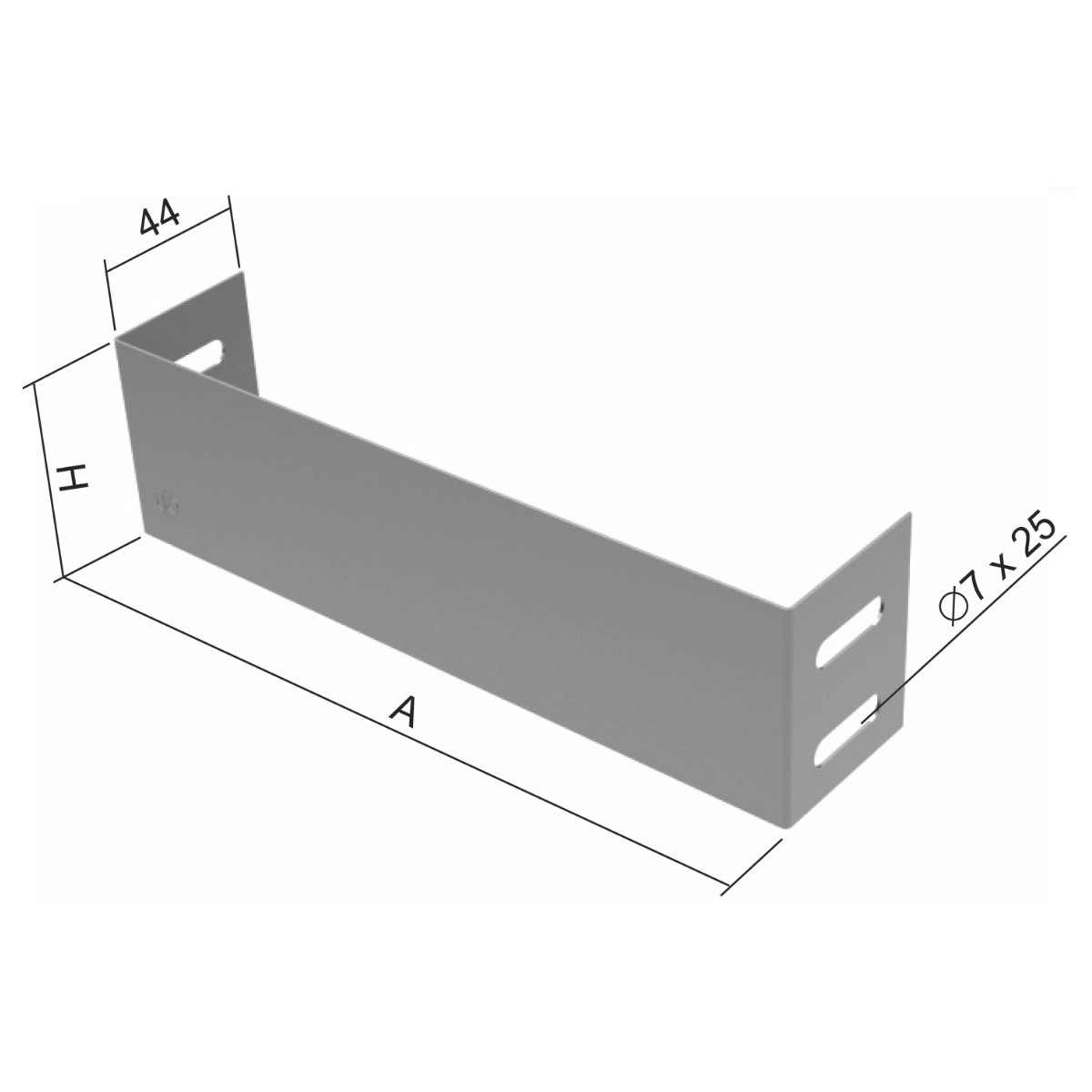

| Dimension A | 197 mm |
| Dimension H | 55 mm |
| For width of cable tray | 200 mm |
| For height of cable tray | 60 mm |

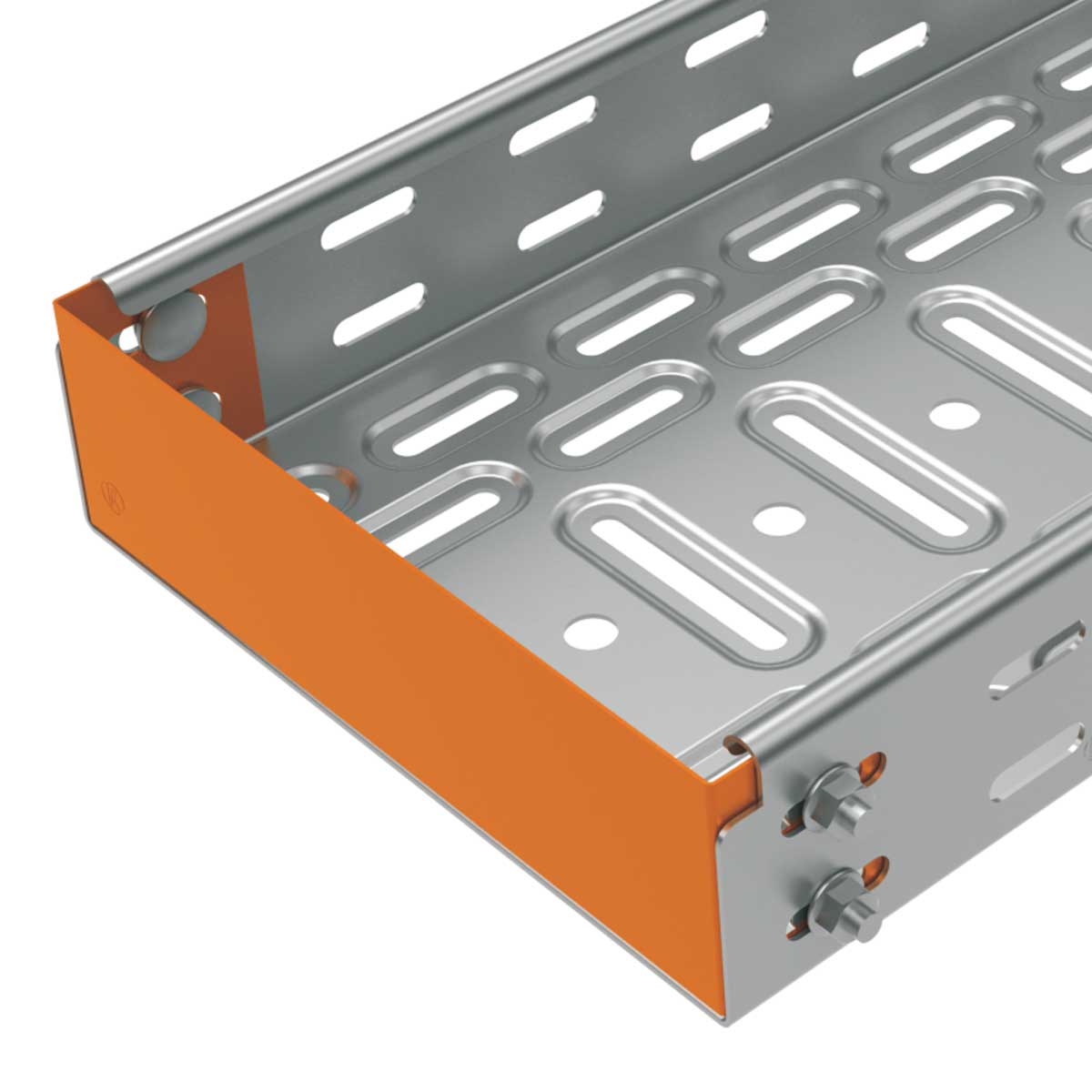

The fastening of the joint is performed with the bolts NSM 6X10.
Note for system with maintained functionality in fire:
You find more information in the catalogue Systems with maintained functionality in fire.
